DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IND108XWDC DC CONVERTER 3-18V 108W |
82 | - |
|
Технический лист |
Hornet (108W) | 9-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 19.2V | 28.8V | 3 ~ 18V | - | - | - | 12A | 108 W | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 105°C (With Derating) | 95.5% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm) | 9-SMD | Enable, Active Low | - | - |
|
PT4314ADC DC CONVERTER +/-24V 6W |
0 | - |
|
Технический лист |
PT4310 (6W) | 18-DIP Module, 9 Leads | Tray | Obsolete | Isolated Module | 2 | 38V | 75V | 24V | -24V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT4313ADC DC CONVERTER +/-12V 6W |
0 | - |
|
Технический лист |
PT4310 (6W) | 18-DIP Module, 9 Leads | Tray | Obsolete | Isolated Module | 2 | 38V | 75V | 12V | -12V | - | - | 500mA, 500mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | - |
|
AM10E-2409SZDC DC CONVERTER 9V 10W |
10 | - |
|
Технический лист |
AM10E-Z (10W) | - | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 1.111A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, cULus, cURus | - |
|
JCA0305S03DC DC CONVERTER 3.3V 3W |
17 | - |
|
Технический лист |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 910mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 68% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
|
JCA0348S12DC DC CONVERTER 12V 3W |
8 | - |
|
Технический лист |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 260mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 75% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
MBP2403YMD-3ADC DC CONVERTER,7.5W,2.5VDC |
9 | - |
|
Технический лист |
- | 9-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 16V | 32V | 2V ~ 3.65V | - | - | - | 3A, 2.7A | - | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE | - |
|
|
AM5TW-2409DZDC DC CONVERTER +/-9V 5W |
20 | - |
|
Технический лист |
AM5TW-Z (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 9V | -9V | - | - | 278mA, 278mA | 5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
|
MPU02-15D12ISOLATED / 2W / VOUT: 12 |
10 | - |
|
Технический лист |
MPU02 (2W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 12V | -12V | - | - | 83mA, 83mA | 1.992 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 |
|
|
MPU02-15D05ISOLATED / 2W / VOUT: 5 |
9 | - |
|
Технический лист |
MPU02 (2W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 |
|
|
MPU02-15D15ISOLATED / 2W / VOUT: 15 |
9 | - |
|
Технический лист |
MPU02 (2W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2.01 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 |
|
URA1D05YMD-6WR3ISOLATED MODULE DC DC CONVERTER |
17 | - |
|
Технический лист |
URA1D_YMD-6WR3 (6W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE, EN, UKCA | 62368-1 |
|
|
SDH03-24D15WDC DC CONVERTER +/-15V 3W |
10 | - |
|
Технический лист |
SDH03W (3W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | CE | - |
|
OEJ05SC1224IDC DC CONVERTER 5V 1.5W |
49 | - |
|
Технический лист |
- | 4-DIP Module | Bulk | Active | Isolated Module | 1 | 8V | 32V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | - | -20°C ~ 71°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|

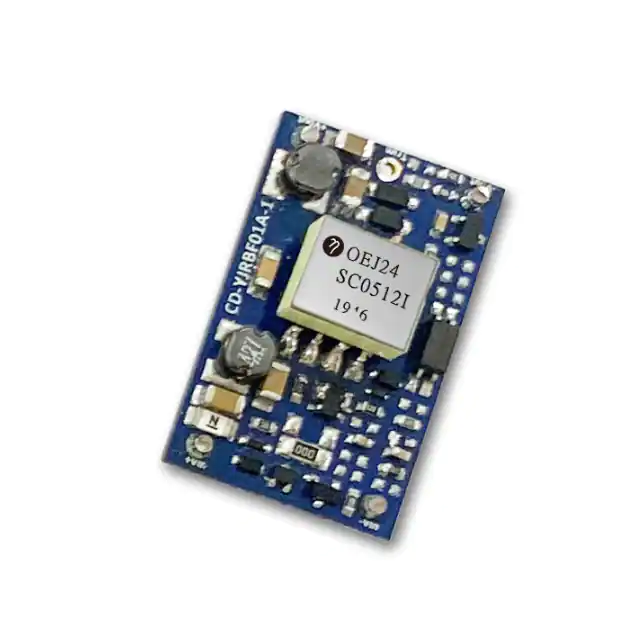

OEJ24SC0512IDC DC CONVERTER 24V 1.8W |
15 | - |
|
Технический лист |
- | 4-DIP Module | Bulk | Active | Isolated Module | 1 | 4.5V | 16V | 24V | - | - | - | 75mA | 1.8 W | 1.5 kV | ITE (Commercial) | - | -20°C ~ 71°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
OEJ12SC0512IDC DC CONVERTER 12V 1.56W |
11 | - |
|
Технический лист |
- | 4-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 16V | 12V | - | - | - | 130mA | 1.56 W | 1.5 kV | ITE (Commercial) | - | -20°C ~ 71°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
PYBE10-Q24-D5DC DC CONVERTER +/-5V 10W |
7 | - |
|
Технический лист |
PYBE10 (10W) | 24-DIP Module, 9 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | EN | 55024; 55032 Class A |
|
|
6DAMW4_2412S6DC-DC INDUSTRIAL |
37 | - |
|
Технический лист |
6DAMW4_6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 6 kV | Medical | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | CE | 60601-1 |
|
IEU0312S05DC DC CONVERTER 5V 3W |
34 | - |
|
Технический лист |
IEU03 (3W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0324S05DC DC CONVERTER 5V 3W |
8 | - |
|
Технический лист |
IEU03 (3W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
