DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPT7B48NDC DC CONVERTER 12V 84W |
100 | - |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 7A | 84 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPT4B36PDC DC CONVERTER 12V 50W |
28 | - |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPT10A18PDC DC CONVERTER 5V 50W |
18 | - |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 10A | 50 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPT8A18NDC DC CONVERTER 5V 40W |
16 | - |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|

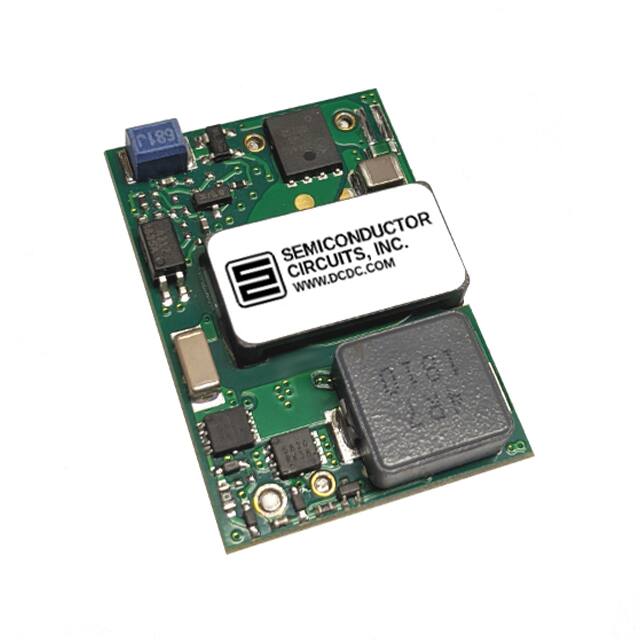

CPT8A36NDC DC CONVERTER 5V 40W |
12 | - |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 8A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
15DMWE4_2412S1.5ISOLATED MODULE DC DC CONVERTERS |
43 | - |
|
Технический лист |
15DMWE4_1.5 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE, cURus | 62368-1 |
|
RDL03-110S3P3WDC DC CONVERTER 3.3V 2.3W |
10 | - |
|
Технический лист |
RDL03W (3W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 700mA | 2.3 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 76% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, CE, cURus | - |
|
|
10D6AW4_2412S1.5RPDC-DC INDUSTRIAL |
75 | - |
|
Технический лист |
10D6AW4_1.5 (10W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 9.9 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.54" L x 0.82" W x 0.24" H (39.2mm x 20.8mm x 6.1mm) | - | - | - | - |
|
SUS61212CDC DC CONVERTER 12V |
25 | - |
|
Технический лист |
SUS (6W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.24" L x 0.71" W x 0.26" H (31.6mm x 18.1mm x 6.5mm) | - | - | - | - |
|
|
SUS60505CDC DC CONVERTER 5V 5W |
15 | - |
|
Технический лист |
SUS (6W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 1.24" L x 0.71" W x 0.26" H (31.6mm x 18.1mm x 6.5mm) | - | - | - | - |
|
SUW61212BDC DC CONVERTER +/-12V 24V 6W |
15 | - |
|
Технический лист |
SUW (6W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Surface Mount | 1.24" L x 0.71" W x 0.26" H (31.6mm x 18.1mm x 6.5mm) | - | - | - | - |
|
THR 3-4822WI3 WATT DC/DC CONVERTER, INDUSTRI |
7 | - |
|
Технический лист |
THR 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 92°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
2570DC DC CONVERTER 4-12V 48W |
100 | - |
|
Технический лист |
U3V50 | 8-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 12V | 4 ~ 12V | - | - | - | 3A | 48 W | - | - | Adjustable Output | - | 95% | - | - | Through Hole | 1.90" L x 0.60" W x 0.41" H (48.3mm x 15.2mm x 10.4mm) | - | Enable, Active Floating | - | - |
|
2577DC DC CONVERTER 12V 36W |
72 | - |
|
Технический лист |
S18V20 | 9-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 32V | 12V | - | - | - | 2A | 36 W | - | - | - | - | 90% | - | - | Through Hole | 1.70" L x 0.83" W x 0.38" H (43.2mm x 21.1mm x 9.7mm) | - | Enable, Active Floating | - | - |
|

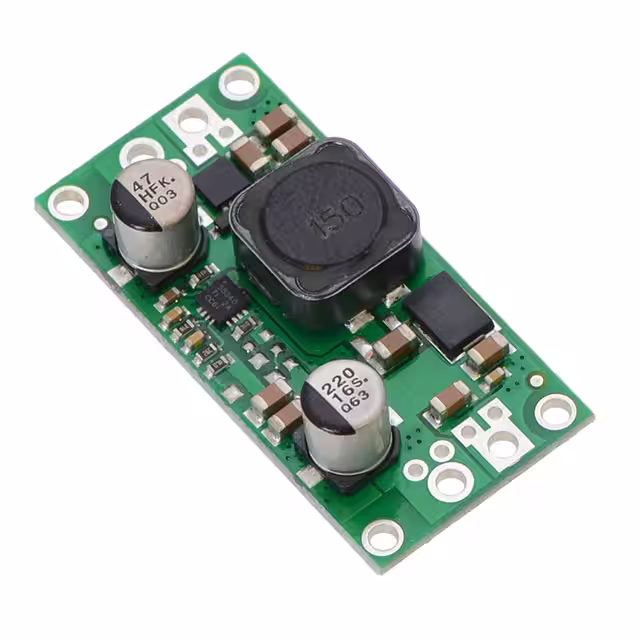

2576DC DC CONVERTER 9V 36W |
65 | - |
|
Технический лист |
S18V20 | 9-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 32V | 9V | - | - | - | 2A | 36 W | - | - | - | - | 90% | - | - | Through Hole | 1.70" L x 0.83" W x 0.38" H (43.2mm x 21.1mm x 9.7mm) | - | Enable, Active Floating | - | - |
|
|
RDL03-24S05WDC DC CONVERTER 5V 3W |
20 | - |
|
Технический лист |
RDL03W (3W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, CE, cURus | - |
|
|
RDL03-24S24WDC DC CONVERTER 24V 3W |
10 | - |
|
Технический лист |
RDL03W (3W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, CE, cURus | - |
|
EC2SBW-48S33NDC DC CONVERTER 3.3V 8.3W |
15 | - |
|
Технический лист |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | CE | 60950-1 |
|
|
EC2SBW-48D05NDC DC CONVERTER +/-5V 10W |
15 | - |
|
Технический лист |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | CE | 60950-1 |
.jpg)
|
IEQ0512D15DC DC CONVERTER +/-15V 5W |
23 | - |
|
Технический лист |
IEQ05 (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 167mA, 167mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 82% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) | 8-SIP | Enable, Active Low | - | 62368-1 |
