DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP10-2412SEWDC DC CONVERTER 12V 10W |
0 | - |
|
Технический лист
|
POWERLINE RP10-EW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 85°C | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
EC7BW18-72D12DC DC CONVERTER +/-12V 20W |
1 | - |
|
Технический лист
|
EC7BW18 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|

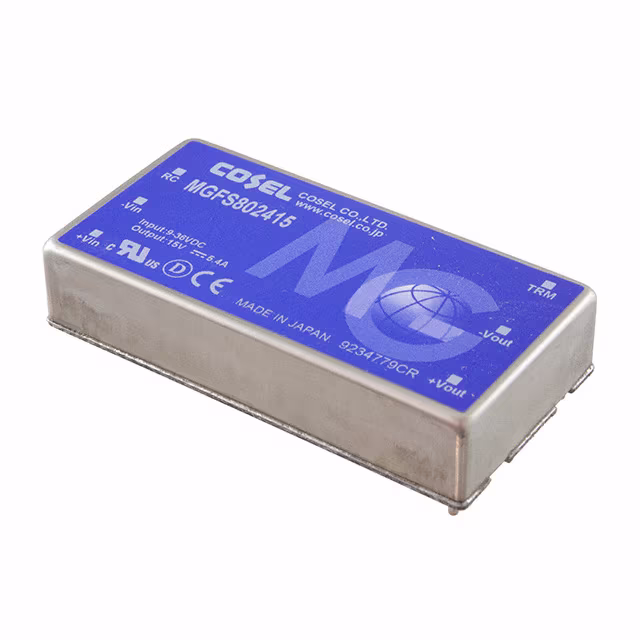

MGFS802415DC DC CONVERTER 15V 81W |
0 | - |
|
Технический лист
|
MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 5.4A | 81 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
.jpg)
|
MGFW802412DC DC CONVERTER +/-12V 82W |
0 | - |
|
Технический лист
|
MGFW (80W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 3.4A, 3.4A | 82 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
.jpg)
|
MGFS404812DC DC CONVERTER 12V 41W |
0 | - |
|
Технический лист
|
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 3.4A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
THM 30-4815DC DC CONVERTER 24V 30W |
0 | - |
|
Технический лист
|
THM 30 (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 1.25A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
CQE50W-24S24DC DC CONVERTER 24V 50W |
0 | - |
|
Технический лист
|
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
THN 30-4810WIDC DC CONVERTER 3.3V 23W |
0 | - |
|
Технический лист
|
THN 30WI (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 7A | 23 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
MGFS804815DC DC CONVERTER 15V 81W |
1 | - |
|
Технический лист
|
MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 5.4A | 81 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
|
CQB75W-48S05NDC DC CONVERTER 5V 60W |
0 | - |
|
Технический лист
|
CQB75W (75W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active Low | CE, cURus | 60950-1 |
|
REM10-2405SW/A/CTRLDC DC CONVERTER 5V 10W |
0 | - |
|
Технический лист
|
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
E35SE24006PDPG9-60VIN; 24VOUT, 150W, ENCAPSULA |
0 | - |
|
Технический лист
|
E35SE (150W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 60V | 24V | - | - | - | 6A | 144 W | 4.242 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.2% | - | - | Through Hole | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) | Eighth Brick | Enable, Active High | CSA, EN, IEC, UL | 50155; 60950-1; 62368-1 |
|
PXE30-12S15DC DC CONVERTER 15V 30W |
1 | - |
|
Технический лист
|
PXE (30W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|

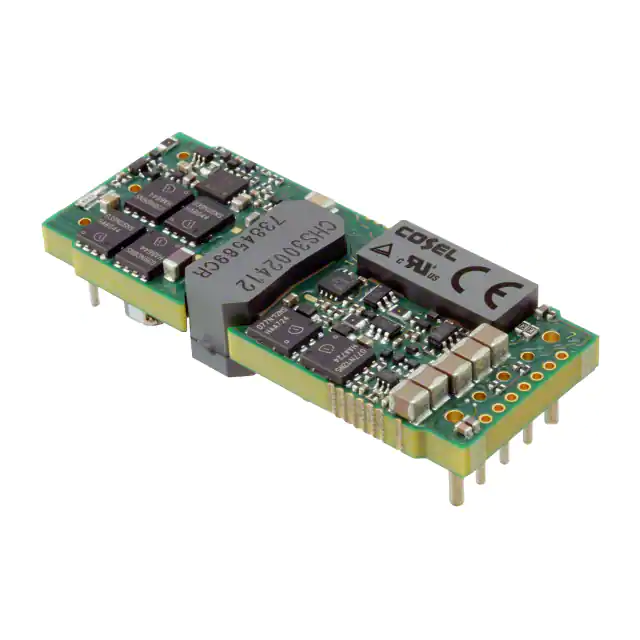

CHS3002405DC DC CONVERTER 5V 200W |
1 | - |
|
Технический лист
|
CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | - | CE, cURus, TUV | - |
|
|
CHS3002412DC DC CONVERTER 12V 200W |
1 | - |
|
Технический лист
|
CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 16.7A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | - | CE, cURus, TUV | - |
|
|
CHS3002415DC DC CONVERTER 15V 203W |
1 | - |
|
Технический лист
|
CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 13.5A | 203 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | - | CE, cURus, TUV | - |
|
ECLB60W-24S05DC DC CONVERTER 5V 60W |
0 | - |
|
Технический лист
|
ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
CQB60W-110S12DC DC CONVERTER 12V 60W |
1 | - |
|
Технический лист
|
CQB60W-110S (60W) | Module | Tray | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 5A | 60 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 |
|
CHB75-24S05NDC DC CONVERTER 5V 75W |
0 | - |
|
Технический лист
|
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 15A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
MGDBK04HEDC DC CONVERTER |
0 | - |
|
Технический лист
|
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 165mA, 165mA | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | 1.30" L x 0.79" W x 0.31" H (33.0mm x 20.0mm x 7.8mm) | - | - | - | - |
