DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRD15-Q24-S12-P-DDC DC CONVERTER 12V 15W |
0 | - |
|
Технический лист |
PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm) | - | Enable, Active High | - | - |
|
|
SSQE48T25025-NACNGDC DC CONVERTER 2.5V 63W |
0 | - |
|
Технический лист |
- | 8-DIP Module, 1/16 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 25A | 63 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) | - | Enable, Active Low | - | - |
|
|
SSQE48T15033-NAC0GDC DC CONVERTER 3.3V 50W |
0 | - |
|
Технический лист |
SSQE48 (50W) | 8-DIP Module, 1/16 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) | - | Enable, Active Low | - | - |
|
|
PT7715CDC DC CONVERTER 1.075-1.85V |
510 | - |
|
Технический лист |
Excalibur™ PT7715 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.075 ~ 1.85V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
PT7712NDC DC CONVERTER 1.3-2.05V |
90 | - |
|
Технический лист |
Excalibur™ PT7712 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 1.3 ~ 2.05V | - | - | - | 20A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole, Vertical | 3.00" L x 0.66" W x 1.02" H (76.2mm x 16.8mm x 25.9mm) | - | - | - | - |
|
|
PT7712ADC DC CONVERTER 1.3-2.05V |
0 | - |
|
Технический лист |
Excalibur™ PT7712 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 1.3 ~ 2.05V | - | - | - | 20A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole, Horizontal | 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm) | - | - | - | - |
|
|
PT7709CDC DC CONVERTER 1.3-3.5V 20A |
32 | - |
|
Технический лист |
PT7700 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 20A | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - | - |
|
|
PT7715ADC DC CONVERTER 1.075-1.85V |
0 | - |
|
Технический лист |
Excalibur™ PT7715 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.075 ~ 1.85V | - | - | - | 20A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole, Horizontal | 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm) | - | - | - | - |
|
|
PT4711ADC DC CONVERTER 15V 15V 45W |
0 | - |
|
Технический лист |
Excalibur™ PT4711 (45W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 15V | 15V | - | - | 1.5A, 1.5A | 45 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
VBED15-D12-D12-1CONVERTER DC/DC +/-12V OUT 15W |
423 | - |
|
Технический лист |
VBED15 | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 500 V | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, UL | 60950-1 |
|
UHE-15/2000-Q48-CDC DC CONVERTER 15V 30W |
31 | - |
|
Технический лист |
UHE (30W) | 9-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
TWA8-12-12HI/NDC DC CONVERTER +/-12V 8W |
500 | - |
|
Технический лист |
TWA8 (8W) | 24-DIP Module, 9 Leads | Tray | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 333mA, 333mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
JHM2024D12DC DC CONVERTER +/-12V 20W |
28 | - |
|
Технический лист |
JHM20 (20W) | 6-DIP Module, 5 Leads | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 4 kV | Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

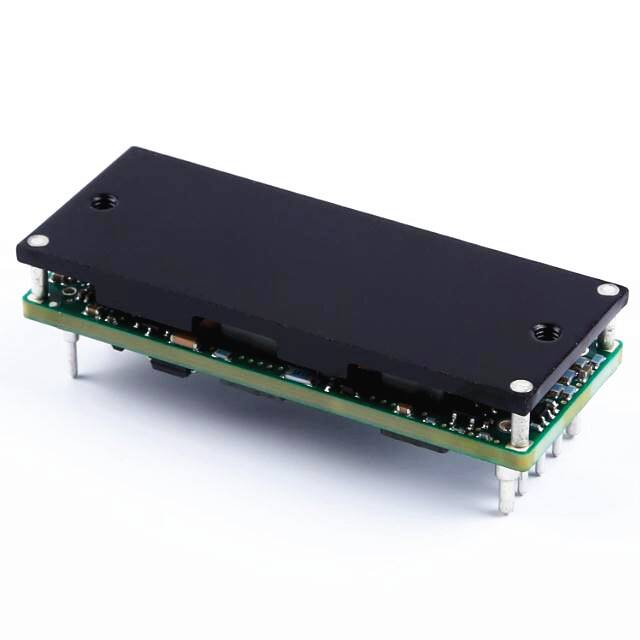

ERS4280N005N26DC DC CONVERTER 28V 140W |
50 | - |
|
Технический лист |
ERS (140W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 5A | 140 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|
|
ASD15H-12S5Isolated and Regulated 15 WATT O |
26 | - |
|
Технический лист |
ASD15H (15W) | 8-DIP Module, 6 Leads | Tape & Box (TB) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | Remote On/Off | -25°C ~ 71°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.50" W x 0.45" H (50.8mm x 38.1mm x 11.5mm) | - | Enable, Active High | CSA, UL | - |
|
150QBW4_4848S2.25ISOLATED MODULE DC DC CONVERTERS |
28 | - |
|
Технический лист |
150QBW4_2.25 (150W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 3.13A | 150 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | CE | - |
|
|
ERS4120N005N25E36-75Vin, 12V 5A , eighth brick |
34 | - |
|
Технический лист |
ERS4 | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 5A | 60 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.8mm x 10.4mm) | Eighth Brick | Enable, Active Low | CE, cURus | 62368-1 |
|
|
VCF4815QBO-400WR3-NISOLATED MODULE DC DC CONVERTER1 |
47 | - |
|
Технический лист |
VCF48_QBO-400WR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 26.5A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4812QBO-400WR3-NISOLATED MODULE DC DC CONVERTER1 |
44 | - |
|
Технический лист |
VCF48_QBO-400WR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
VCF4828QBO-400WR3-NISOLATED MODULE DC DC CONVERTER1 |
43 | - |
|
Технический лист |
VCF48_QBO-400WR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 14.2A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
