DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WRD12D12-40WH2DC DC CONVERTER 40W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | - | 40 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD24D05-40WH2DC DC CONVERTER 40W |
20,000 | - |
|
- |
* | Module | Case | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | - | 40 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD110S05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRD110S05-50W | 8-DIP Module | Case | Active | Isolated Module | 1 | 70V | 150V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD24S24-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD12S24-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD48S24-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 36V | 72V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD110S24-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXS(D)XX-50W | 8-DIP Module | Case | Active | Isolated Module | 2 | 70V | 150V | 24V | -24V | - | - | 830mA, 830mA | 40 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | - | - |
|
|
WRD48S05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD12S05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD48S12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 4.166A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD12S12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 4.166A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD24S05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD24S12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXSXX-(50-200)W | Half Brick | Case | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.166A | 50 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | Half Brick | - | - | - |
|
|
WRD110S12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRDXXS(D)XX-50W | 8-DIP Module | Case | Active | Isolated Module | 2 | 70V | 150V | 12V | -12V | - | - | 1.66A, 1.66A | 40 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | - | - |
|

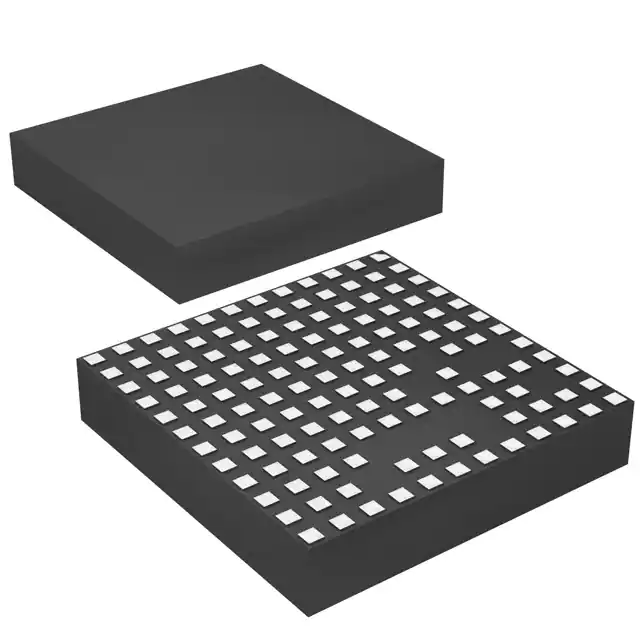

LTM4601AIY-1#PBFSWITCHING CONTROLLER, CURRENT-MO |
1,428 | - |
|
Технический лист |
µModule® | 133-BBGA Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 133-BGA (15x15) | - | - | - |
|
|
FDC10-24D05W-PDC DC CONVERTER +/-5V 10W |
125 | - |
|
Технический лист |
FDC10 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -25°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
WRD24D05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRD_S -50W | 8-DIP Module | Case | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 5A | 50 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD12D12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRD_S -50W | 8-DIP Module | Case | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 2.083A, 2.083A | 50 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD12D05-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRM_S -40W | 8-DIP Module | Case | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 5A | 50 W | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
|
|
WRD24D12-50WDC DC CONVERTER 50W |
20,000 | - |
|
- |
WRD_S -50W | 8-DIP Module | Case | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 2.08A | 50 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) | - | - | CE | - |
