DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TME 2415SDC DC CONVERTER 15V 1W |
99 | - |
|
Технический лист |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
173010335DC DC CONVERTER 3.3V 3.3W |
66 | - |
|
Технический лист |
MagI³C (1W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - |
|
LMW78_24-0.3RLDC-DC STEP DOWN REGULATORS |
33 | - |
|
Технический лист |
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 36V | 90V | 24V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) | - | - | - | - |
|
TME 1205SDC DC CONVERTER 5V 1W |
64 | - |
|
Технический лист |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMV 1212SDC DC CONVERTER 12V 1W |
28 | - |
|
Технический лист |
TMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
RO-0509SDC DC CONVERTER 9V 1W |
59 | - |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
SPAN02A-12DC DC CONVERTER 12V 2W |
28 | - |
|
Технический лист |
SPAN02 (2W) | 8-SIP Module, 7 Leads | - | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

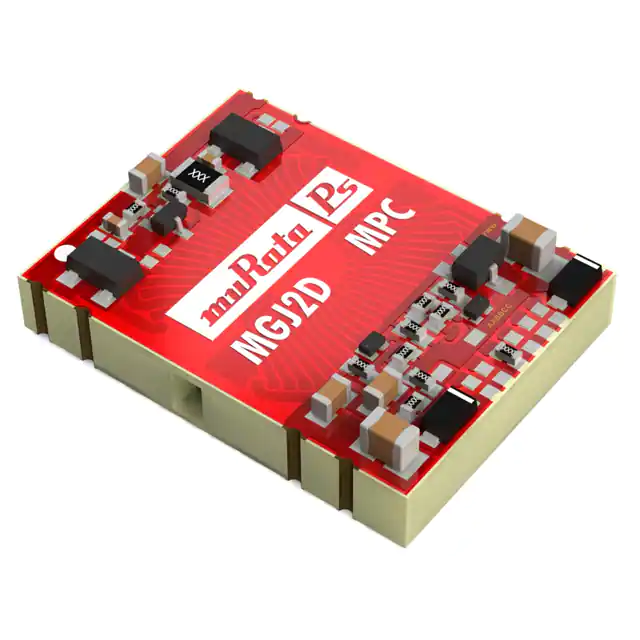

MGJ2D122005MPC-R7DC DC CONVERTER 20V -5V 2W |
122 | - |
|
Технический лист |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 76% | - | - | Surface Mount | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) | - | - | - | 60601-1; 62368-1 |
|
|
MGJ2D152005MPC-R7DC DC CONVERTER 20V -5V 2W |
38 | - |
|
Технический лист |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 76% | - | - | Surface Mount | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) | - | - | - | 60601-1; 62368-1 |
|
MEZD72401A-GDC DC CONVERTER 5V |
49 | - |
|
Технический лист |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|

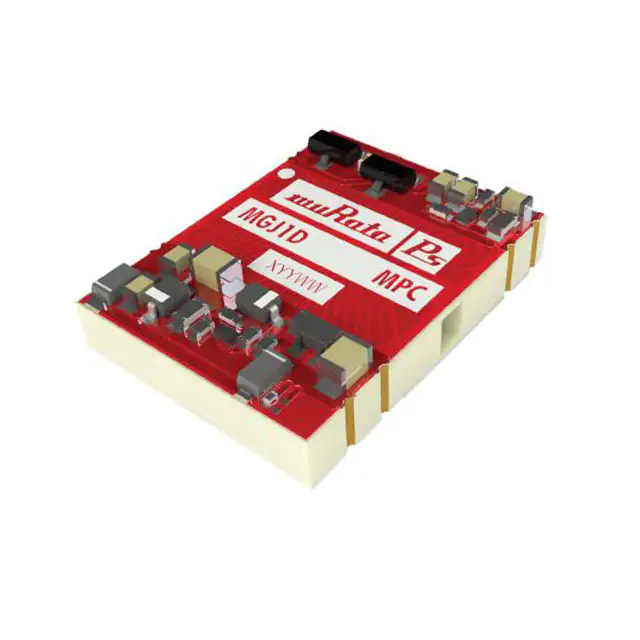

MGJ1D241505MPC-R7DC DC CONVERTER 15V -5V 1W |
80 | - |
|
Технический лист |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -5V | - | - | 50mA, 50mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 105°C | 64% | - | - | Surface Mount | 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm) | - | - | - | - |
|
|
MGJ1D151505MPC-R7DC DC CONVERTER 15V -5V 1W |
80 | - |
|
Технический лист |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -5V | - | - | 50mA, 50mA | 1 W | 5.7 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 105°C (With Derating) | 69% | - | - | Surface Mount | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) | - | - | - | - |
|
MEV1D1205SCDC DC CONVERTER +/-5V 1W |
43 | - |
|
Технический лист |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|

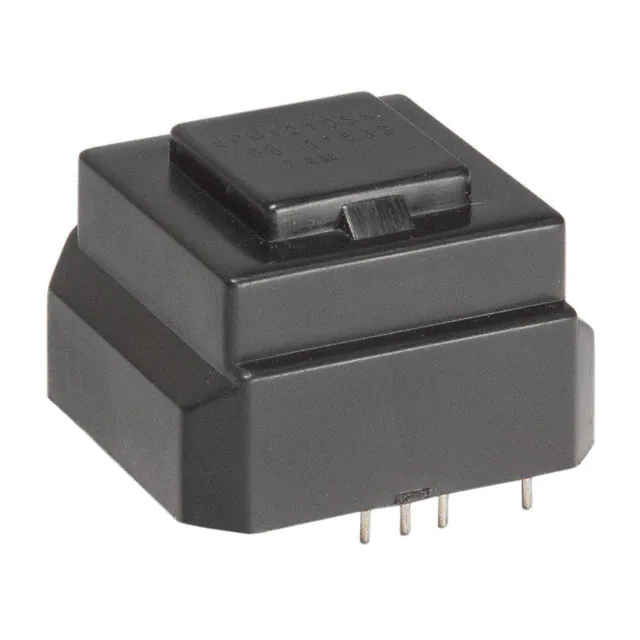

EPM1210SJDC DC CONVERTER 12V 12W |
91 | - |
|
Технический лист |
EPM | 14-DIP Module | Bulk | Active | Isolated Module | 1 | 110V | 450V | 12V | - | - | - | 1A | 12 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP | -20°C ~ 80°C | 80% | - | - | Through Hole | 1.30" L x 1.22" W x 0.81" H (33.0mm x 31.0mm x 20.7mm) | - | - | - | - |
|
TSR 0.5-2465DC DC CONVERTER 6.5V 3.3W |
88 | - |
|
Технический лист |
TSR 0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3.3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 90°C (With Derating) | 95% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
TMH 1212SDC DC CONVERTER 12V 2W |
49 | - |
|
Технический лист |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 12V | - | - | - | 165mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|

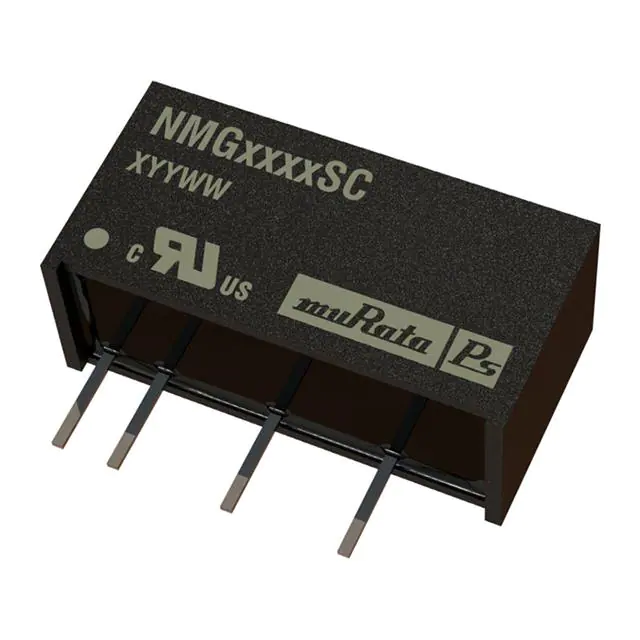

NMG1224SCDC DC CONVERTER 24V 2W |
81 | - |
|
Технический лист |
NMG (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
NKA0515SCDC DC CONVERTER +/-15V 1W |
58 | - |
|
Технический лист |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
NKA0505SCDC DC CONVERTER +/-5V 1W |
26 | - |
|
Технический лист |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
|
ROM-1205SDC DC CONVERTER 5V 1W |
30 | - |
|
Технический лист |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.24" W x 0.30" H (11.5mm x 6.1mm x 7.7mm) | - | - | - | - |
