DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-733.3PDC DC CONVERTER 3.3V 9.9W |
24 | - |
|
Технический лист |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 3.3V | - | - | - | 3A | 9.9 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|
TEL 10-4815WIDC DC CONVERTER 24V 10W |
83 | - |
|
Технический лист |
TEL 10WI (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 416mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 88°C (With Derating) | 88% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
TEL 10-2415WIDC DC CONVERTER 24V 10W |
40 | - |
|
Технический лист |
TEL 10WI (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 416mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 88°C (With Derating) | 88% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
TEL 10-2413WIDC DC CONVERTER 15V 10W |
32 | - |
|
Технический лист |
TEL 10WI (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 88°C (With Derating) | 88% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|

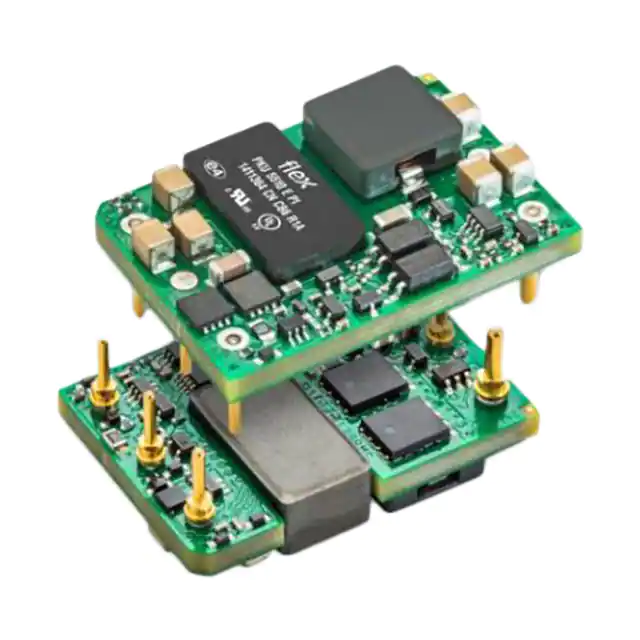

PKU5511ESIDC DC CONVERTER 5V 50W |
82 | - |
|
Технический лист |
PKU 5500E (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TDN 5-0910WISMDC DC CONVERTER 3.3V 3.3W |
78 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 3.3V | - | - | - | 1A | 3.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 76% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
TDN 5-4811WISMDC DC CONVERTER 5V 5W |
42 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
TDN 5-2412WISMDC DC CONVERTER 12V 5W |
40 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 420mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
|
TDN 5-2410WISMDC DC CONVERTER 3.3V 3.3W |
23 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1A | 3.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 76% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
JTR1048S05DC DC CONVERTER 5V 10W |
14 | - |
|
Технический лист |
JTR10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 88°C (With Derating) | 83% | - | - | Through Hole | 0.94" L x 0.54" W x 0.41" H (23.8mm x 13.7mm x 10.5mm) | - | - | CB, UL | - |
|
410-294-ADC DC CONVERTER +/-5V 2W |
39 | - |
|
Технический лист |
PowerBrick | - | Bulk | Active | Breadboard Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 250mA, 200mA | 2 W | - | - | - | - | - | - | - | Through Hole | - | - | - | - | - |
|
410-293-ADC DC CONVERTER +/-12V 2W |
18 | - |
|
Технический лист |
PowerBrick | - | Bulk | Active | Breadboard Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 100mA, 100mA | 2 W | - | - | - | - | - | - | - | Through Hole | - | - | - | - | - |
|
RSDW20F-12DC/DC CONVERTER |
40 | - |
|
Технический лист |
RSDW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | - | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, EAC, UKCA | - |
|
|
R2M-2412S2W DC/DC-CONVERTER 'ECONOLINE' D |
15 | - |
|
Технический лист |
R2M (2W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
THD 10-2422NDC DC CONVERTER +/-12V 10W |
67 | - |
|
Технический лист |
THD 10N (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

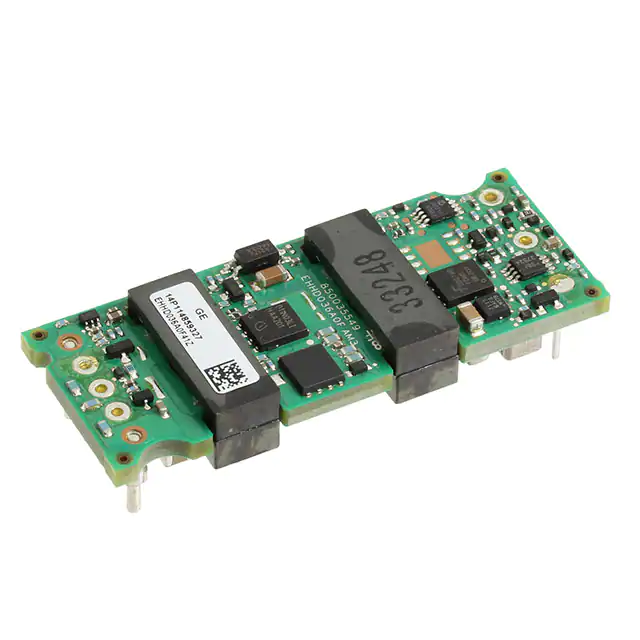

EHHD036A0F41ZDC DC CONVERTER 3.3V 120W |
40 | - |
|
Технический лист |
Hammerhead™ EHHD036A0F (120W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 36A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) | - | Enable, Active Low | - | - |
|
AYA01C24-LDC DC CONVERTER 15V 3W |
6 | - |
|
Технический лист |
AYA (3W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | - |
|

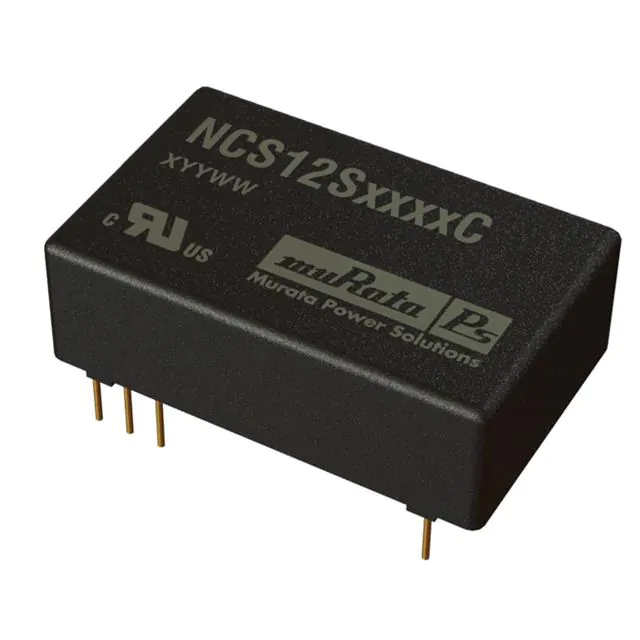

NCS12S1203CDC DC CONVERTER 3.3V 12W |
27 | - |
|
Технический лист |
NCS12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3.64A | 12 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm) | - | - | - | - |
|
TEN 5-1223DC DC CONVERTER +/-15V 6W |
55 | - |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
THL 15-2413WIDC DC CONVERTER 15V 15W |
11 | - |
|
Технический лист |
THL 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.8 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 70°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CB | - |
