DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3S7A_1212S1UISOLATED MODULE DC DC CONVERTERS |
86 | - |
|
Технический лист |
3S7A_1U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
SBTN01N-05DC DC CONVERTER 5V 1W |
46 | - |
|
Технический лист |
SBTN01 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 77% | - | - | Surface Mount | 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm) | - | - | - | - |
|
2S7BE_1203S3UISOLATED MODULE DC DC CONVERTERS |
90 | - |
|
Технический лист |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 400mA | 1.32 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
LC78_12-1.0NON-ISOLATED POL MODULE DC DC CO |
30 | - |
|
Технический лист |
LC78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 14V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TBA 2-2412DC DC CONVERTER 12V 2W |
52 | - |
|
Технический лист |
TBA 2 (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
TBA 2-1221DC DC CONVERTER +/-5V 2W |
42 | - |
|
Технический лист |
TBA 2 (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
PCN1-S5-D12-SDC DC CONVERTER +/-12V 1W |
6 | - |
|
Технический лист |
PCN1-S (1W) | 6-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
|
2S7BE_0315S3UISOLATED MODULE DC DC CONVERTERS |
100 | - |
|
Технический лист |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 133.3mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
|
2S7BE_0505S3UISOLATED MODULE DC DC CONVERTERS |
75 | - |
|
Технический лист |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|

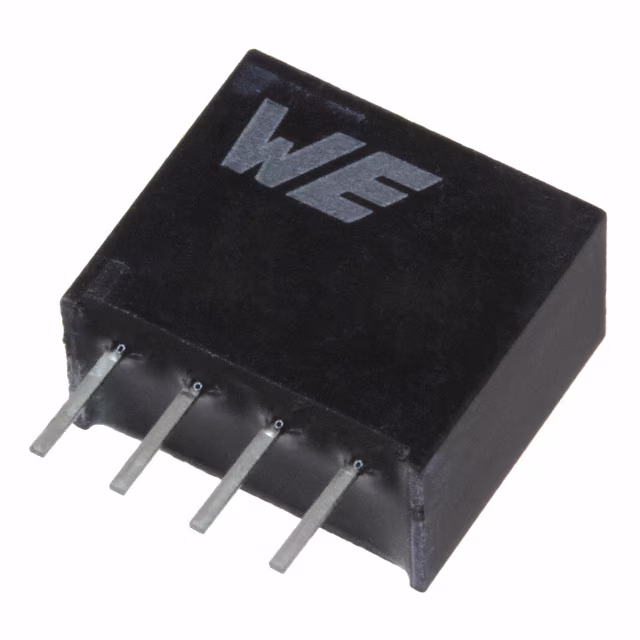

177920531DC DC CONVERTER 5V 1W |
67 | - |
|
Технический лист |
MagI³C (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
.jpg)
|
MEA1D4805SCDC DC CONVERTER +/-5V 1W |
29 | - |
|
Технический лист |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 43.2V | 52.8V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
LC78_12-0.5NON-ISOLATED POL MODULE DC DC CO |
57 | - |
|
Технический лист |
LC78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 28V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
3S4A_1205S1UPISOLATED MODULE DC DC CONVERTERS |
83 | - |
|
Технический лист |
3S4A_1UP (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
|
2S7BE_2415S3UISOLATED MODULE DC DC CONVERTERS |
100 | - |
|
Технический лист |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133.3mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
PCN1-S24-S15-SDC DC CONVERTER 15V 1W |
97 | - |
|
Технический лист |
PCN1-S (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | EN | 55032 Class A |
|

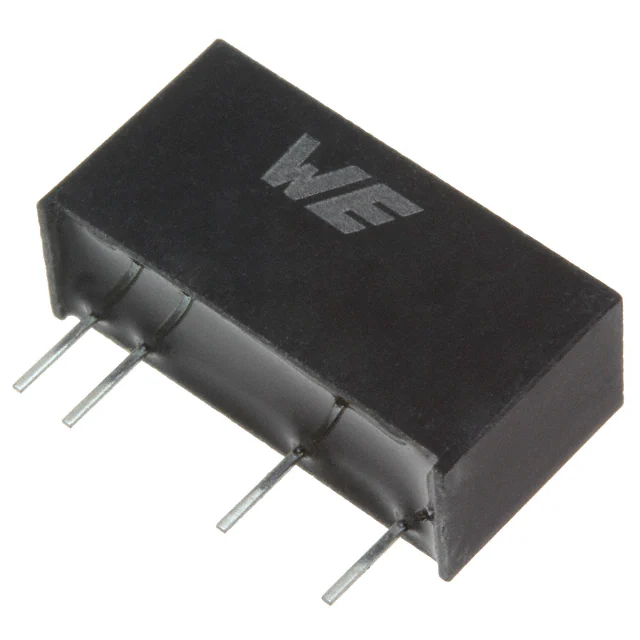

177920514DC DC CONVERTER 5V 1W |
48 | - |
|
Технический лист |
MagI³C (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.2mm) | - | - | - | - |
|
MEE1S0512SCDC DC CONVERTER 12V 1W |
52 | - |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MEE1S0312SCDC DC CONVERTER 12V 1W |
40 | - |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MEE1S2412SCDC DC CONVERTER 12V 1W |
34 | - |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85.5% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MEE1S0505DCDC DC CONVERTER 5V 1W |
29 | - |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
