DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPM3.3-3.0-CTDC DC CONVERTER 3.3V |
66 | - |
|
Технический лист |
INNOLINE RPM-3.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 97% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
MGJ1D241905MPC-R7DC DC CONVERTER 19V -5V 1W |
48 | - |
|
Технический лист |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 19V | -5V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 105°C | 64% | - | - | Surface Mount | 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm) | - | - | - | - |
|
MEV1S0509SCDC DC CONVERTER 9V 1W |
44 | - |
|
Технический лист |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|

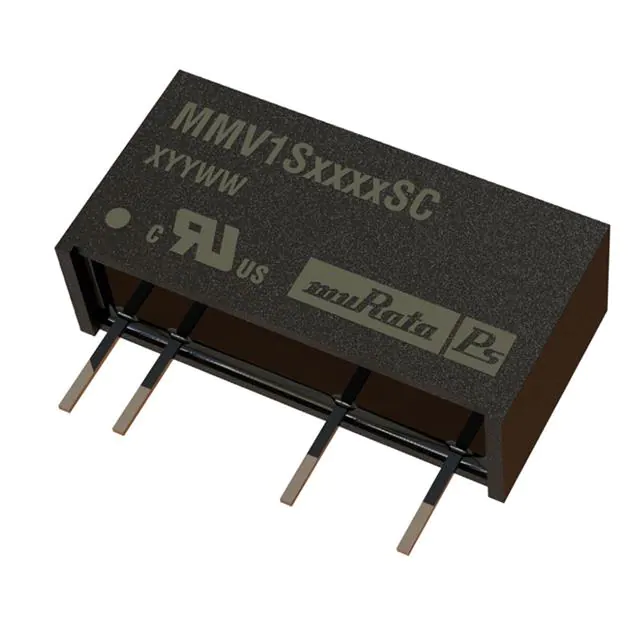

MMV1S0505SCDC DC CONVERTER 5V 1W |
39 | - |
|
Технический лист |
MMV1 (1W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MMV1S0524SCDC DC CONVERTER 24V 1W |
28 | - |
|
Технический лист |
MMV1 (1W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 41.7mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MGJ1D051905MPC-R7DC DC CONVERTER 19V -5V 1W |
28 | - |
|
Технический лист |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 19V | -5V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 105°C | 64.5% | - | - | Surface Mount | 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm) | - | - | - | - |
|
MEV1S0512DCDC DC CONVERTER 12V 1W |
26 | - |
|
Технический лист |
MEV1 (1W) | 14-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|
TRA 1-0519DC DC CONVERTER 9V 990MW |
45 | - |
|
Технический лист |
TRA 1 (1W) | 6-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 990 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
|
TRA 1-0511DC DC CONVERTER 5V 1W |
41 | - |
|
Технический лист |
TRA 1 (1W) | 6-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
RPMH5.0-0.5-CTDC DC CONVERTER 5V |
76 | - |
|
Технический лист |
INNOLINE RPMH-0.5 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 65V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 77% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | Enable, Active Floating | - | - |
|
TES 1-0512DC DC CONVERTER 12V 1W |
38 | - |
|
Технический лист |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
RB-2405SDC DC CONVERTER 5V 1W |
93 | - |
|
Технический лист |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RB-2424SDC DC CONVERTER 24V 1W |
83 | - |
|
Технический лист |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RB-1215S/HDC DC CONVERTER 15V 1W |
50 | - |
|
Технический лист |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RE-1515SDC DC CONVERTER 15V 1W |
28 | - |
|
Технический лист |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RO-3.309SDC DC CONVERTER 9V 1W |
83 | - |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RB-3.33.3SDC DC CONVERTER 3.3V 1W |
42 | - |
|
Технический лист |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RKZE-0509SDC DC CONVERTER 9V 2W |
100 | - |
|
Технический лист |
RKZE (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 80°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RO-0512S/PDC DC CONVERTER 12V 1W |
89 | - |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
PG02S4805ADC DC CONVERTER 5V 2W |
70 | - |
|
Технический лист |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | - | - |
