DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC3-4805SR-EDC DC CONVERTER 5V 3W |
30 | - |
|
Технический лист |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-1203SR-EDC DC CONVERTER 3.3V 3W |
28 | - |
|
Технический лист |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
CC3-4812SF-EDC DC CONVERTER 12-15V 3W |
26 | - |
|
Технический лист |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 12 ~ 15V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-4803SF-EDC DC CONVERTER 3.3V 3W |
25 | - |
|
Технический лист |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-4812DR-EDC DC CNVRTR +/-12V TO +/-15V 3W |
19 | - |
|
Технический лист |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-0512SR-EDC DC CONVERTER 12-15V 3W |
10 | - |
|
Технический лист |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12 ~ 15V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-2412SR-EDC DC CONVERTER 12-15V 3W |
8 | - |
|
Технический лист |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12 ~ 15V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
LC78_1.8-2.0NON-ISOLATED POL MODULE DC DC CO |
62 | - |
|
Технический лист |
LC78_2.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 30V | 1.8V | - | - | - | 2A | 3.6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
EC3SAW-48S05HPDC DC CONVERTER 5V 3W |
40 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
TEC 2-2410DC DC CONVERTER 3.3V 1.7W |
22 | - |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
R-78B15-1.0LDC DC CONVERTER 15V 15W |
80 | - |
|
Технический лист |
INNOLINE R-78B-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 20V | 32V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial), Medical | OTP, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
|
EC3SAW-24S15HPDC DC CONVERTER 15V 3W |
66 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-24S05HPDC DC CONVERTER 5V 3W |
50 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-48S12HPDC DC CONVERTER 12V 3W |
40 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-24S12HPDC DC CONVERTER 12V 3W |
21 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-48S33HPDC DC CONVERTER 3.3V 2.31W |
19 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 700mA | 2.31 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
RA3-051503D/SMDDC DC CONVERTER 15V 3V 3W |
31 | - |
|
Технический лист |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | 3V | - | - | 100mA, 500mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm) | - | - | - | - |
|

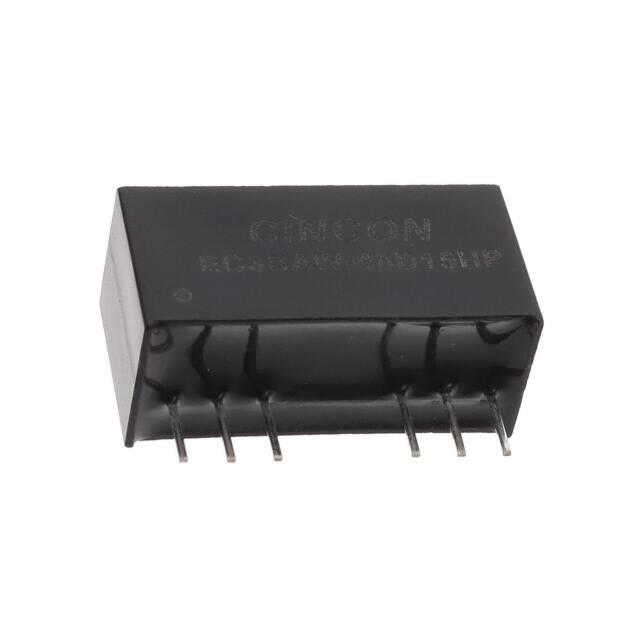

EC3SAW-48D15HPDC DC CONVERTER +/-15V 3W |
81 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-24D12HPDC DC CONVERTER +/-12V 3W |
63 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
EC3SAW-24D05HPDC DC CONVERTER +/-5V 3W |
20 | - |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
