DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCD0405S3V3DC DC CONVERTER 3.3V 4W |
14 | - |
|
Технический лист |
JCD (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.2A | 4 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 73% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
TDN 1-2423WIDC DC CONVERTER +/-15V 1.1W |
17 | - |
|
Технический лист |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 35mA, 35mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TDN 1-2421WIDC DC CONVERTER +/-5V 1W |
15 | - |
|
Технический лист |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 77% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
EC4AB11HTDC DC CONVERTER 5V 5W |
20 | - |
|
Технический лист |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | Enable, Active High | CE, cURus | - |
|
EC5SAW-48S15NDC DC CONVERTER 15V 10W |
20 | - |
|
Технический лист |
EC5SAW (10W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 666mA | 10 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | CE | - |
|
TSH 0515DDC DC CONVERTER +/-15V 2W |
11 | - |
|
Технический лист |
TSH (2W) | 18-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.36" H (15.3mm x 9.3mm x 9.2mm) | - | - | - | - |
|
ATA00H18-LDC DC CONVERTER 24V 3W |
55 | - |
|
Технический лист |
ATA (3W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | - | - |
|
|
ATA00H36-LDC DC CONVERTER 24V 3W |
11 | - |
|
Технический лист |
ATA (3W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | - | - |
|
RHV2-1212S/R20DC DC CONVERTER 12V 2W |
11 | - |
|
Технический лист |
ECONOLINE RHV2 (2W) | 16-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 20 kV | ITE (Commercial), Laboratory | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm) | - | - | - | - |
|
EC6A05DC DC CONVERTER +/-12V 7.4W |
8 | - |
|
Технический лист |
EC6A (7.5W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 310mA, 310mA | 7.4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|

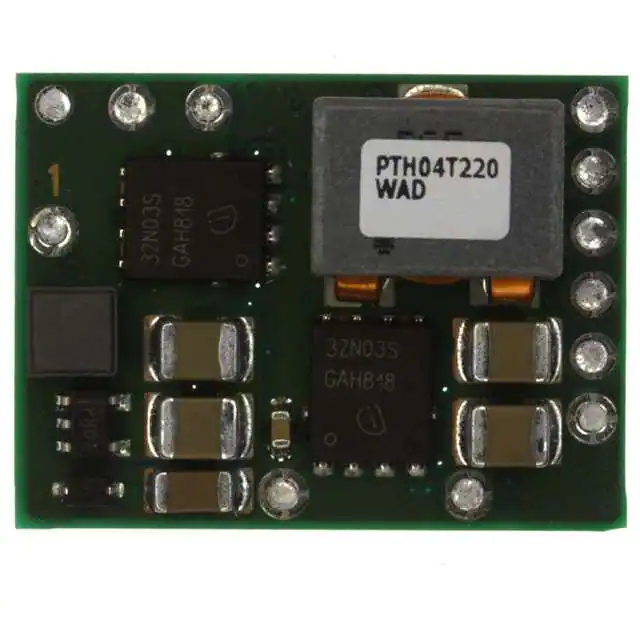

PTH04T220WADDC DC CONVERTER 0.69-3.6V |
42 | - |
|
Технический лист |
PTH04T220W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.00" L x 0.75" W x 0.34" H (25.4mm x 19.1mm x 8.6mm) | - | - | - | - |
|

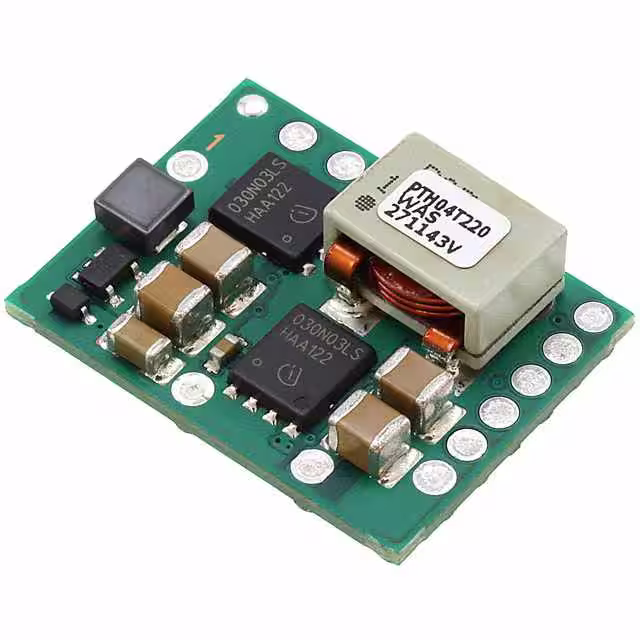

PTH04T220WASDC DC CONVERTER 0.69-3.6V |
10 | - |
|
Технический лист |
PTH04T220W | 11-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 16A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.95" L x 0.75" W x 0.36" H (24.1mm x 19.1mm x 9.1mm) | - | - | - | - |
|
MGS64805DC DC CONVERTER 5V |
43 | - |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 1.2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGS6483R3DC DC CONVERTER 3.3V |
27 | - |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 1.6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGS60512DC DC CONVERTER 12V |
20 | - |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 500mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGS6123R3DC DC CONVERTER 3.3V |
20 | - |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
MGW64815DC DC CONVERTER +/-15V |
16 | - |
|
Технический лист |
MGW (6W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 36V | 76V | 15V | -15V | - | - | 200mA, 200mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGS62415DC DC CONVERTER 15V |
16 | - |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGW60515DC DC CONVERTER +/-15V |
11 | - |
|
Технический лист |
MGW (6W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGW64812DC DC CONVERTER +/-12V 24V 6W |
11 | - |
|
Технический лист |
MGW (6W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
