DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATA01BB18-LDC DC CONVERTER +/-12V 6W |
20 | - |
|
Технический лист |
ATA (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
EC4AW-24S05H6DC DC CONVERTER 5V 5W |
68 | - |
|
Технический лист |
EC4SAW-H6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 6 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2 mm) | - | - | CE | 62368-1 |
|
REC5-2412SRW/H4/ADC DC CONVERTER 12V 5W |
60 | - |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 420mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THL 3-2410WIDC DC CONVERTER 3.3V 2W |
6 | - |
|
Технический лист |
THL 3WI (3W) | 16-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 600mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
|
REC5-2415SRWZ/H2/ADC DC CONVERTER 15V 5W |
35 | - |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 340mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
REC5-2405SRWZ/H/BDC DC CONVERTER 5V 5W |
30 | - |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC7AW-24S12NDC-DC CONVERTER |
45 | - |
|
Технический лист |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
|
EC7AW-24S33NDC-DC CONVERTER |
44 | - |
|
Технический лист |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 81.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
RS3-2415SZ/H3DC DC CONVERTER 15V 3W |
33 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 27V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
.jpg)
|
REC3-2405SRWZ/H2/C/M/SMDDC DC CONVERTER 5V 3W |
20 | - |
|
Технический лист |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | - | - | - |
|
|
RS3-2405SZ/H3DC DC CONVERTER 5V 3W |
11 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 27V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
EC4AW-48S05H6DC DC CONVERTER 5V 5W |
31 | - |
|
Технический лист |
EC4SAW-H6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 1A | 5 W | 6 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2 mm) | - | - | CE | 62368-1 |
|
|
EC4AW-24S12H6DC DC CONVERTER 12V 6W |
14 | - |
|
Технический лист |
EC4SAW-H6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 6 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2 mm) | - | - | CE | 62368-1 |
|
IEU0305D12DC DC CONVERTER +/-12V 3W |
20 | - |
|
Технический лист |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 10V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 84% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0312D15DC DC CONVERTER +/-15V 3W |
10 | - |
|
Технический лист |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 87% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|

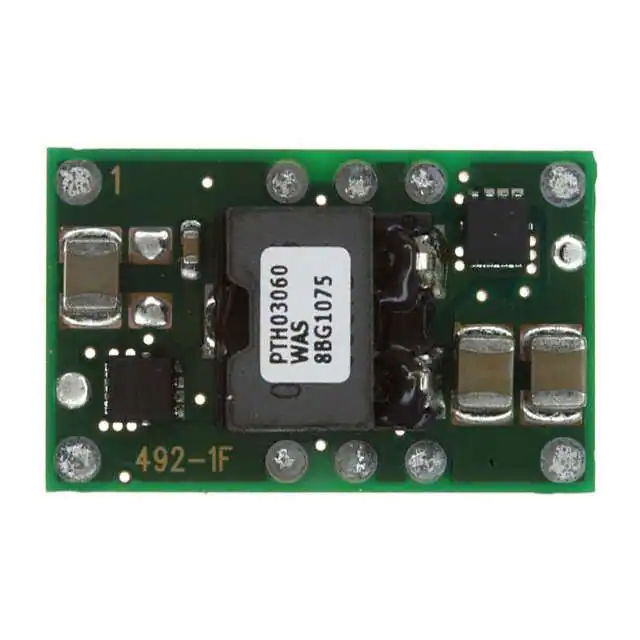

PTH03060WASDC DC CONVERTER 0.8-2.5V 25W |
36 | - |
|
Технический лист |
PTH03060W | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
ICZ0924S15DC DC CONVERTER 15V 9W |
65 | - |
|
Технический лист |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 600mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | 12-SIP | - | - | 62368-1 |
|
THI 2-2412MDC DC CONVERTER 12V 2W |
50 | - |
|
Технический лист |
THI 2M (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 165mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 71°C (With Derating) | 66% | - | - | Through Hole | 0.94" L x 0.54" W x 0.34" H (23.8mm x 13.7mm x 8.6mm) | - | - | - | - |
|
|
ICZ0924S24DC DC CONVERTER 24V 9W |
40 | - |
|
Технический лист |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | 12-SIP | - | - | 62368-1 |
|
THI 2-1211MDC DC CONVERTER 5V 2W |
31 | - |
|
Технический лист |
THI 2M (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 71°C (With Derating) | 66% | - | - | Through Hole | 0.94" L x 0.54" W x 0.34" H (23.8mm x 13.7mm x 8.6mm) | - | - | - | - |
