DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS3-4812SZ/H3DC DC CONVERTER 12V 3W |
17 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 20V | 60V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TIM 2-1215DC DC CONVERTER 24V 2W |
16 | - |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 83mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TIM 2-1219DC DC CONVERTER 9V 2W |
10 | - |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 222mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TIM 2-0911DC DC CONVERTER 5V 2W |
7 | - |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 5V | - | - | - | 400mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TIM 2-1211DC DC CONVERTER 5V 2W |
7 | - |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|

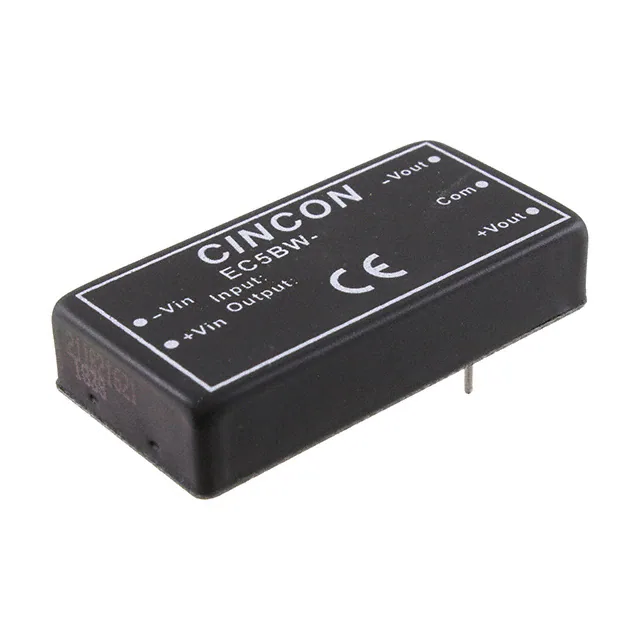

EC5BW-48S15DC DC CONVERTER 15V 15W |
21 | - |
|
Технический лист |
EC5BW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
R5M-2415D/SMD5W DC/DC-CONVERTER 'ECONOLINE' S |
20 | - |
|
Технический лист |
R5M (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 168mA, 168mA | 5.04 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
CC10-1212DR-EDC DC CNVRTR +/-12V +/-15V 10W |
20 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12 ~ 15V | -12 ~ -15V | - | - | 450mA, 450mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
CC10-4803SF-EDC DC CONVERTER 3.3V 10W |
20 | - |
|
Технический лист |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 2.5A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC10-4812DF-EDC DC CNVRTR +/-12V +/-15V 10W |
10 | - |
|
Технический лист |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 12 ~ 15V | -12 ~ -15V | - | - | 450mA, 450mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
TEN 3-2423WIDC DC CONVERTER +/-15V 3W |
20 | - |
|
Технический лист |
TEN 3WI (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | CB, cCSAus | - |
|
BLC05-12W25DC DC CONVERTER +/-12V 6W |
84 | - |
|
Технический лист |
BLC05 (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.39" H (23.2mm x 21.1mm x 10.0mm) | - | - | - | - |
|
BLC12-12W25DC DC CONVERTER +/-12V 6W |
51 | - |
|
Технический лист |
BLC12 (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.39" H (23.2mm x 21.1mm x 10.0mm) | - | - | - | - |
|
|
MDS20C-24DC DC CONVERTER 24V 20W |
7 | - |
|
Технический лист |
MDS20 (20W) | 5-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 833mA | 20 W | 4 kV | Medical | - | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, EAC | - |
|
CCG15-48-15SDC DC CONVERTER 15V 15W |
11 | - |
|
Технический лист |
CCG15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
THR 3-7212WI3 WATT DC/DC CONVERTER, INDUSTRI |
19 | - |
|
Технический лист |
THR 3WI (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 92°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
R-733.3DDC DC CONVERTER 3.3V 9.9W |
29 | - |
|
Технический лист |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 3.3V | - | - | - | 3A | 9.9 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole, Right Angle | 1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm) | - | Enable, Active High | - | - |
|
|
R-739.0DDC DC CONVERTER 9V 27W |
20 | - |
|
Технический лист |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 12V | 28V | 9V | - | - | - | 3A | 27 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 96% | - | - | Through Hole, Right Angle | 1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm) | - | Enable, Active High | - | - |
|
R-543.3PADC DC CONVERTER 3.3V 13.2W |
21 | - |
|
Технический лист |
INNOLINE R-5xxxA | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 4A | 13.2 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|
TEL 10-4811WIDC DC CONVERTER 5.1V 10W |
24 | - |
|
Технический лист |
TEL 10WI (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
