DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 20-11012WIRH20 WATT DC/DC, 4000 VAC ISOLATIO |
11 | - |
|
Технический лист |
TEN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
THL 20-2423WIDC DC CONVERTER +/-15V 20W |
4 | - |
|
Технический лист |
THL 20WI (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 670mA, 670mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-2411NDC DC CONVERTER 5V 40W |
13 | - |
|
Технический лист |
TEN 40N (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|

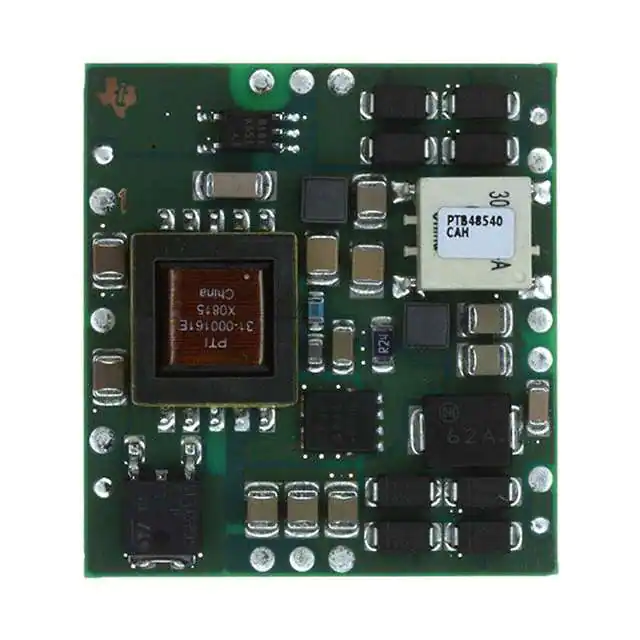

PTB48540CAHDC DC CONVERTER 12V 10W |
14 | - |
|
Технический лист |
PTB48540 (10W) | 13-DIP Module | Tray | Not For New Designs | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 12V | - | - | - | 850mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | - |
|
MGDBK04HFDC DC CONVERTER |
5 | - |
|
Технический лист |
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 130mA, 130mA | 3.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | 1.30" L x 0.79" W x 0.31" H (33.0mm x 20.0mm x 7.8mm) | - | - | - | - |
|
TEN 25-4823DC DC CONVERTER +/-15V 30W |
12 | - |
|
Технический лист |
TEN 25 (30W) | 7-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 48V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.37" H (50.8mm x 40.6mm x 9.5mm) | - | - | - | - |
|
RP20-4805SFWDC DC CONVERTER 5V 20W |
11 | - |
|
Технический лист |
POWERLINE RP20-FW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 63°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RP20-2415SFWDC DC CONVERTER 15V 20W |
14 | - |
|
Технический лист |
POWERLINE RP20-FW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 63°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
CHB75-24S33DC DC CONVERTER 3.3V 50W |
10 | - |
|
Технический лист |
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 15A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB75-12S12DC DC CONVERTER 12V 75W |
9 | - |
|
Технический лист |
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
TEN 40-2415NDC DC CONVERTER 24V 40W |
20 | - |
|
Технический лист |
TEN 40N (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 1.67A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
CHB50W-48S24DC DC CONVERTER 24V 50W |
13 | - |
|
Технический лист |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
BYH05-100S02DC DC CONVERTER 100V 200MW |
14 | - |
|
Технический лист |
BYH | 24-DIP Module, 5 Leads | Bulk | Active | High Voltage - Isolated Module | 1 | 4.75V | 5.25V | 100V | - | - | - | 2mA | 200 mW | 250 V | ITE (Commercial) | Adjustable Output | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm) | - | - | - | - |
|
PXG-M20-48WS05DC DC CONVERTER 5V 20W |
10 | - |
|
Технический лист |
PXG-M (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
|
CHB50W-48S05DC DC CONVERTER 5V 50W |
23 | - |
|
Технический лист |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB50W-48S15DC DC CONVERTER 15V 50W |
24 | - |
|
Технический лист |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
CHB100-48S12DC DC CONVERTER 12V 100W |
9 | - |
|
Технический лист |
CHB100 (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 8.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
TRI 20-1211DC DC CONVERTER 5.1V 20W |
10 | - |
|
Технический лист |
TRI 20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5.1V | - | - | - | 4A | 20 W | 8 kV | ITE (Commercial) | - | -40°C ~ 76°C | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CB, cURus | - |
|
|
CHB50W-24S05DC DC CONVERTER 5V 50W |
12 | - |
|
Технический лист |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB50W-48S12DC DC CONVERTER 12V 50W |
12 | - |
|
Технический лист |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
