DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10A12-P4-I5DC DC CONVERTER 10000V 4W |
10 | - |
|
Технический лист |
UltraVolt® 10A | Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 10000V | - | - | - | 400µA | 4 W | - | ITE (Commercial) | - | -40°C ~ 65°C | - | - | - | Through Hole | 3.72" L x 1.52" W x 1.00" H (94.6mm x 38.7mm x 25.4mm) | - | Enable, Active High | CE, cURus | - |
|
10A12-N4-I5DC DC CONVERTER 10000V 4W |
9 | - |
|
Технический лист |
UltraVolt® 10A | Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 10000V | - | - | - | 400µA | 4 W | - | ITE (Commercial) | - | -40°C ~ 65°C | - | - | - | Through Hole | 3.72" L x 1.52" W x 1.00" H (94.6mm x 38.7mm x 25.4mm) | - | Enable, Active Low | CE, cURus | - |
|
DCM3414B50M06A8T09DC DC CONVERTER 5V 180W |
2 | - |
|
Технический лист |
VI Chip® DCM® (180W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 16V | 50V | 5V | - | - | - | 36A | 180 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 125°C | 90.5% | - | - | Through Hole | 3.47" L x 1.40" W x 0.37" H (88.1mm x 35.5mm x 9.3mm) | - | - | - | - |
|

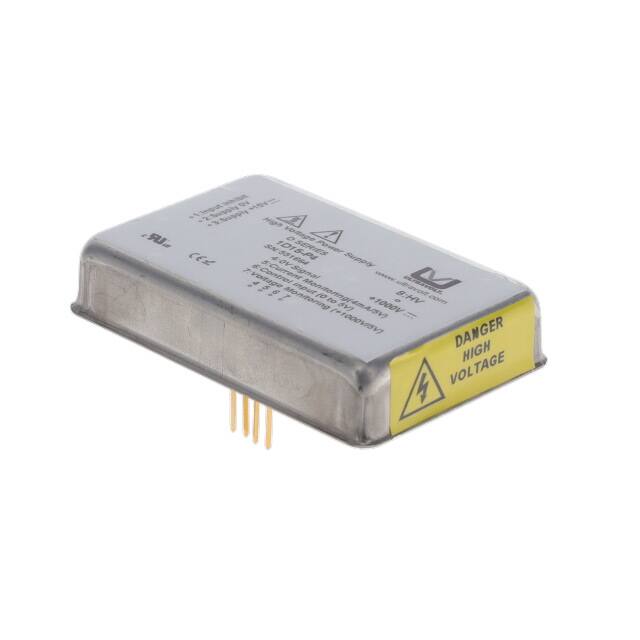

1D15-P4D-SERIES DC TO HVDC CONVERTER, S |
4 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 13.5V | 16.5V | 0 ~ 1000V | - | - | - | 4mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|

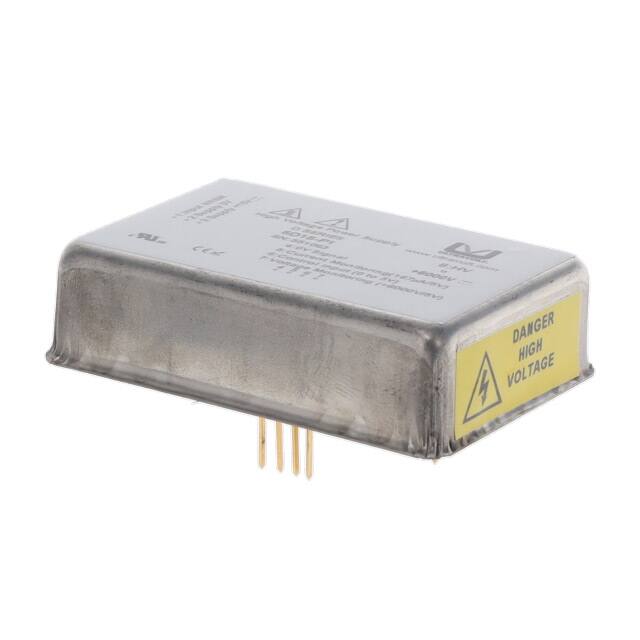

6D15-P1D-SERIES DC TO HVDC CONVERTER, S |
3 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 13.5V | 16.5V | 0 ~ 6000V | - | - | - | 170µA | 1 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|
6D24-P1D-SERIES DC TO HVDC CONVERTER, S |
3 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 6000V | - | - | - | 170µA | 1 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|
|
15A12-N4-1A-SERIES DC TO HVDC CONVERTER, S |
6 | - |
|
Технический лист |
UltraVolt® 15A | Module | Bulk | Active | High Voltage - Non-Isolated Module | 2 | 11V | 16V | 15000V | - | - | - | 260µA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | - | - | - | Through Hole | 4.70" L x 1.52" W x 1.00" H (119.4mm x 38.7mm x 25.4mm) | - | Enable, Active High | CE, cUL, cURus, UL | 60950-1 |
|
VI-264-IUDC DC CONVERTER 48V 200W |
3 | - |
|
Технический лист |
VI-200™ (200W) | Full Brick | Bulk | Active | Isolated Module | 1 | 200V | 400V | 48V | - | - | - | 4.17A | 200 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
|
VI-263-IUDC DC CONVERTER 24V 200W |
6 | - |
|
Технический лист |
VI-200™ (200W) | Full Brick | Bulk | Active | Isolated Module | 1 | 200V | 400V | 24V | - | - | - | 8.33A | 200 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
MI-J20-MYDC DC CONVERTER 5V 50W |
12 | - |
|
Технический лист |
MI-J00™ (50W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 50V | 5V | - | - | - | 10A | 50 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -55°C ~ 85°C | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
2AA12-P4AA-SERIES DC TO HVDC CONVERTER, |
3 | - |
|
Технический лист |
Ultravolt® AA | 11-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 2000V | - | - | - | 2mA | 4 W | - | ITE (Commercial) | - | -40°C ~ 65°C | - | - | - | Through Hole | 2.97" L x 1.53" W x 0.75" H (75.4mm x 38.1mm x 19.1mm) | - | Enable, Active High | CE, cURus | 60950-1 |
|
1D24-P6D-SERIES DC TO HVDC CONVERTER, S |
6 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 1000V | - | - | - | 6mA | 6 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|
BCM4414BG0F4440T10DC DC CONVERTER 34V |
6 | - |
|
Технический лист |
VI Chip® BCM® | Module | Bulk | Active | Bus Converter Module | 1 | 400V | 700V | 34V | - | - | - | 40A | - | 4.3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 97.5% | - | - | Through Hole | 4.44" L x 1.40" W x 0.37" H (112.8mm x 35.5mm x 9.3mm) | Module | - | - | - |
|
2D24-N4D-SERIES DC TO HVDC CONVERTER, S |
4 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 2000V | - | - | - | 2mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|
|
BCM4414BG0F4440T06DC DC CONVERTER 34V |
2 | - |
|
Технический лист |
VI Chip® BCM® | Module | Bulk | Active | Bus Converter Module | 1 | 400V | 700V | 34V | - | - | - | 40A | - | 4.3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 97.5% | - | - | Through Hole | 4.44" L x 1.40" W x 0.37" H (112.8mm x 35.5mm x 9.3mm) | Module | - | - | - |
|
HRL3024S6K0NDC DC CONVERTER -6000V 30W |
2 | - |
|
Технический лист |
HRL30 (30W) | 14-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 22V | 30V | -6000V | - | - | - | 5mA | 30 W | - | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 70°C | 85% | - | - | Through Hole | 3.00" L x 2.00" W x 0.73" H (76.2mm x 50.8mm x 18.6mm) | - | - | CE, UKCA, UL | 62368-1 |
|
2D24-P4D-SERIES DC TO HVDC CONVERTER, S |
5 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 2000V | - | - | - | 2mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|

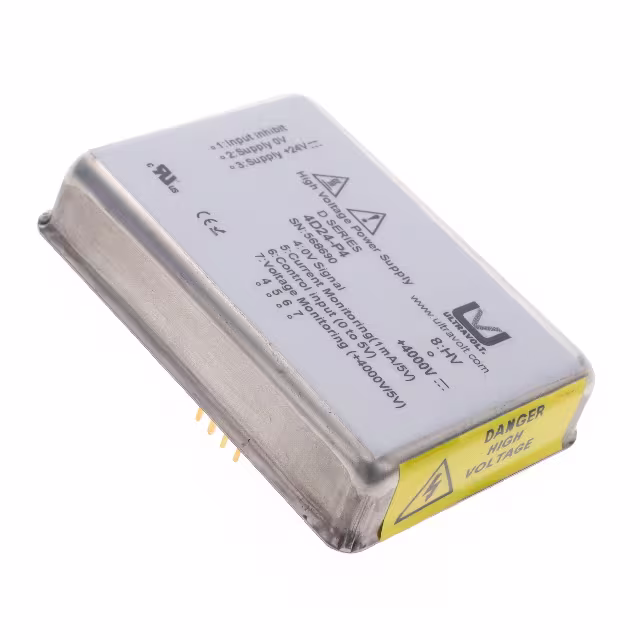

4D24-P4D-SERIES DC TO HVDC CONVERTER, S |
4 | - |
|
Технический лист |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 4000V | - | - | - | 1mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) | - | - | - | - |
|

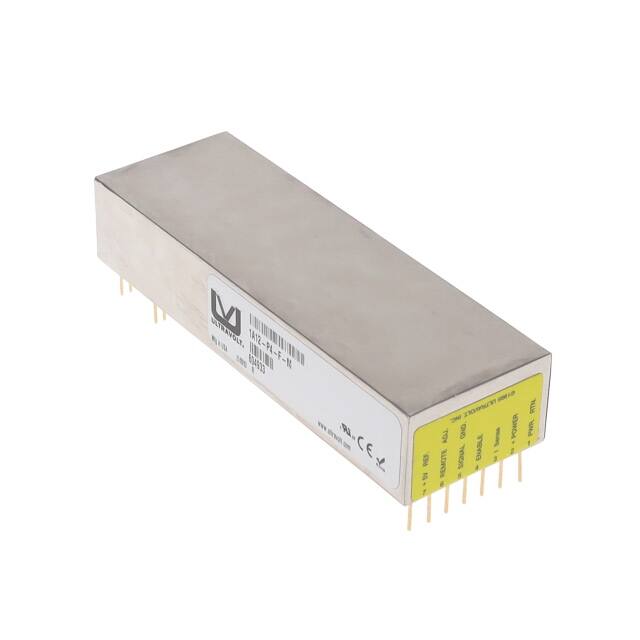

1A12-P4-F-MA-SERIES DC TO HVDC CONVERTER, S |
22 | - |
|
Технический лист |
Ultravolt® A | 11-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 1000V | - | - | - | 4mA | 4 W | - | ITE (Commercial) | - | -40°C ~ 65°C | - | - | - | Through Hole | 3.70" L x 1.50" W x 0.77" H (94.0mm x 38.1mm x 19.6mm) | - | Enable, Active High | CE, cURus | 60950-1; 62368-1 |
|
|
1/2AA12-P4-MDC DC CONVERTER 500V 4W |
4 | - |
|
Технический лист |
UltraVolt® AA | 11-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 500V | - | - | - | 8mA | 4 W | - | ITE (Commercial) | - | -40°C ~ 65°C | - | - | - | Through Hole | 3.00" L x 1.53" W x 0.78" H (76.2mm x 38.9mm x 19.9mm) | - | Enable, Active High | CE, cURus | - |
