DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RKZ-0512D/HDC DC CONVERTER +/-12V 2W |
32 | - |
|
Технический лист |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZ-2405S/PDC DC CONVERTER 5V 2W |
27 | - |
|
Технический лист |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZ-2412S/HDC DC CONVERTER 12V 2W |
8 | - |
|
Технический лист |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 168mA | 2 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
1S6W_0512S1.5RPISOLATED MODULE DC DC CONVERTERS |
30 | - |
|
Технический лист |
1S6W_1.5RP (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | CE, cURus | 60950-1 |
|
IH1205SHDC DC CONVERTER +/-5V 2W |
36 | - |
|
Технический лист |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
NTV0509MCDC DC CONVERTER +/-9V 1W |
19 | - |
|
Технический лист |
NTV (1W) | 22-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
SMT01B-15DC DC CONVERTER 15V 1W |
12 | - |
|
Технический лист |
SMT01 (1W) | 12-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 75% | - | - | Surface Mount | 0.60" L x 0.44" W x 0.28" H (15.2mm x 11.1mm x 7.1mm) | - | - | CE, EAC | - |
|
EC4A22DC DC CONVERTER 12V 5.6W |
20 | - |
|
Технический лист |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 470mA | 5.6 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC3A14HDC DC CONVERTER +/-5V 3W |
15 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC3A34HDC DC CONVERTER +/-5V 3W |
13 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC3A31HDC DC CONVERTER 5V 3W |
10 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
EC3A31H-EDC DC CONVERTER 5V 3W |
10 | - |
|
Технический лист |
EC3A-E (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC3A36H-EDC DC CONVERTER +/-15V 3W |
10 | - |
|
Технический лист |
EC3A-E (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC3A02H-EDC DC CONVERTER 12V 3W |
8 | - |
|
Технический лист |
EC3A-E (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
TEC 2-0919DC DC CONVERTER 9V 2W |
27 | - |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-0910DC DC CONVERTER 3.3V 1.7W |
25 | - |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 3.3V | - | - | - | 500mA | 1.7 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

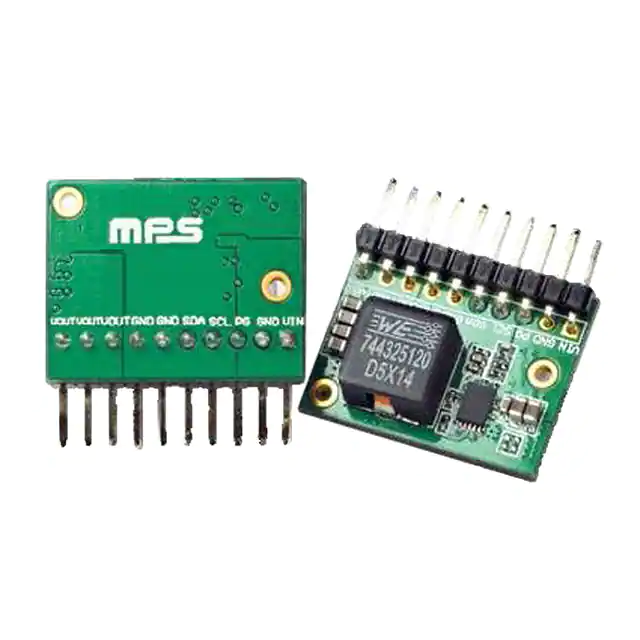

MEZD71210A-ADC DC CONVERTER 1V |
29 | - |
|
Технический лист |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 17V | 1V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
|
TEC 2-0921DC DC CONVERTER +/-5V 2W |
17 | - |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
LCW78_09-0.5NON-ISOLATED POL MODULE DC DC CO |
95 | - |
|
Технический лист |
LCW78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 14V | 75V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
1T16WE_1212S1.5RPISOLATED MODULE DC DC CONVERTERS |
8 | - |
|
Технический лист |
1T16WE_1.5RP (1W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.95" L x 0.56" W x 0.40" H (24.1mm x 14.4mm x 10.3mm) | - | - | - | - |
