DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP-053.3S/PDC DC CONVERTER 3.3V 1W |
22 | - |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
IMB0124S12DC DC CONVERTER 12V 1W |
55 | - |
|
Технический лист |
IMB01 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 4 kV | Medical | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | CB, TUV, UL | - |
|
SUW1R52415BDC DC CONVERTER +/-15V 1.5W |
27 | - |
|
Технический лист |
SUW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
|
|
IMB0105S12DC DC CONVERTER 12V 1W |
17 | - |
|
Технический лист |
IMB01 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 4 kV | Medical | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | CB, TUV, UL | - |
|

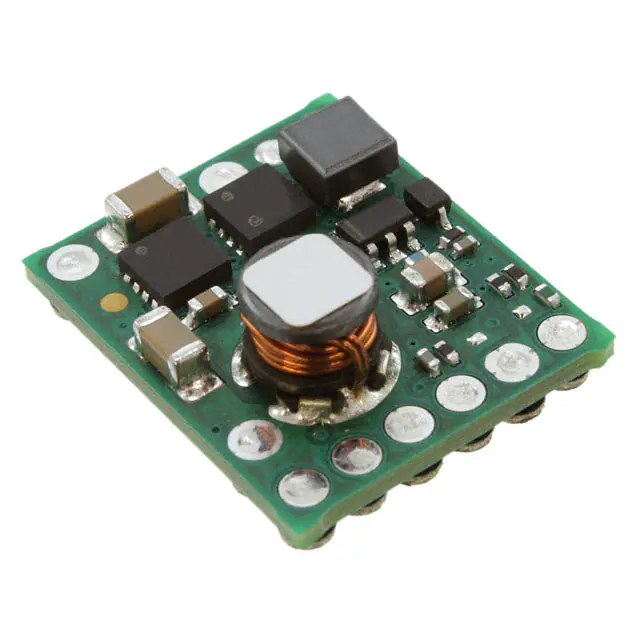

PTH04T230WASDC DC CONVERTER 0.69-3.6V |
36 | - |
|
Технический лист |
PTH04T230W | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.74" L x 0.62" W x 0.36" H (18.9mm x 15.8mm x 9.1mm) | - | - | - | - |
|
R24P05DDC DC CONVERTER +/-5V 1W |
21 | - |
|
Технический лист |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
PTH12050LAZDC DC CONVERTER 0.8-1.8V 6A |
56 | - |
|
Технический лист |
PTH12050 | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TRN 1-1222SMDC DC CONVERTER +/-12V 1.1W |
30 | - |
|
Технический лист |
TRN 1SM (1W) | 7-SMD Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 45mA, 45mA | 1.1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 83% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
|
TEM 3-1222NDC DC CONVERTER +/-12V 3W |
14 | - |
|
Технический лист |
TEM 3N (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
ITP0312S12DC DC CONVERTER 12V 3W |
45 | - |
|
Технический лист |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Through Hole | 0.67" L x 0.38" W x 0.48" H (17.0mm x 9.5mm x 12.2mm) | - | - | - | - |
|
|
ITP0324S05DC DC CONVERTER 5V 3W |
18 | - |
|
Технический лист |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 82% | - | - | Through Hole | 0.67" L x 0.38" W x 0.48" H (17.0mm x 9.5mm x 12.2mm) | - | - | - | - |
|
|
ITP0312S05DC DC CONVERTER 5V 3W |
12 | - |
|
Технический лист |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 81% | - | - | Through Hole | 0.67" L x 0.38" W x 0.48" H (17.0mm x 9.5mm x 12.2mm) | - | - | - | - |
|
IMM0205D05DC DC CONVERTER +/-5V 2W |
38 | - |
|
Технический лист |
IMM02 (2W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | Medical | Remote On/Off, OCP, OVP, SCP | -20°C ~ 100°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | - | - |
|
R15P205SDC DC CONVERTER 5V 2W |
25 | - |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
EC4AB17DC DC CONVERTER 3.3V 3.3W |
10 | - |
|
Технический лист |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1A | 3.3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 73% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | - | - |
|
|
EC4AB01DC DC CONVERTER 5V 5W |
8 | - |
|
Технический лист |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | - | - |
|
R2S-2405/PDC DC CONVERTER 5V 2W |
39 | - |
|
Технический лист |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
R1M-2412S/SMD1W DC/DC-CONVERTER 'ECONOLINE' S |
37 | - |
|
Технический лист |
R1M (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 90mA | 1.08 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
MGJ6D051510WMC-R7DC DC CONVERTER 15V -10V 6W |
25 | - |
|
Технический лист |
MGJ6 (6W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -10V | - | - | 240mA, 240mA | 6 W | 10.2 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 77.5% | - | - | Surface Mount | 1.81" L x 1.09" W x 0.36" H (46.0mm x 27.8mm x 9.2mm) | - | - | - | - |
|
|
MGJ6D241510WMC-R7DC DC CONVERTER 15V -10V 6W |
20 | - |
|
Технический лист |
MGJ6 (6W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 18V | 36V | 15V | -10V | - | - | 240mA, 240mA | 6 W | 10.2 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 81.5% | - | - | Surface Mount | 1.81" L x 1.09" W x 0.36" H (46.0mm x 27.8mm x 9.2mm) | - | - | - | - |
