DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTB12-05S60DDC DC CONVERTER 5V 3W |
40 | - |
|
Технический лист |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
|
BTB24-03S80SDC DC CONVERTER 3.3V 2.6W |
40 | - |
|
Технический лист |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 800mA | 2.6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
|
BTB05-12W12SDC DC CONVERTER +/-12V 3W |
35 | - |
|
Технический лист |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
|
BTB48-12W12DDC DC CONVERTER +/-12V 3W |
34 | - |
|
Технический лист |
BTB (3W) | Module | Bulk | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
TMR 3-1222WIEDC DC CONVERTER +/-12V 3W |
30 | - |
|
Технический лист |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
BTB12-12W12DDC DC CONVERTER +/-12V 3W |
22 | - |
|
Технический лист |
BTB (3W) | Module | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
|
BTB05-03S80DDC DC CONVERTER 3.3V 2.6W |
20 | - |
|
Технический лист |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 800mA | 2.6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
|
BTB05-05S60DDC DC CONVERTER 5V 3W |
15 | - |
|
Технический лист |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
TMR 2-4810WIDC DC CONVERTER 3.3V 1.7W |
17 | - |
|
Технический лист |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 500mA | 1.7 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
|
|
BTB24-12W12SDC DC CONVERTER +/-12V 3W |
29 | - |
|
Технический лист |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
RSO-053.3SDC DC CONVERTER 3.3V 1W |
41 | - |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
EC4AW06HMDC DC CONVERTER +/-5V 5W |
9 | - |
|
Технический лист |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TRV 2-0513M2 WATT ENCAPSULATED SIP-9 MEDICA |
12 | - |
|
Технический лист |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 7V | 15V | - | - | - | 134mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
JCE0612S24DC DC CONVERTER 24V 6W |
12 | - |
|
Технический лист |
JCE (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
RS-0509DDC DC CONVERTER +/-9V 2W |
22 | - |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
TRV 2-2412M2 WATT ENCAPSULATED SIP-9 MEDICA |
15 | - |
|
Технический лист |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 19.2V | 28.8V | 12V | - | - | - | 167mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|

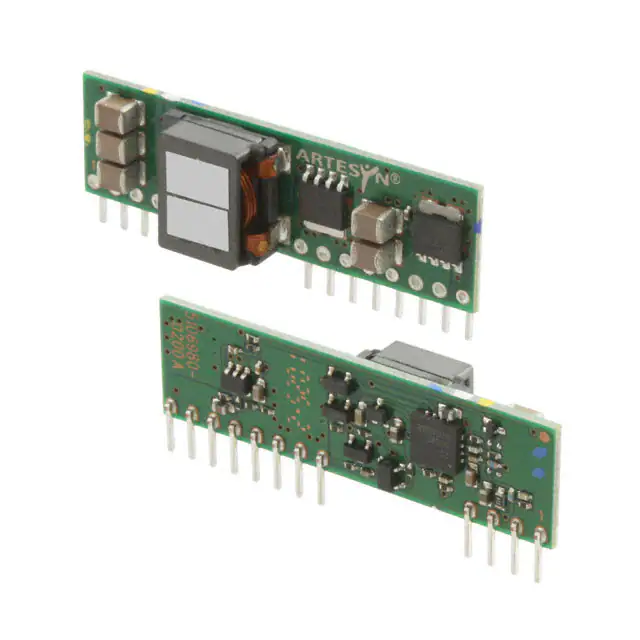

PTV12020LAHDC DC CONVERTER 0.8-1.8V |
33 | - |
|
Технический лист |
PTV12020 | 12-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 16A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm) | - | - | - | - |
|
BTC48-03S120SDC DC CONVERTER 3.3V 4W |
80 | - |
|
Технический лист |
BTC (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 1.2A | 4 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.33" H (23.2mm x 21.1mm x 8.5mm) | - | - | - | - |
|
|
BTC05-05S100SDC DC CONVERTER 5V 5W |
78 | - |
|
Технический лист |
BTC (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.33" H (23.2mm x 21.1mm x 8.5mm) | - | - | - | - |
|
|
BTC48-12W25SDC DC CONVERTER +/-12V 6W |
78 | - |
|
Технический лист |
BTC (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.33" H (23.2mm x 21.1mm x 8.5mm) | - | - | - | - |
