DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2DD151507CDC DC CONVERTER +/-15V 3.3W |
75 | - |
|
Технический лист |
- | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 13.5V | 26.4V | 15V | -15V | - | - | 110mA, 110mA | 3.3 W | 5 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.65" L x 1.57" W x 0.49" H (42.0mm x 40.0mm x 12.5mm) | - | - | - | - |
|
AXA04A36-LHS20W, 18 - 75VIN, SINGLE, 5V@4A, |
50 | - |
|
Технический лист |
AXA (20W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.22" L x 1.00" W x 0.69" H (31.0mm x 25.4mm x 17.5mm) | - | - | - | 60950-1 |
|
EC5SBW-48S15DC DC CONVERTER 15V 30W |
12 | - |
|
Технический лист |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|

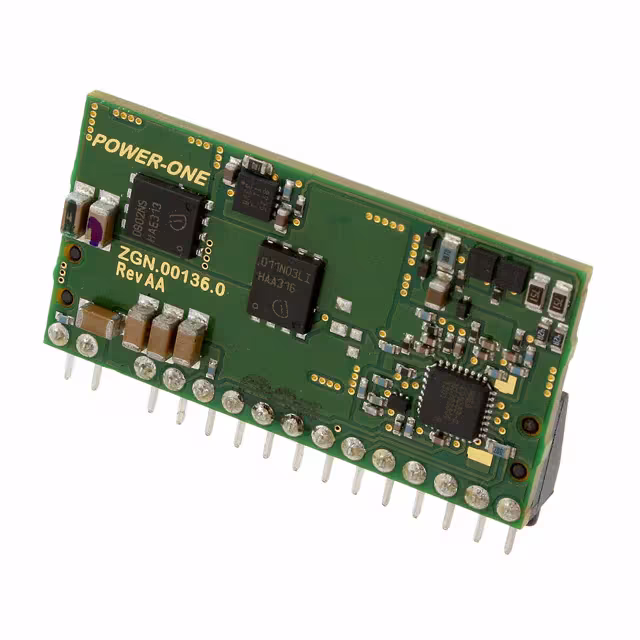

DP8120G-T100DC DC CONVERTER 0.7-5.5V |
0 | - |
|
Технический лист |
dPWER® | 16-SIP Module | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 8V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Digital, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 1.60" L x 0.41" W x 0.84" H (40.6mm x 10.4mm x 21.3mm) | - | - | - | - |
|
LTM4655IYEN55022B CMPLINT 40V DUAL 4A SNG |
0 | - |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.1V | 40V | 0.5 ~ 26.5V | -0.5 ~ -26.5V | - | - | 4A, 4A | 96 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.21" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | - | - | - |
|
THR 10-2423WI10 WATT DC/DC CONVERTER, INDUSTR |
8 | - |
|
Технический лист |
THR 10WI (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 335mA, 335mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm) | - | - | CB, cURus | 62368-1 |
|
REC3.5-0505DRW/R8/CDC DC CONVERTER +/-5V 3.5W |
24 | - |
|
Технический лист |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 350mA, 350mA | 3.5 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
.jpg)
|
REC6-0505SRW/R8/ADC DC CONVERTER 5V 6W |
16 | - |
|
Технический лист |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 6 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 77% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
15DPW_2405S1.6ISOLATED MODULE DC DC CONVERTERS |
35 | - |
|
Технический лист |
15DPW (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | - | 60950-1 |
|
JSM2524S15DC DC CONVERTER 15V 25W |
8 | - |
|
Технический лист |
JSM25 (25W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1.67A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
_Series-1-Output.jpg)
|
THM 6-1212DC DC CONVERTER 12V 6W |
28 | - |
|
Технический лист |
THM 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
THR 10-4823WI10 WATT DC/DC CONVERTER, INDUSTR |
8 | - |
|
Технический лист |
THR 10WI (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 335mA, 335mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm) | - | - | CB, cURus | 62368-1 |
|
|
RP03-11012SRAW3W DC/DC-CONVERTER 'POWERLINE' D |
14 | - |
|
Технический лист |
RP03-RAW (3W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 250mA | 3 W | 3 kV | Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 84.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CE, cURus, UKCA | 60601-1 |
|
|
RP03-11024SRAW3W DC/DC-CONVERTER 'POWERLINE' D |
28 | - |
|
Технический лист |
RP03-RAW (3W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 125mA | 3 W | 3 kV | Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CE, cURus, UKCA | 60601-1 |
|
TEL 15-1212DC DC CONVERTER 12V 15W |
13 | - |
|
Технический лист |
TEL 15 (15W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
SKA40A-12DC DC CONVERTER 12V 40W |
8 | - |
|
Технический лист |
SKA40 (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 3.33A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.43" H (50.8mm x 50.8mm x 11.0mm) | - | - | - | - |
|
REC10-2415SZ/H2/MDC DC CONVERTER 15V 10W |
11 | - |
|
Технический лист |
ECONOLINE REC10/M (10W) | 24-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 667mA | 10 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
REC10-2405SZ/H2/MDC DC CONVERTER 5V 10W |
9 | - |
|
Технический лист |
ECONOLINE REC10/M (10W) | 24-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
BTJ48-03S700DDC DC CONVERTER 3.3V 23W |
22 | - |
|
Технический лист |
BTJ (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 7A | 23 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
BTI48-03S400DDC DC CONVERTER 3.3V 13W |
23 | - |
|
Технический лист |
BTI (15W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 9.9mm) | - | - | cURus | - |
