DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICH5024WS24DC DC CONVERTER 24V 50W |
7 | - |
|
Технический лист |
ICH (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | - | 62368-1 |
|
PKM7113APIPHSDC DC CONVERTER 12V 100W |
2 | - |
|
Технический лист |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.29" H (57.9mm x 36.8mm x 32.7mm) | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
PXD40-24WD12DC DC CONVERTER +/-12V 40W |
15 | - |
|
Технический лист |
PXD40 (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.666A, 1.666A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
PKM7213APIPLHSDC DC CONVERTER 12V 150W |
13 | - |
|
Технический лист |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 1.29" H (57.9mm x 36.8mm x 32.7mm) | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
|
PKM7113APIPLHSDC DC CONVERTER 12V 100W |
9 | - |
|
Технический лист |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
PKM4817NHPIHSDC DC CONVERTER 10.8V 864W |
15 | - |
|
Технический лист |
PKM4000NH (864W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 40V | 60V | 10.8V | - | - | - | 80A | 864 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.9% | - | - | Through Hole | 2.28" L x 1.45" W x 0.56" H (57.9mm x 36.8mm x 14.3mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
CQE50W-48S48DC DC CONVERTER 48V 50W |
15 | - |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 1.04A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
|
CQE50W-24S3V3DC DC CONVERTER 3.3V 33W |
11 | - |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 10A | 33 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
TEN 40-11022WIRH40 WATT DC/DC, 4000 VAC ISOLATIO |
20 | - |
|
Технический лист |
TEN (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 12V | -12V | - | - | 1.66A, 1.66A | 41 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 70°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
|
TEN 40-11015WIRH40 WATT DC/DC, 4000 VAC ISOLATIO |
5 | - |
|
Технический лист |
TEN (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 1.666A | 41 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 70°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
RP20-11012SFR/PDC DC CONVERTER 12V 20W |
8 | - |
|
Технический лист |
POWERLINE RP20-FR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 79°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|

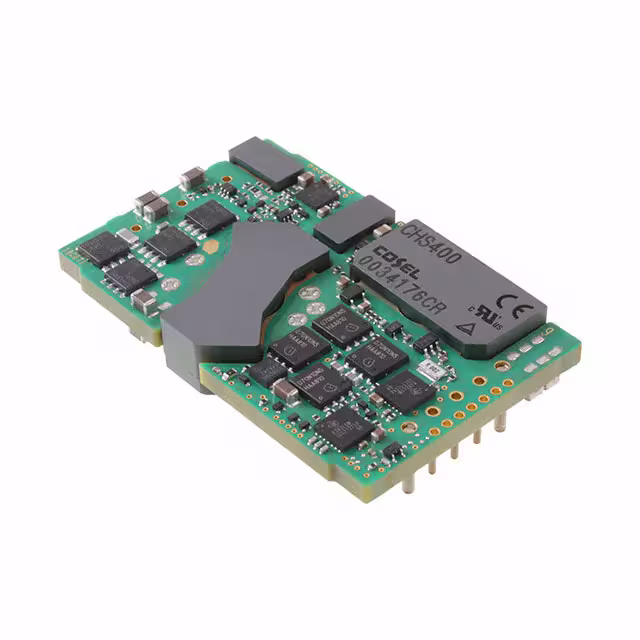

CHS4004832DC DC CONVERTER 32V 400W |
6 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 32V | - | - | - | 12.5A | 400 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
REM20-4805SWDC DC CONVERTER 5V 20W |
1 | - |
|
Технический лист |
MEDLINE REM20-W (20W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THM 30-1223DC DC CONVERTER +/-15V 30W |
2 | - |
|
Технический лист |
THM 30 (30W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 1A, 1A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
TEN 40-11011WIRH40 WATT DC/DC, 4000 VAC ISOLATIO |
18 | - |
|
Технический лист |
TEN (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 5.1V | - | - | - | 8A | 41 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 70°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|
THR 40-7215WI40 WATT DC/DC CONVERTER, INDUSTR |
4 | - |
|
Технический лист |
THR 40WI (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 1.67A | 40 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 70°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm) | - | - | CB, cURus | 62368-1 |
|
TEN 20-7213WIRDC DC CONVERTER 15V 20W |
4 | - |
|
Технический лист |
TEN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 1.33A | 20 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 20-2413WIDC DC CONVERTER 15V 20W |
9 | - |
|
Технический лист |
TEN 20WI (20W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|
|
PKM7111APIPLHSDC DC CONVERTER 5V 100W |
4 | - |
|
Технический лист |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 5V | - | - | - | 20A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 87% | - | - | Through Hole | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
REM15-2415DWDC DC CONVERTER +/-15V 15W |
11 | - |
|
Технический лист |
MEDLINE REM15-W (15W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
