DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R12P215D/R6.4DC DC CONVERTER +/-15V 2W |
15 | - |
|
Технический лист |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
IMM0524D15DC DC CONVERTER +/-15V 5W |
34 | - |
|
Технический лист |
IMM05 (5W) | 9-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 166mA, 166mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
|
IMM0524D12DC DC CONVERTER +/-12V 5W |
14 | - |
|
Технический лист |
IMM05 (5W) | 9-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 208mA, 208mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
|
IMM0512D12DC DC CONVERTER +/-12V 5W |
10 | - |
|
Технический лист |
IMM05 (5W) | 9-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 208mA, 208mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|

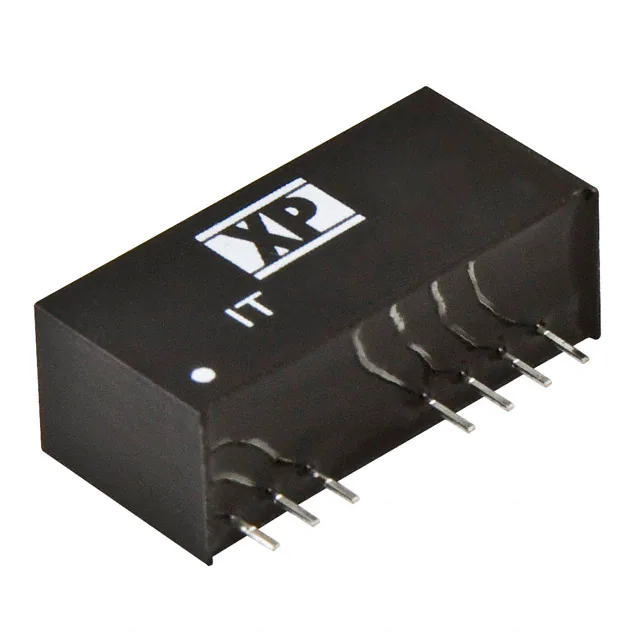

IT4812SADC DC CONVERTER 12V 3W |
9 | - |
|
Технический лист |
IT (3W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|
|
IT4803SADC DC CONVERTER 3.3V 3W |
7 | - |
|
Технический лист |
IT (3W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|
IEU0205D12DC DC CONVERTER +/-12V 2W |
24 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 10V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0248D12DC DC CONVERTER +/-12V 2W |
20 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 84% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0248D15DC DC CONVERTER +/-15V 2W |
20 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 84% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0212D15DC DC CONVERTER +/-15V 2W |
14 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 86% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0205D15DC DC CONVERTER +/-15V 2W |
10 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 10V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0224D15DC DC CONVERTER +/-15V 2W |
9 | - |
|
Технический лист |
IEU02 (2W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C (With Derating) | 86% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
.jpg)
|
REC3-0505SRW/H2/ADC DC CONVERTER 5V 3W |
17 | - |
|
Технический лист |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 79% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RAA210130GBG#AD0RAA210130GBG#AD0 |
89 | - |
|
Технический лист |
RAA210130 | 130-BBGA Module | Bulk | Active | Non-Isolated PoL Module, Digital | 1 | 4.75V | 15V | 0.45 ~ 3.3V | - | - | - | 30A | - | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 105°C | 96% | - | - | Surface Mount | 0.51" L x 0.39" W x 0.30" H (13.0mm x 10.0mm x 7.7mm) | 130-BGA (10x13) | - | - | - |
|
RW-2405S/SMDDC DC CONVERTER 5V 3W |
33 | - |
|
Технический лист |
ECONOLINE RW-S (3W) | 24-SMD Module, 13 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 78% | - | - | Surface Mount | 1.26" L x 0.57" W x 0.40" H (32.0mm x 14.5mm x 10.2mm) | - | - | - | - |
|
RS-4812SZDC DC CONVERTER 12V 2W |
23 | - |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 166mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RW2-0512D/SMDDC DC CONVERTER +/-12V 2W |
28 | - |
|
Технический лист |
ECONOLINE RW2 (2W) | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm) | - | - | - | - |
|
TRN 3-0512SMDC DC CONVERTER 12V 3W |
10 | - |
|
Технический лист |
TRN 3SM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
|
|
TRN 3-2412SMDC DC CONVERTER 12V 3W |
8 | - |
|
Технический лист |
TRN 3SM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
|
JCD0648S24DC DC CONVERTER 24V 6W |
18 | - |
|
Технический лист |
JCD (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 24V | - | - | - | 250mA | 6 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
