DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REM2A-1205S2W DC/DC-CONVERTER 'MEDLINE' DIP |
20 | - |
|
Технический лист |
REM2A (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | Enable, Active High | cURus, UL | 60601-1; 62368-1 |
|
|
REM2A-1212S2W DC/DC-CONVERTER 'MEDLINE' DIP |
10 | - |
|
Технический лист |
REM2A (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | Enable, Active High | cURus, UL | 60601-1; 62368-1 |
|
|
REM2A-0512S2W DC/DC-CONVERTER 'MEDLINE' DIP |
10 | - |
|
Технический лист |
REM2A (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 12V | - | - | - | 167mA | 2 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | Enable, Active High | cURus, UL | 60601-1; 62368-1 |
|
CC10-0512SR-EDC DC CONVERTER 12-15V 10W |
30 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12 ~ 15V | - | - | - | 800mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-4803SR-EDC DC CONVERTER 3.3V 10W |
10 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 2.5A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-4805SR-EDC DC CONVERTER 5V 10W |
10 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-4812DR-EDC DC CNVRTR +/-12V +/-15V 10W |
10 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 12 ~ 15V | -12 ~ -15V | - | - | 450mA, 450mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-4812SR-EDC DC CONVERTER 12-15V 10W |
10 | - |
|
Технический лист |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 12 ~ 15V | - | - | - | 1A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
REC5-2415SRWZ/H4/A/MDC DC CONVERTER 15V 5W |
25 | - |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 340mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
TSR 3-1250ADC DC CONVERTER 0.59-6V 18W |
11 | - |
|
Технический лист |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 4.5V | 14V | 0.59 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.61" L x 0.37" W x 0.24" H (15.5mm x 9.4mm x 6.2mm) | - | - | - | - |
|
HEA2-24-12DC DC CONVERTER +/-12V 2W |
53 | - |
|
Технический лист |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | CE | - |
|
TIM 2-4813DC DC CONVERTER 15V 2W |
20 | - |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 134mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
|
REM2A-2405S2W DC/DC-CONVERTER 'MEDLINE' DIP |
20 | - |
|
Технический лист |
REM2A (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | Enable, Active High | cURus, UL | 60601-1; 62368-1 |
|
TDR 2-1223SMDC DC CONVERTER +/-15V 2W |
20 | - |
|
Технический лист |
TDR 2SM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TDN 5-0915WISMDC DC CONVERTER 24V 5W |
10 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 210mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
|
TDN 5-2413WISMDC DC CONVERTER 15V 5W |
10 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 333mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
TDN 5-2419WISMDC DC CONVERTER 9V 5W |
9 | - |
|
Технический лист |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 555mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | UL | 60950-1; 62368-1 |
|
TDR 2-1222SMDC DC CONVERTER +/-12V 2W |
8 | - |
|
Технический лист |
TDR 2SM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|

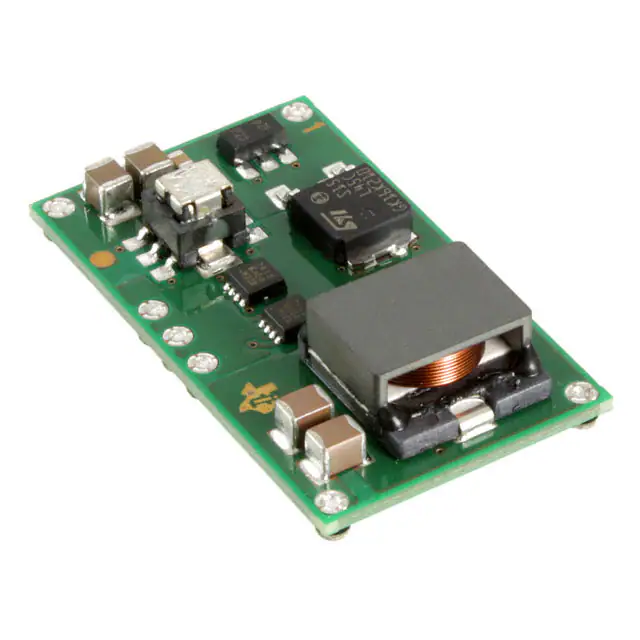

PTN78020AASDC DC CONVERTER -15 TO -3V |
23 | - |
|
Технический лист |
PTN78020A (25W) | 7-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 9V | 29V | -15 ~ -3V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm) | - | - | - | - |
|
JSE0812S3V3DC DC CONVERTER 3.3V 8W |
21 | - |
|
Технический лист |
JSE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 105°C | 78% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | - | 62368-1 |
