DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K7815JT-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
326 | - |
|
Технический лист |
K78_JT-500R3-LB | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | 0.47" L x 0.47" W x 0.18" H (12.0mm x 12.0mm x 4.5mm) | - | - | CE | 62368-1 |
|
K78X6JT-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
227 | - |
|
Технический лист |
K78_JT-500R3-LB | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 36V | 6.5V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Surface Mount | 0.47" L x 0.47" W x 0.18" H (12.0mm x 12.0mm x 4.5mm) | - | - | CE | 62368-1 |
|
K7805JT-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
40 | - |
|
Технический лист |
K78_JT-500R3-LB | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Surface Mount | 0.47" L x 0.47" W x 0.18" H (12.0mm x 12.0mm x 4.5mm) | - | - | CE | 62368-1 |
|
K7803-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
914 | - |
|
Технический лист |
K78XX-500R3-LB | 3-SIP Module | Tray | Not For New Designs | Linear Regulator Replacement | 1 | 4.75V, 7V | 36V, 32V | 3.3V, -3.3V | - | - | - | 500mA, 300mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.40" L x 0.24" W x 0.34" H (10.3mm x 6.0mm x 8.6mm) | - | - | CE | 62368-1 |
|
K7805-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
757 | - |
|
Технический лист |
K78XX-500R3-LB | 3-SIP Module | Tray | Not For New Designs | Linear Regulator Replacement | 1 | 6.5V, 7V | 36V, 31V | 5V, -5V | - | - | - | 500mA, 300mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 0.40" L x 0.24" W x 0.34" H (10.3mm x 6.0mm x 8.6mm) | - | - | CE | 62368-1 |
|
K78X6-500R3-LBLINEAR REGULATOR REPLACEMENT DC |
550 | - |
|
Технический лист |
K78XX-500R3-LB | 3-SIP Module | Tray | Not For New Designs | Linear Regulator Replacement | 1 | 8V, 7V | 36V, 29V | 6.5V, -6.5V | - | - | - | 500mA, 300mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.40" L x 0.24" W x 0.34" H (10.3mm x 6.0mm x 8.6mm) | - | - | CE | 62368-1 |
|
LMTO78_12-0.5DC-DC POL |
96 | - |
|
Технический лист |
LMTO78_0.5 | 4-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm) | - | - | CE | 60950-1; 62368-1 |
|
|
LMTO78_15-0.5DC-DC POL |
95 | - |
|
Технический лист |
LMTO78_0.5 | 4-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm) | - | - | CE | 60950-1; 62368-1 |
|
B0309S-1WR3DC DC CONVERTER 9V 1W |
42 | - |
|
Технический лист |
B0309S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
A1509S-1WR3DC DC CONVERTER +/-9V 1W |
47 | - |
|
Технический лист |
A1509S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
A1524S-1WR3DC DC CONVERTER +/-24V 1W |
33 | - |
|
Технический лист |
A1524S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
D78B09-0.5DC DC CONVERTER 9V 0.5A |
32 | - |
|
Технический лист |
D78BXX | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 11V | 32V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.1mm) | - | - | - | - |
|

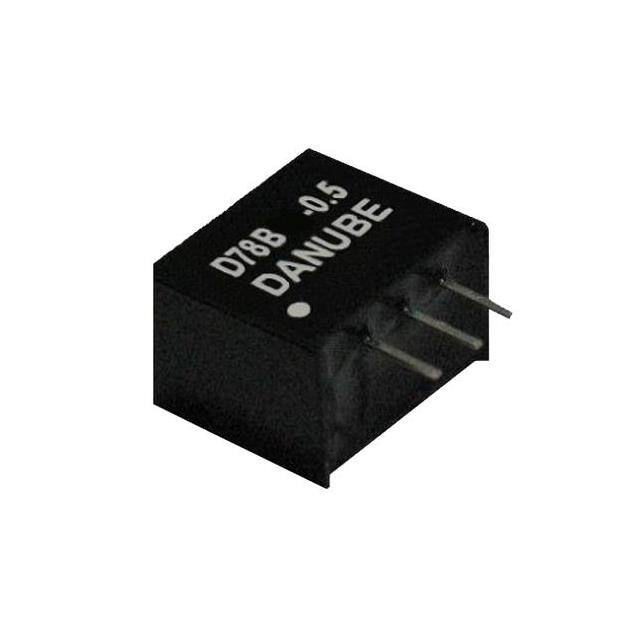

D78B15-0.5DC DC CONVERTER 15V 0.5A |
42 | - |
|
Технический лист |
D78BXX | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.1mm) | - | - | - | - |
|
|
IB0512LS-1WR3DC DC CONVERTER 12V 1W |
52 | - |
|
Технический лист |
IB05_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UKCA | 62368-1 |
|
F1509N-1WR3DC DC CONVERTER 9V 1W |
40 | - |
|
Технический лист |
F1509N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm) | - | - | CE | 62368-1 |
|
F0507N-1WR3DC DC CONVERTER 7.2V 1W |
33 | - |
|
Технический лист |
F0507N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 7.2V | - | - | - | 139mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm) | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
F1209N-1WR3DC DC CONVERTER 9V 1W |
32 | - |
|
Технический лист |
F1209N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm) | - | - | CE | 62368-1 |
|
B0303LS-1WR3DC DC CONVERTER 3.3V 1W |
87 | - |
|
Технический лист |
B0303LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
B0305LS-1WR3DC DC CONVERTER 5V 1W |
86 | - |
|
Технический лист |
B0305LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
NUS-1209ADC DC CONVERTER 9V 1W |
76 | - |
|
Технический лист |
NU | 8-SMD Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 71°C | 78% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.37" H (13.8mm x 10.5mm x 9.3mm) | - | - | - | - |
