DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IF2412XT-1WR3ISOLATED MODULE DC DC CONVERTER |
27 | - |
|
Технический лист |
IF_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE | 62368-1 |
|
|
IB0509XT-W75R3ISOLATED MODULE DC DC CONVERTER |
26 | - |
|
Технический лист |
IB05_XT-W75R3 (750mW) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 9V | - | - | - | 83mA | 747 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, EN, UKCA | 62368-1 |
|
A1224D-2WR3DC DC CONVERTER +/-24V 2W |
59 | - |
|
Технический лист |
A1224D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
A1212D-2WR3DC DC CONVERTER +/-12V 2W |
57 | - |
|
Технический лист |
A1212D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
A1215D-2WR3DC DC CONVERTER +/-15V 2W |
47 | - |
|
Технический лист |
A1215D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
|
A2409S-2WR3ISOLATED MODULE DC DC CONVERTER |
45 | - |
|
Технический лист |
A_S-2WR3 (2W) | 6-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 1.99 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus | 62368-1 |
|
A1205D-2WR3DC DC CONVERTER +/-5V 2W |
34 | - |
|
Технический лист |
A1205D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
|
A2407S-2WR3ISOLATED MODULE DC DC CONVERTER |
32 | - |
|
Технический лист |
A_S-2WR3 (2W) | 6-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 7.2V | -7.2V | - | - | 139mA, 139mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus | 62368-1 |
|

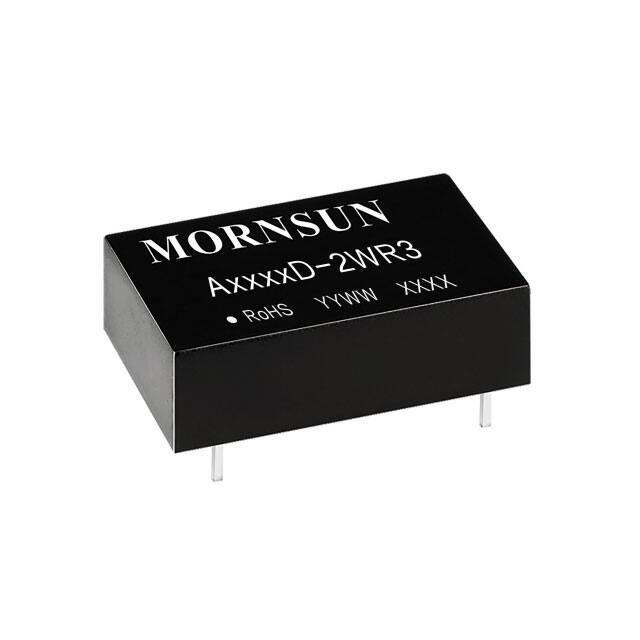

A1209D-2WR3DC DC CONVERTER +/-9V 2W |
30 | - |
|
Технический лист |
A1209D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
|
H2409S-1WR3ISOLATED MODULE DC DC CONVERTER1 |
29 | - |
|
Технический лист |
H_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Through Hole | 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm) | - | - | - | 60601-1; 62368-1 |
|
|
AM1D-050707DZDC DC CONVERTER 2X7.2V 1W |
26 | - |
|
Технический лист |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 7.2V | 7.2V | - | - | 69mA, 69mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
A0509D-2WR3DC DC CONVERTER +/-9V 2W |
93 | - |
|
Технический лист |
A0509D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 9V | -9V | - | - | 111mA, 111mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|

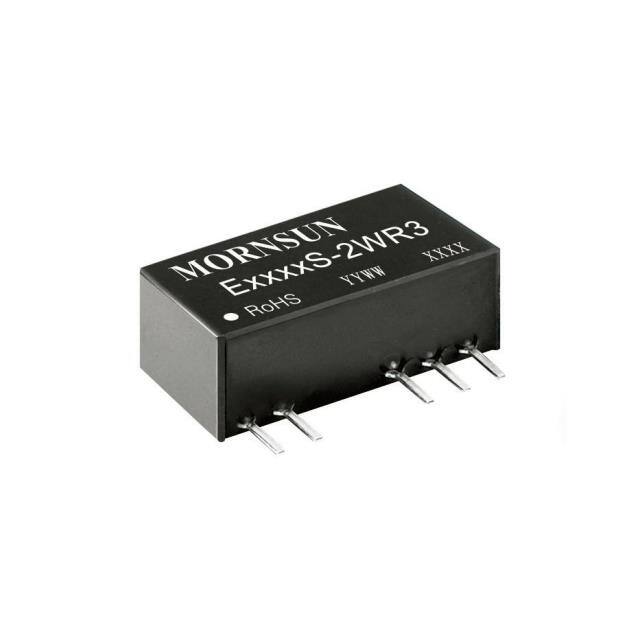

E0524S-2WR3DC DC CONVERTER +/-24V 2W |
69 | - |
|
Технический лист |
E0524S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
F0505D-2WR3DC DC CONVERTER 5V 2W |
56 | - |
|
Технический лист |
F0505D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
E0524D-2WR3DC DC CONVERTER +/-24V 2W |
55 | - |
|
Технический лист |
E0524D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|

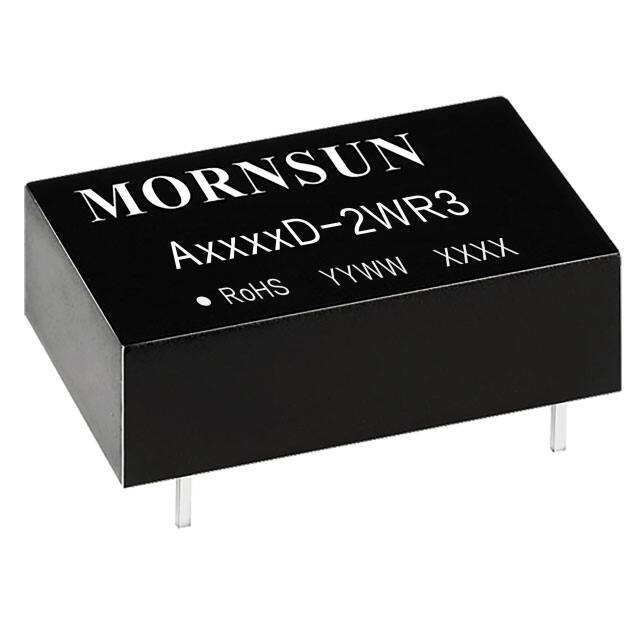

A0503D-2WR3DC DC CONVERTER +/-3.3V 2W |
50 | - |
|
Технический лист |
A0503D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 3.3V | -3.3V | - | - | 303mA, 303mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
F0515D-2WR3DC DC CONVERTER 15V 2W |
50 | - |
|
Технический лист |
F0515D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
A0512D-2WR3DC DC CONVERTER +/-12V 2W |
50 | - |
|
Технический лист |
A0512D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 83mA, 83mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
E0509D-2WR3DC DC CONVERTER +/-9V 2W |
50 | - |
|
Технический лист |
E0509D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
F0503D-2WR3DC DC CONVERTER 3.3V 2W |
42 | - |
|
Технический лист |
F0503D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
