РЧ-антенны
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEACBK189085-MLWFGL5AM/FM/GPS/WIFI/LTE MIMO COMB ANT |
39 | - |
|
Технический лист |
AEAC | Bulk | Active | Cellular, Navigation, WiFi | UHF (1GHz ~ 2GHz) | 1.0745MHz, 92MHz, 829MHz, 1.176GHz, 1.575GHz, 2.2GHz, 2.4417GHz, 3.35GHz, 5.4GHz | 520kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Module | 9 | 2, 3 | - | 1dBi, 8dBi, 4dBi, 4dBi | - | Cable - 3m, LNA | SMA, Mini-DIN Female | IP67 | - | - | Panel Mount | 3.346" (85.00mm) | GNSS, GPS, LTE, Wi-Fi |
|
MA350.A.LBICG.003STEEDAN 5IN1 MAGNET MOUNT 3M:GPS |
41 | - |
|
Технический лист |
Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Dome | 11 | - | -6dB | -3.2dBi, -2.47dBi, -2.04dBi, 1dBic, -3.88dBi, -3.33dBi, -3.24dBi, -3.27dBi, -2.94dBi, -4.34dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 1.881" (47.78mm) | Beidou, DCS, Galileo, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
EAHP.60.01.0100DEMBEDDED ACTIVE ANTENNA FOR GNSS |
34 | - |
|
Технический лист |
- | Bag | Active | Navigation | Wide Band | 1.176GHz, 1.207GHz, 1.227GHz, 1.248GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Module | 9 | 1 | - | 6.67dBi, 6.24dBi, 6.76dBi, 6.76dBi, 6.27dBi, 4.74dBi, 3.74dBi, 3.74dBi, 2.57dBi | - | LNA, Filter | SMA Male | - | - | - | Chassis Mount | 1.732" (44.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS |
|
|
TGX.08.A.0015G 8IN1 ANTENNA |
42 | - |
|
Технический лист |
- | Bulk | Active | Cellular | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.47MHz, 1.96GHz, 2.49GHz, 3.55GHz, 3.75GHz, 4.7GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Module | 10 | - | - | 2.01dBi, 4.38dBi, 4.72dBi, 5.24dBi, 4.15dBi, 5.41dBi, 5.27dBi, 5.27dBi, 4.69dBi, 4.73dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 2.362" (60.00mm) | 5G |
|
|
MA8010.A.00110IN1 SCREWMOUNT 1*GNSS, 4*5G/4G |
102 | - |
|
Технический лист |
- | Canister | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AMCA31-2R800G-S1F-T3RF ANT 2.8GHZ CHIP SOLDER SMD |
0 | - |
|
Технический лист |
AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.8GHz | 2.725GHz ~ 2.875GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | WiMax™, WLAN |
|
|
2108517-1RF ANT 2.4GHZ STAMPED MET SLD |
0 | - |
|
Технический лист |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.189" (4.80mm) | Wi-Fi |
|

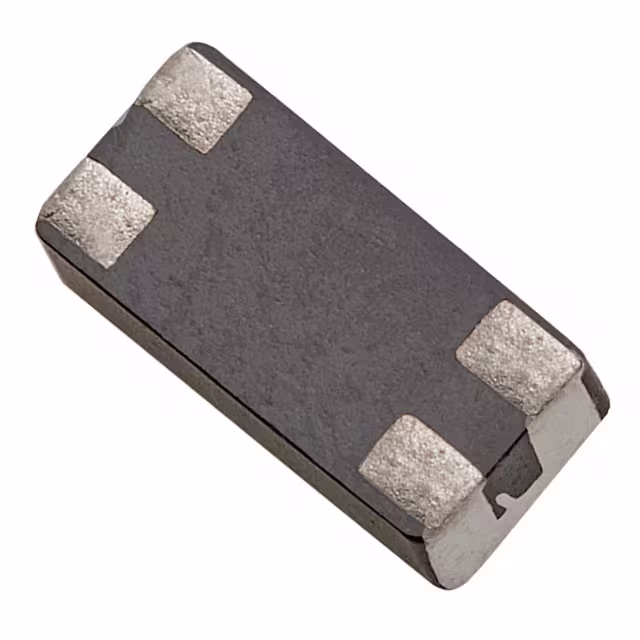

2042830001LOW PROFILE GNSS CERAMIC ANTENNA |
6,000 | - |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2450AT18E0100001ERF ANT 2.4GHZ CHIP SOLDER SMD |
3,000 | - |
|
Технический лист |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -4.4dB | 1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
2108789-2PCB ANTENNA SINGLE BAND TAPE AND |
0 | - |
|
Технический лист |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H2U34C1H1B0100UNICTRON CW201 - WIFI / BLUETOOT |
11,343 | - |
|
Технический лист |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | - | - | 1.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
RCA-5220-A0-TRRF ANT 2.450GHZ CHIP SOLDER SMD |
1,571 | - |
|
Технический лист |
RCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | General Purpose |
|
RCA-W2A1-3216-Z-040RF ANT 2400MHZ-2500MHZ CHIP SLD |
1,471 | - |
|
Технический лист |
RCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -10dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|
SATCA-2A1CG-WFB7RF ANT 2400-2500MHZ PATCH SMD |
4,484 | - |
|
Технический лист |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | - | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SZC-C-0W02RF ANT 2.4GHZ CHIP SOLDER SMD |
13,790 | - |
|
Технический лист |
SIRIUSa | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.75 | -11dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, ISM |
|
SATCA-3C1GF-WFB8RF ANT 2400-2500MHZ PATCH SMD |
4,132 | - |
|
Технический лист |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SZC-C-0M01ISM 868/915MHZ SMD ANTENNA |
20,000 | - |
|
Технический лист |
VEGA | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 889MHz | 863MHz ~ 915MHz | Chip | 1 | 2.1 | -8.5dB | 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | LoRa, ISM |
|
|
SZC-C-1G18RF ANT GNSS CHIP SOLDER SMD |
15,970 | - |
|
Технический лист |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 1.7 | -12.5dB | 3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | GNSS |
|
ANT025020LCT1575MA1RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,503 | - |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | - | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | 1.3, 1.8, 2.4 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | - |
|
1513797-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 | - |
|
Технический лист |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2.5 | - | 1dB | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
