DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMU02L-12DC DC CONVERTER 12V 2W |
23 | - |
|
Технический лист
|
SMU02 (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.1mm) | - | - | - | - |
|
IA1215SDC DC CONVERTER +/-15V 1W |
0 | - |
|
Технический лист
|
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA2405SDC DC CONVERTER +/-5V 1W |
0 | - |
|
Технический лист
|
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
173950336DC DC CONVERTER 3.3V |
0 | - |
|
Технический лист
|
MagI³C, FDSM | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | - | - | 92% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|

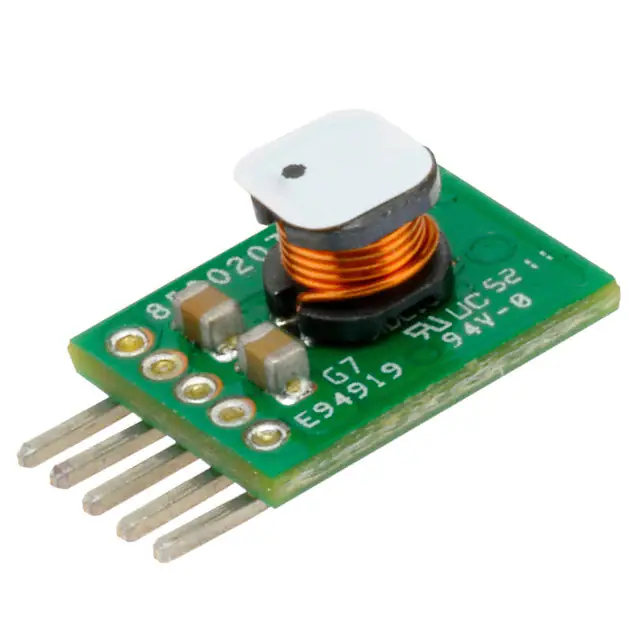

NQR002A0X4ZDC DC CONVERTER 0.6-5.5V 11W |
0 | - |
|
Технический лист
|
Naos Raptor | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 3V | 14V | 0.6 ~ 5.5V | - | - | - | 2A | 11 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | - | - | - | Through Hole | 0.41" L x 0.32" W x 0.53" H (10.4mm x 8.1mm x 13.5mm) | - | Enable, Active High | - | - |
|
MER1S0509SCDC DC CONVERTER 9V 1W |
15 | - |
|
Технический лист
|
MER1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
LMW78_12-0.5RLNON-ISOLATED POL MODULE DC DC CO |
0 | - |
|
Технический лист
|
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 90V | 12V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) | - | - | - | - |
|
|
LMW78_05-0.5RLNON-ISOLATED POL MODULE DC DC CO |
0 | - |
|
Технический лист
|
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) | - | - | - | - |
|
SPAN02C-05DC DC CONVERTER 5V 2W |
0 | - |
|
Технический лист
|
SPAN02 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
EPM0510SJADC DC CONVERTER 5V 5W |
13 | - |
|
Технический лист
|
EPM | 14-DIP Module, 9 Leads | Box | Active | Isolated Module | 1 | 110V | 450V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP | -20°C ~ 80°C | 70% | - | - | Through Hole | 1.30" L x 1.22" W x 0.81" H (33.0mm x 31.0mm x 20.7mm) | - | - | - | - |
|
ITR0305S05DC-DC 3W 10% INPUT |
0 | - |
|
Технический лист
|
ITR03 (3W) | 3-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) | 3-SIP Module | - | - | - |
|
MTE1S2405MCDC DC CONVERTER 5V 1W |
0 | - |
|
Технический лист
|
MTE1 (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
MEV1S1505SCDC DC CONVERTER 5V 1W |
10 | - |
|
Технический лист
|
MEV1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
MEV1D0512SCDC DC CONVERTER +/-12V 1W |
4 | - |
|
Технический лист
|
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
TES 1-1211DC DC CONVERTER 5V 1W |
0 | - |
|
Технический лист
|
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 76% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
P78A03-0500DC DC CONVERTER 3.3V 2W |
15 | - |
|
Технический лист
|
P78A-0500 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6V | 28V | 3.3V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | - | - |
|
OKX-T/5-D12P-CDC DC CONVERTER 0.7525-5.5V 25W |
0 | - |
|
Технический лист
|
Okami™ OKX-T/5-D12 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8.3V | 13.8V | 0.7525 ~ 5.5V | - | - | - | 5A | 25 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.90" L x 0.28" W x 0.40" H (22.9mm x 7.1mm x 10.2mm) | - | Enable, Active High | - | - |
|
RO-243.3SDC DC CONVERTER 3.3V 1W |
25 | - |
|
Технический лист
|
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TES 1-0510DC DC CONVERTER 3.3V 990MW |
14 | - |
|
Технический лист
|
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 300mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 73% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
RB-1212DDC DC CONVERTER +/-12V 1W |
25 | - |
|
Технический лист
|
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
