DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB-0512DDC DC CONVERTER +/-12V 1W |
0 | - |
|
Технический лист
|
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
NKE0503DCDC DC CONVERTER 3.3V 1W |
10 | - |
|
Технический лист
|
NKE (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
NKE0305DCDC DC CONVERTER 5V 1W |
0 | - |
|
Технический лист
|
NKE (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
NMG0505SCDC DC CONVERTER 5V 2W |
0 | - |
|
Технический лист
|
NMG (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|

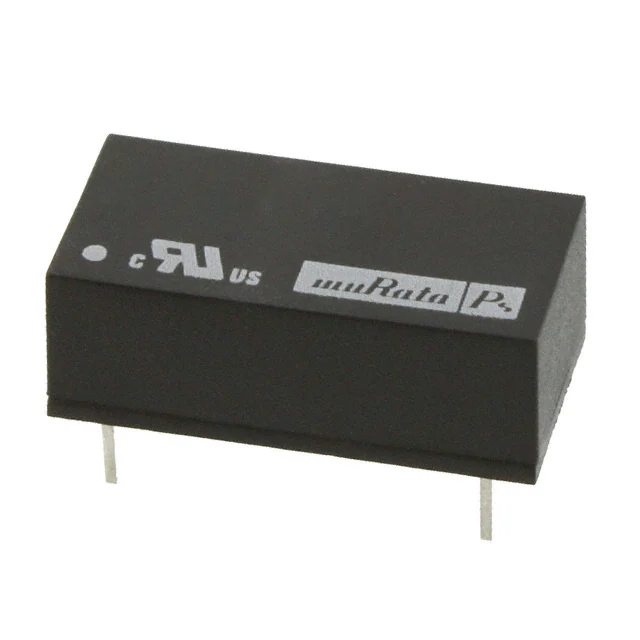

NKA1215DCDC DC CONVERTER +/-15V 1W |
0 | - |
|
Технический лист
|
NKA (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.21" H (19.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
SPBW03G-03DC DC CONVERTER 3.3V 2.3W |
0 | - |
|
Технический лист
|
SPBW03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | - | - |
|
RNM-053.3SDC DC CONVERTER 3.3V 1W |
0 | - |
|
Технический лист
|
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.33" L x 0.33" W x 0.27" H (8.3mm x 8.3mm x 6.8mm) | - | - | - | - |
|
R1S-053.3DC DC CONVERTER 3.3V 1W |
5 | - |
|
Технический лист
|
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RS3K-2412DZ/H33W DC/DC-CONVERTER 'ECONOLINE' S |
15 | - |
|
Технический лист
|
ECONOLINE RS3K-Z (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | 8-SIP | Enable, Active High | cURus | 62368-1 |
|
3S7B_1209S3UPISOLATED MODULE DC DC CONVERTERS |
3 | - |
|
Технический лист
|
3S7B_3UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
NTE0509MCDC DC CONVERTER 9V 1W |
0 | - |
|
Технический лист
|
NTE (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm) | - | - | - | - |
|
PCN2-S12-S5-SDC DC CONVERTER 5V 2W |
0 | - |
|
Технический лист
|
PCN2-S (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
PUC0505S1BDC DC CONVERTER 5V 1W |
0 | - |
|
Технический лист
|
PUC-1B (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 100°C (With Derating) | 70% | - | - | Through Hole | 0.78" L x 0.28" W x 0.45" H (19.7mm x 7.1mm x 11.5mm) | - | - | cURus, IEC, UL | 62368-1 |
|
NMK1215SCDC DC CONVERTER +/-15V 2W |
16 | - |
|
Технический лист
|
NMK (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm) | - | - | - | - |
|
NMK2412SACDC DC CONVERTER 12V 2W |
0 | - |
|
Технический лист
|
NMK (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm) | - | - | - | - |
|
IE1203SHDC DC CONVERTER 3.3V 1W |
19 | - |
|
Технический лист
|
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 300mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
SPU03N-05DC DC CONVERTER 5V 3W |
0 | - |
|
Технический лист
|
SPU03 (3W) | 7-SIP Module, 4 Leads | - | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
TSR 0.5-2450SMDC DC CONVERTER 5V 2.5W |
22 | - |
|
Технический лист
|
TSR 0.5SM | 10-SMD Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 90°C (With Derating) | 94% | - | - | Surface Mount | 0.60" L x 0.38" W x 0.36" H (15.3mm x 9.6mm x 9.2mm) | - | - | - | - |
|
2S7BE_0505S6UISOLATED MODULE DC DC CONVERTERS |
24 | - |
|
Технический лист
|
2S7BE_6U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | 60950-1 |
|
MEJ1S2405SCDC DC CONVERTER 5V 1W |
17 | - |
|
Технический лист
|
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
