DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSN12AD20-MQDC DC CONVERTER 0.6-5.5V |
81 | - |
|
Технический лист |
- | 50-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 15V | 0.6 ~ 5.5V | - | - | - | 18A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.39" L x 0.35" W x 0.26" H (10.0mm x 9.0mm x 6.5mm) | 50-LGA (10x9) | Enable, Active High | - | - |
|

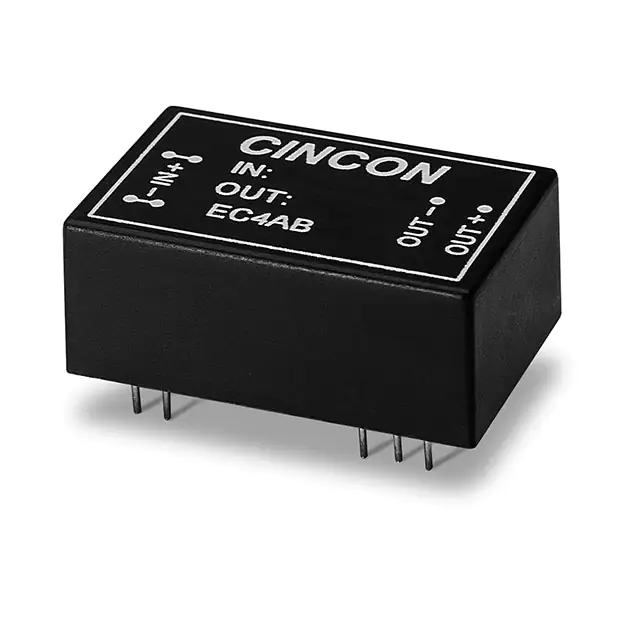

EC4AB15HDC DC CONVERTER +/-15V 5.7W |
10 | - |
|
Технический лист |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CE, cURus | - |
|
TSR 1-48240WIDC DC CONVERTER 24V 3SIP |
97 | - |
|
Технический лист |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 33V | 72V | 24V | - | - | - | 700mA | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 92% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
TEL 3-1211DC DC CONVERTER 5V 3W |
100 | - |
|
Технический лист |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
RS3-1212SDC DC CONVERTER 12V 3W |
16 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

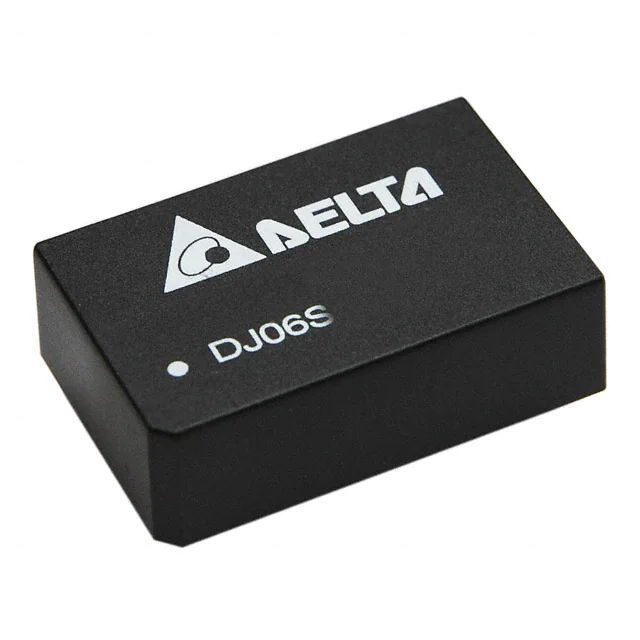

DJ06S2412ADC DC CONVERTER 12V 6W |
85 | - |
|
Технический лист |
DJ06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

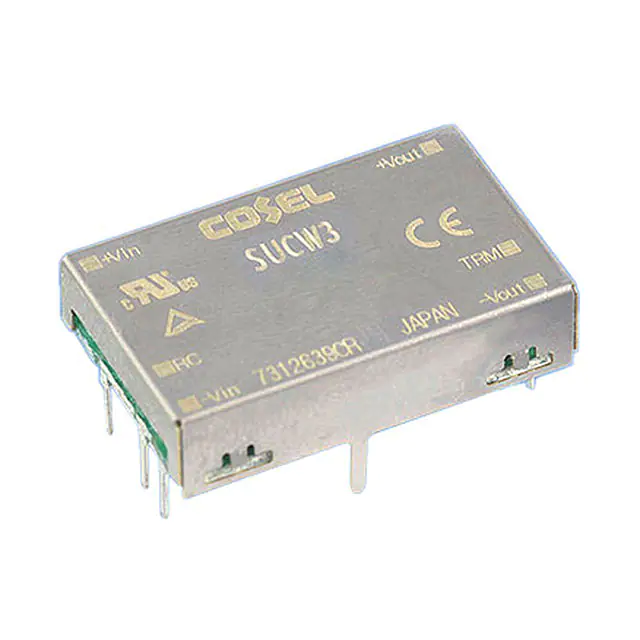

SUCW30515CDC DC CONVERTER +/-15V |
46 | - |
|
Технический лист |
SUCW (3W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm) | - | - | - | - |
|
RS-1205SDC DC CONVERTER 5V 2W |
99 | - |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -45°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

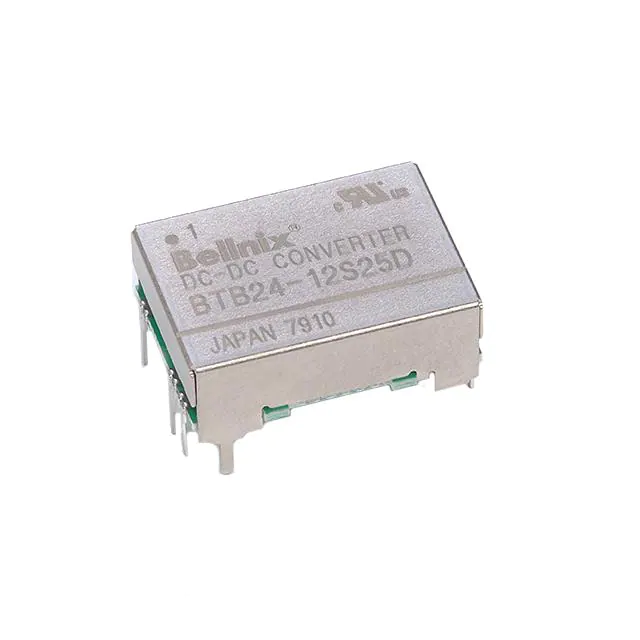

BTB12-12W12SDC DC CONVERTER +/-12V 3W |
19 | - |
|
Технический лист |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|

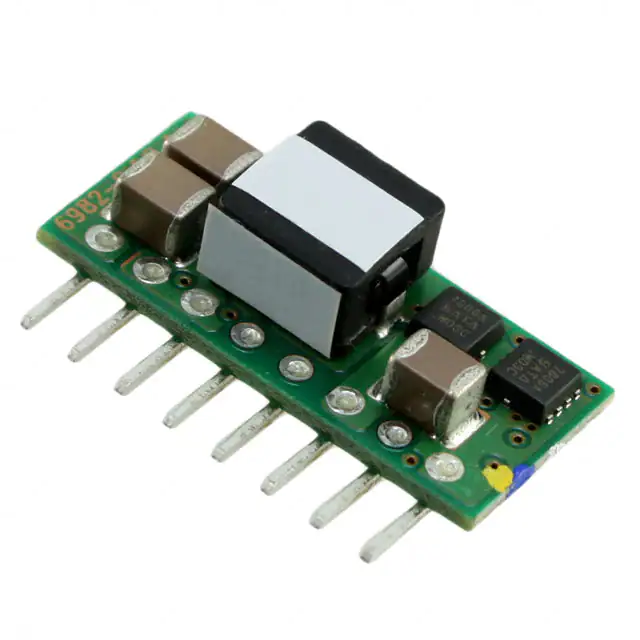

PTV12010WAHDC DC CONVERTER 1.2-5.5V 8A |
65 | - |
|
Технический лист |
PTV12010 | 8-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 8A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm) | - | - | - | - |
|
PTN78000WASDC DC CONVERTER 2.5-12.6V |
62 | - |
|
Технический лист |
PTN78000W | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 91% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
RSO-0515SDC DC CONVERTER 15V 1W |
35 | - |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
TEL 3-1222DC DC CONVERTER +/-12V 3W |
93 | - |
|
Технический лист |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
|
RS3-2409DDC DC CONVERTER +/-9V 3W |
60 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 9V | -9V | - | - | 167mA, 167mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
DCP022415DUDC DC CONVERTER +/-15V 2W |
60 | - |
|
Технический лист |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|
TEN 3-2413DC DC CONVERTER 15V 3W |
16 | - |
|
Технический лист |
TEN 3 (3W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|

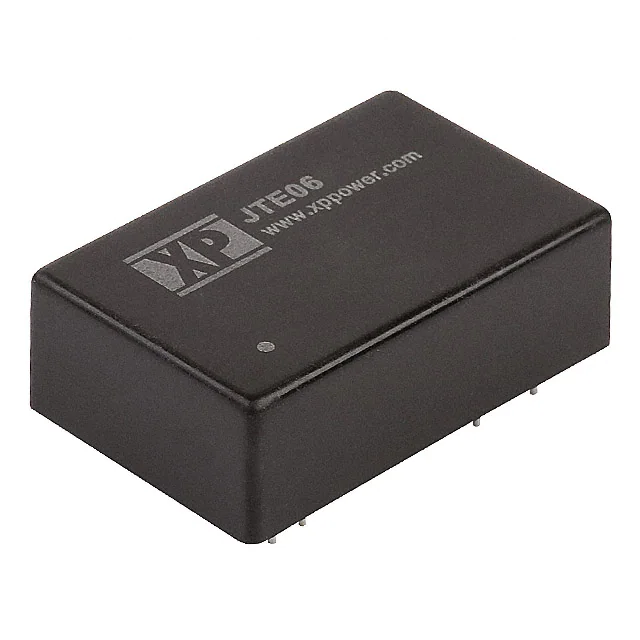

JTE0624S12DC DC CONVERTER 12V 6W |
15 | - |
|
Технический лист |
JTE (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
TEL 5-1212DC DC CONVERTER 12V 6W |
56 | - |
|
Технический лист |
TEL 5 (5W) | 23-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TDN 1-2413WISMDC DC CONVERTER 15V 1.1W |
61 | - |
|
Технический лист |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 70mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TDN 1-4810WISMDC DC CONVERTER 3.3V 1W |
57 | - |
|
Технический лист |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 300mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 75% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
