DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS3-2415S/H3DC DC CONVERTER 15V 3W |
66 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TRV 2-0511M2 WATT ENCAPSULATED SIP-9 MEDICA |
20 | - |
|
Технический лист |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 7V | 5V | - | - | - | 400mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
TDN 1-1211WIDC DC CONVERTER 5V 1W |
70 | - |
|
Технический лист |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 79% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TDN 1-2410WIDC DC CONVERTER 3.3V 1W |
60 | - |
|
Технический лист |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 300mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 76% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
MGW61215DC DC CONVERTER +/-15V |
28 | - |
|
Технический лист |
MGW (6W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
RS-1215S/H3DC DC CONVERTER 15V 2W |
45 | - |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 134mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TRN 3-1211DC DC CONVERTER 5V 3W |
34 | - |
|
Технический лист |
TRN 3 (3W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) | - | - | - | - |
|
IMM0512S05DC DC CONVERTER 5V 5W |
15 | - |
|
Технический лист |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
THL 3-2415WIDC DC CONVERTER 24V 3W |
87 | - |
|
Технический лист |
THL 3WI (3W) | 16-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
TMR 2-2421WIDC DC CONVERTER +/-5V 2W |
23 | - |
|
Технический лист |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
|
TEN 6-2411NDC DC CONVERTER 5V 6W |
67 | - |
|
Технический лист |
TEN 6N (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
AG6800DC DC CONVERTER 99W |
79 | - |
|
Технический лист |
AG6800 | - | Tray | Active | Passive Injector | 1 | 53V | 57V | - | - | - | - | 1.73A | 99 W | - | - | OCP, SCP | -40°C ~ 85°C | 99% | - | - | Through Hole | 2.00" L x 1.38" W x 0.26" H (50.8mm x 35.0mm x 6.6mm) | - | - | - | - |
|
TMR 3-2413DC DC CONVERTER 15V 3W |
30 | - |
|
Технический лист |
TMR 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
XR79115EL-FDC DC CONVERTER 0.6-5.5V |
40 | - |
|
Технический лист |
- | 68-PowerBQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 22V | 0.6 ~ 5.5V | - | - | - | 15A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.47" L x 0.47" W x 0.16" H (12.0mm x 12.0mm x 4.0mm) | 68-QFN (12x12) | - | - | - |
|
LMZ12002EXTTZE/NOPBDC DC CONVERTER 0.8-6V |
29 | - |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|

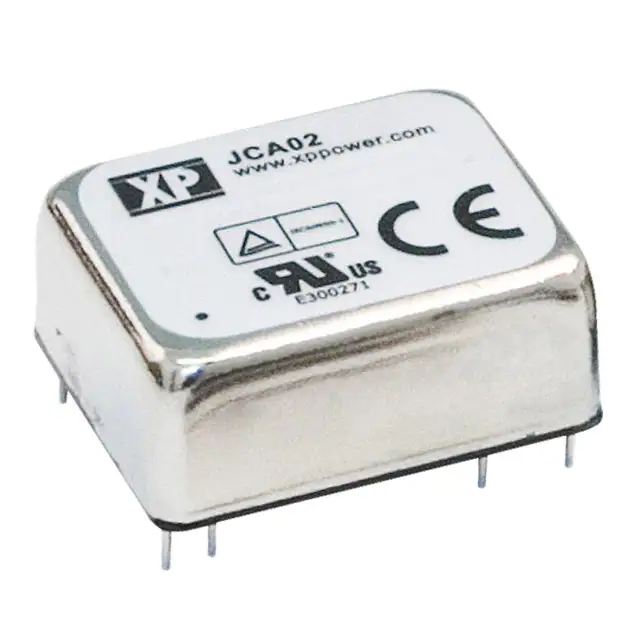

JCA0212S05DC DC CONVERTER 5V 2W |
48 | - |
|
Технический лист |
JCA (2W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 74% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
R-623.3PDC DC CONVERTER 3.3V 6.6W |
28 | - |
|
Технический лист |
INNOLINE R-6xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 32V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|
TDN 1-2421WISMDC DC CONVERTER +/-5V 1W |
49 | - |
|
Технический лист |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 77% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
.jpg)
|
RW-0515DDC DC CONVERTER +/-15V 3W |
27 | - |
|
Технический лист |
ECONOLINE RW-D (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm) | - | - | - | - |
|
|
RS3-0515D/H3DC DC CONVERTER +/-15V 3W |
88 | - |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
