DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC4SBW-24D12DC DC CONVERTER +/-12V 20W |
30 | - |
|
Технический лист |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 830mA, 830mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88.5% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
THN 10-2412WIRDC DC CONVERTER 12V 10W |
58 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 10-2413WIRDC DC CONVERTER 15V 10W |
30 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 670mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|

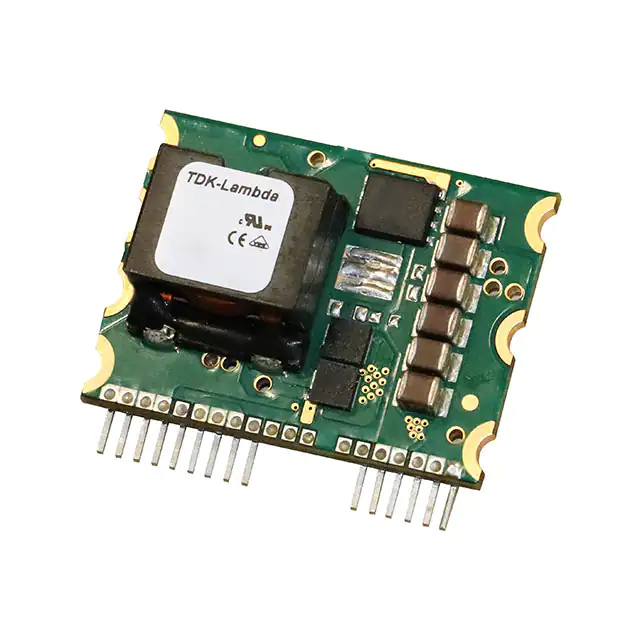

I6A4W010A033V-0S1-RDC DC CONVERTER 3.3-40V 250W |
31 | - |
|
Технический лист |
i6A4W (250W) | 20-SIP Module, 18 Leads | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 40V | - | - | - | 10A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 125°C | 97.5% | - | - | Through Hole | 1.30" L x 0.45" W x 0.98" H (33.0mm x 11.4mm x 24.8mm) | SIP | Enable, Active Low | CE | - |
|

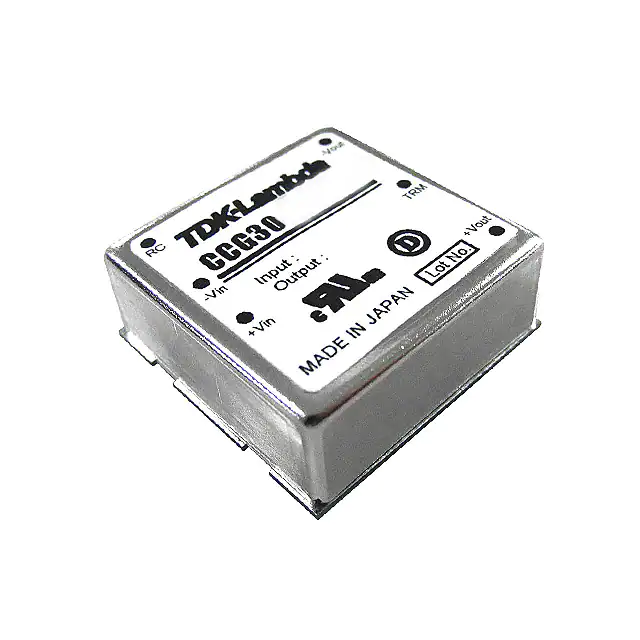

CCG30-48-12DDC DC CONVERTER +/-12V 30W |
69 | - |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
SKMW20G-05DC DC CONVERTER 5V 20W |
13 | - |
|
Технический лист |
SKMW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TIM 3.5-2412DC DC CONVERTER 12V 3.5W |
31 | - |
|
Технический лист |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TEN 8-4810WIDC DC CONVERTER 3.3V 7.9W |
82 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-4812WIDC DC CONVERTER 12V 8W |
81 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-2412WIDC DC CONVERTER 12V 8W |
53 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TMR 9-4811DC DC CONVERTER 5V 8W |
50 | - |
|
Технический лист |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 1.6A | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
TMR 9-2415DC DC CONVERTER 24V 9W |
38 | - |
|
Технический лист |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|

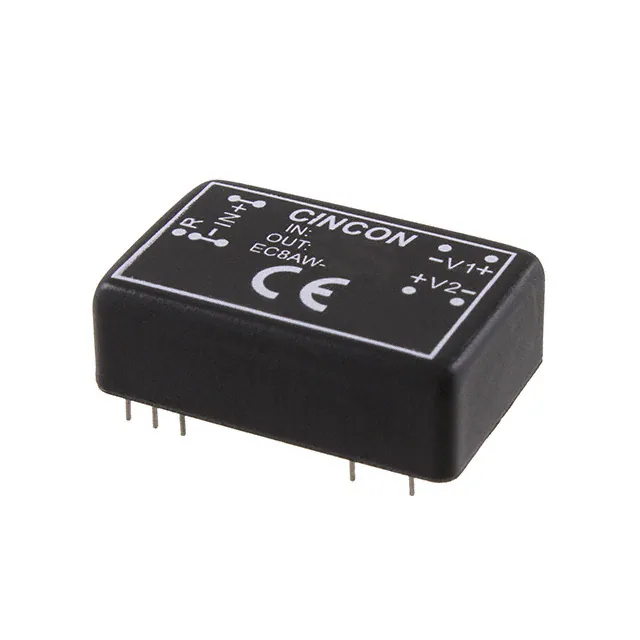

EC8AW-24D15DC DC CONVERTER +/-15V 15W |
33 | - |
|
Технический лист |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | 60950-1 |
|
TVN 3-2411DC DC CONVERTER 5V 3W |
46 | - |
|
Технический лист |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TMR 12-2422WIULTRA COMPACT 12 WATT DC/DC IN S |
30 | - |
|
Технический лист |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
REC30E-2412SZ30W DC/DC-CONVERTER 'ECONOLINE' |
41 | - |
|
Технический лист |
REC30E-Z (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 2 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 10.0mm) | - | - | - | 62368-1 |
|
BY05-05S30LDC DC CONVERTER 5V 1.5W |
54 | - |
|
Технический лист |
BY-L (1.5W) | 24-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 4.75V | 6V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C (With Derating) | 60% | - | - | Through Hole | 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm) | - | - | - | - |
|

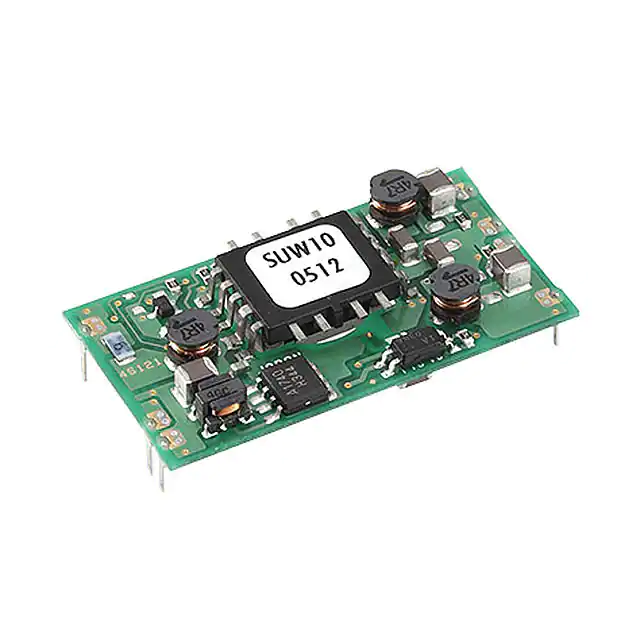

SUW100515CDC DC CONVERTER +/-15V 11W |
34 | - |
|
Технический лист |
SUW (10W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.54" L x 0.83" W x 0.26" H (39.2mm x 21.0mm x 6.5mm) | - | - | - | - |
|
TDR 3-2422WIDC DC CONVERTER +/-12V 3W |
66 | - |
|
Технический лист |
TDR 3WI (3W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
|
TMR 12-2410WIULTRA COMPACT 12 WATT DC/DC IN S |
39 | - |
|
Технический лист |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3A | 9.9 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 87% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
