DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THN 15-4823WIDC DC CONVERTER +/-15V 15W |
60 | - |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|

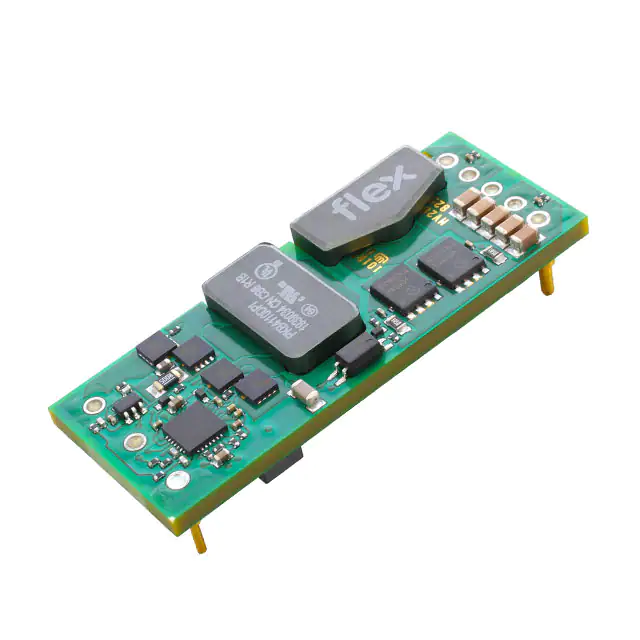

PKB4110DPIDC DC CONVERTER 3.3V 132W |
72 | - |
|
Технический лист |
PKB4000D (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 40A | 132 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.7% | - | - | Through Hole | 2.30" L x 0.89" W x 0.38" H (58.4mm x 22.7mm x 9.6mm) | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKB4313DPIDC DC CONVERTER 12V 300W |
59 | - |
|
Технический лист |
PKB4000D (300W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.2% | - | - | Through Hole | 2.30" L x 0.89" W x 0.38" H (58.4mm x 22.7mm x 9.6mm) | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
.jpg)
|
REC10-2405SRWZ/H3/A/MDC DC CONVERTER 5V 10W |
35 | - |
|
Технический лист |
ECONOLINE REC10 (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 65°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
THD 12-2421WIDC DC CONVERTER +/-5V 12W |
54 | - |
|
Технический лист |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.2A, 1.2A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

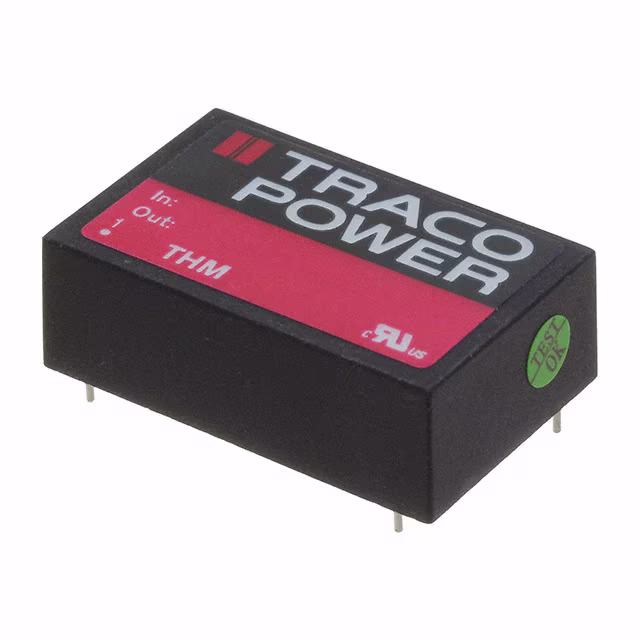

THM 6-1222DC DC CONVERTER +/-12V 6W |
23 | - |
|
Технический лист |
THM 6 (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
THM 6-1221DC DC CONVERTER +/-5V 6W |
22 | - |
|
Технический лист |
THM 6 (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THM 3-2410WIDC DC CONVERTER 3.3V 3.3W |
26 | - |
|
Технический лист |
THM 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1A | 3.3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
ECLB40W-24D12DC DC CONVERTER +/-12V 40W |
10 | - |
|
Технический лист |
ECLB40W (40W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.667A, 1.667A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
TEN 5-0522DC DC CONVERTER +/-12V 6W |
20 | - |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 7V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TEL 15-2423DC DC CONVERTER +/-15V 15W |
13 | - |
|
Технический лист |
TEL 15 (15W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 8-7210WIDC DC CONVERTER 3.3V 7.9W |
22 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM4613EY#PBFDC DC CONVERTER 3.3-15V |
0 | - |
|
Технический лист |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 3.3 ~ 15V | - | - | - | 8A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 133-BGA (15x15) | - | - | - |
|
REC8-2412DRWZ/H3/A/MDC DC CONVERTER +/-12V 8W |
15 | - |
|
Технический лист |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 333mA, 333mA | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
.jpg)
|
REC6-2424SRW/R10/CDC DC CONVERTER 24V 6W |
25 | - |
|
Технический лист |
ECONOLINE REC6/R (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 250mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 84% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 15-4812WIRDC DC CONVERTER 12V 16W |
25 | - |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 16 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THN 20-2412WIR20 WATT DC/DC CONVERTER, RAILWAY |
14 | - |
|
Технический лист |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
|
THN 20-2415WIR20 WATT DC/DC CONVERTER, RAILWAY |
4 | - |
|
Технический лист |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
RPA30-243.3SAW/PDC DC CONVERTER 3.3V 30W |
22 | - |
|
Технический лист |
POWERLINE RPA30-AW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7.5A | 30 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
THM 10-2423DC DC CONVERTER +/-15V 10W |
10 | - |
|
Технический лист |
THM 10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
