DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

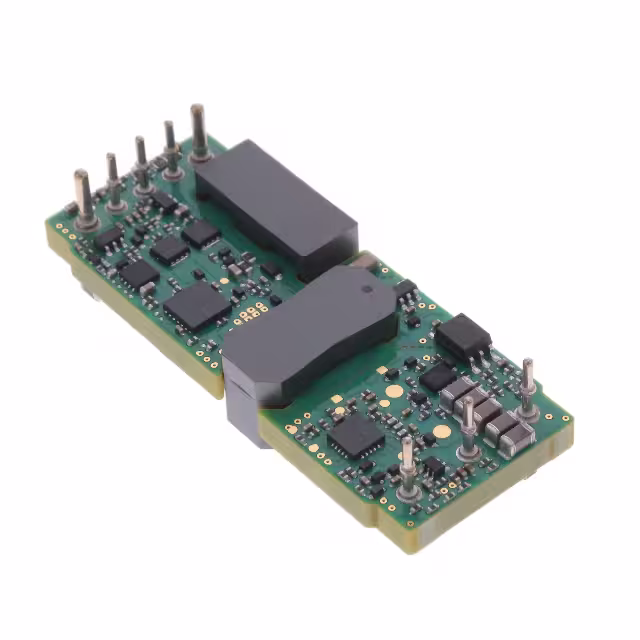

CHS3002448DC DC CONVERTER 48V 254W |
2 | - |
|
Технический лист |
CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 5.3A | 254 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | Enable, Active Low | CE, cURus, TUV | - |
|
TEP 40-3618UIRDC DC CONVERTER 48V 40W |
18 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 830mA | 40 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
|
TEP 40-7213UIRDC DC CONVERTER 15V 40W |
14 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 2.67A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
|
TEP 40-7211UIRDC DC CONVERTER 5V 40W |
13 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 8A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
AH05N-12DC DC CONVERTER -500V 1.5W |
2 | - |
|
Технический лист |
XP EMCO - AH (1.5W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -500V | - | - | - | 3mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
TEN 60-4812WIRDC DC CONVERTER 12V 60W |
10 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
MHV12-180S15NDC DC CONVERTER -180V 2.7W |
6 | - |
|
Технический лист |
MHV | 6-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | -180V | - | - | - | 15mA | 2.7 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 3.15" L x 0.47" W x 0.78" H (80.0mm x 12.0mm x 19.8mm) | - | Enable, Active Low | cURus | - |
|
TEP 75-4815WIDC DC CONVERTER 24V 77W |
18 | - |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.2A | 77 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | cURus | - |
|
TEP 75-2415WIDC DC CONVERTER 24V 77W |
10 | - |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 3.2A | 77 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | cURus | - |
|
TEN 60-4823WINDC DC CONVERTER +/-15V 60W |
17 | - |
|
Технический лист |
TEN 60WIN (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 2A, 2A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TEN 60-4822WINDC DC CONVERTER +/-12V 60W |
15 | - |
|
Технический лист |
TEN 60WIN (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
Q05-5DC DC CONVERTER 500V 500MW |
12 | - |
|
Технический лист |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 1mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
|
Q03-5DC DC CONVERTER 300V 500MW |
6 | - |
|
Технический лист |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 300V | - | - | - | 1.667mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
|
MHV12-300S10NDC DC CONVERTER -300V 3W |
18 | - |
|
Технический лист |
MHV | 6-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | -300V | - | - | - | 10mA | 3 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 3.15" L x 0.47" W x 0.78" H (80.0mm x 12.0mm x 19.8mm) | - | Enable, Active Low | cURus | - |
|
|
MHV12-350S07PDC DC CONVERTER 350V 2.5W |
13 | - |
|
Технический лист |
MHV | 6-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | 350V | - | - | - | 7mA | 2.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 3.15" L x 0.47" W x 0.78" H (80.0mm x 12.0mm x 19.8mm) | - | Enable, Active High | cURus | - |
|
ECLB75W-24D15DC DC CONVERTER +/-15V 75W |
3 | - |
|
Технический лист |
ECLB75W (75W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 2.5A, 2.5A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
QSB10024S15DC DC CONVERTER 15V 100W |
10 | - |
|
Технический лист |
QSB (100W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
A10P-5DC DC CONVERTER 1000V 1W |
15 | - |
|
Технический лист |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 1000V | - | - | - | 1mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|

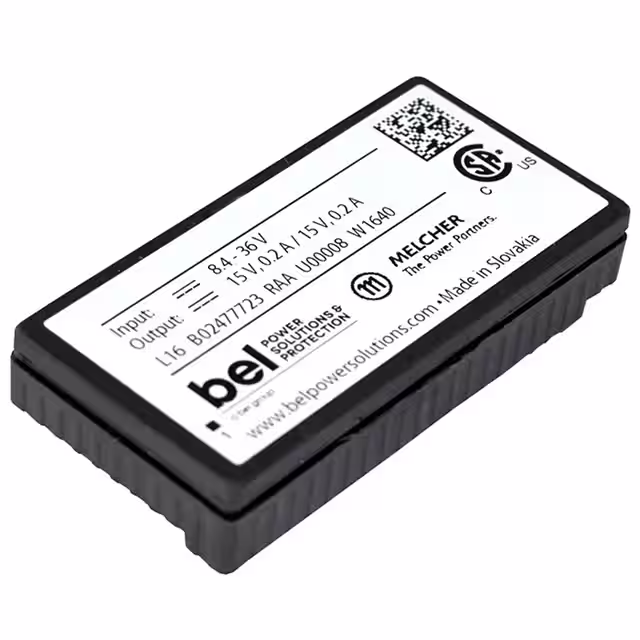

20IMX7-15-15-8GDC DC CONVERTER 15V 15V 7W |
12 | - |
|
Технический лист |
Melcher IMX7 (7W) | 14-DIP Module, 8 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 15V | 15V | - | - | 200mA, 200mA | 7 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm) | - | - | - | - |
|

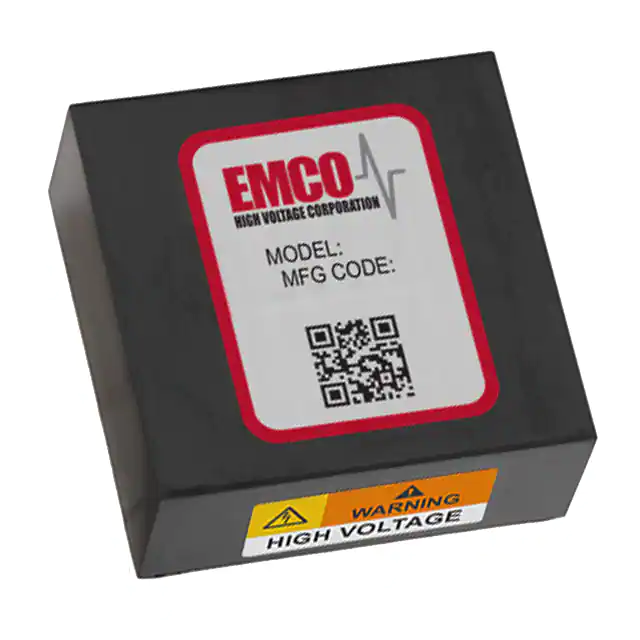

GP15DC DC CONVERTER 1500V 1W |
8 | - |
|
Технический лист |
XP EMCO - GP (1W) | 4-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 1500V | - | - | - | 660µA | 1 W | 3.5 kV | ITE (Commercial) | Proportional Output | -20°C ~ 70°C | - | - | - | Through Hole | 1.50" L x 1.50" W x 0.63" H (38.1mm x 38.1mm x 16.0mm) | - | - | - | - |
