DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHB300W-24S28DC DC CONVERTER 28V 300W |
17 | - |
|
Технический лист |
CHB300W (300W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 28V | - | - | - | 10.7A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | CE, cURus | 60950-1 |
|
20IMX35D05D05-8GDC DC CONVERTER 5V 5V 5V 35W |
3 | - |
|
Технический лист |
Melcher IMX35 (35W) | 19-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 4 | 9V | 36V | 5V | 5V | 5V | - | 1.35A, 1.35A, 1.35A | 35 W | 1.2 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|
TEP 100-2412WIRDC DC CONVERTER 12V 101W |
2 | - |
|
Технический лист |
TEP 100WIR (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.4A | 101 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
RPA150Q-11012SRUW/PDC DC CONVERTER 12V 150W |
7 | - |
|
Технический лист |
RPA150Q (150W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14.4V | 170V | 12V | - | - | - | 12.5A | 150 W | 4.242 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.6mm x 39.0mm x 12.7mm) | Quarter Brick | Enable, Active High | CE, cURus | 62368-1 |
|
TEP 100-3618UIRDC DC CONVERTER 48V 100W |
6 | - |
|
Технический лист |
TEP 100UIR (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 2.1A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | 62368-1 |
|

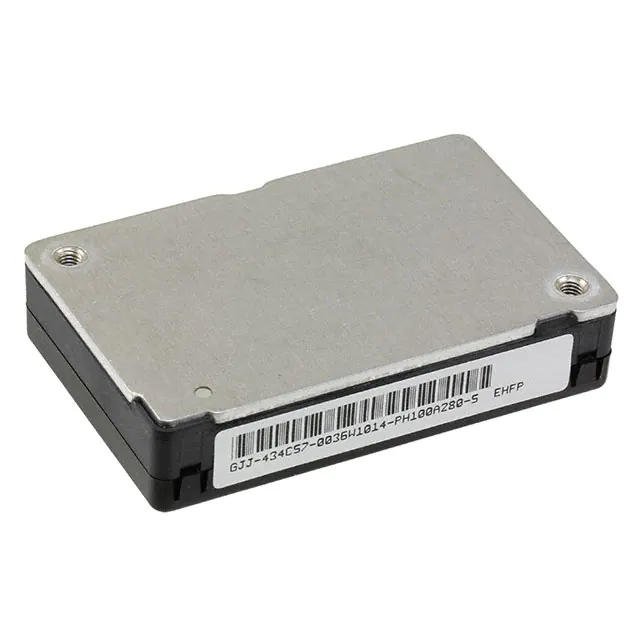

PH150A280-24DC DC CONVERTER 24V 150W |
5 | - |
|
Технический лист |
PH-A (150W) | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 200V | 425V | 24V | - | - | - | 6.3A | 150 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm) | - | - | - | - |
|
TEP 150-7212UIR150W HALF-BRICK DC/DC CONVERTER |
14 | - |
|
Технический лист |
TEP 150UIR (150W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 12.5A | 151 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 93% | - | - | Through Hole | 2.40" L x 2.28" W x 0.51" H (61.0mm x 57.9mm x 13.0mm) | Half Brick | - | CB, cURus | 62368-1 |
|
RP120Q-2412SRW/NDC DC CONVERTER 12V 120W |
4 | - |
|
Технический лист |
POWERLINE RP120-RW (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | - | - |
|
BMR4800116/005DC DC CONVERTER 12V 1300W |
20 | - |
|
Технический лист |
BMR480 (1300W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 45V | 60V | 12V | - | - | - | 108.3A | 1300 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off | -40°C ~ 125°C (With Derating) | 97.4% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PH300A280-5DC DC CONVERTER 5V 300W |
3 | - |
|
Технический лист |
PH-A (300W) | Half Brick | Bulk | Active | Isolated Module | 1 | 200V | 425V | 5V | - | - | - | 60A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | CE | - |
|
FS05-12DC DC CONVERTER 500V 10W |
11 | - |
|
Технический лист |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 500V | - | - | - | 20mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
|
O.2US5-N0.1DC DC CONVERTER 200V |
3 | - |
|
Технический лист |
ULTRAVOLT® US | 12-DIP Module, 7 Leads | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 200V | - | - | - | 500µA | - | - | ITE (Commercial) | - | -10°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.81" W x 0.43" H (25.5mm x 20.5mm x 11.0mm) | - | Enable, Active Low | CE, cURus | - |
|
DCM3623T75X3180T00DC DC CONVERTER 28V 81W |
25 | - |
|
Технический лист |
VI Chip® DCM® | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 2.9A | 81 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 90.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.28" H (38.7mm x 22.8mm x 7.2mm) | - | - | CE | - |
|
C02NDC DC CONVERTER -200V 1W |
14 | - |
|
Технический лист |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | -200V | - | - | - | 5mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | 1.40" L x 1.11" W x 0.50" H (35.6mm x 28.2mm x 12.7mm) | - | - | - | 62368-1 |
|
QHL300300S12DC DC CONVERTER 12V 300W |
2 | - |
|
Технический лист |
QHL300 (300W) | Half Brick | Tray | Active | Isolated Module | 1 | 180V | 425V | 12V | - | - | - | 25A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 62368-1 |
|
FS10CT-12DC DC CONVERTER +/-500V 10W |
24 | - |
|
Технический лист |
XP EMCO - FS (10W) | 8-DIP Module | Box | Active | High Voltage - Isolated Module | 2 | 0.7V | 12V | 500V | -500V | - | - | 10mA, 10mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
|
FS02CT-15DC DC CONVERTER +/-100V 10W |
5 | - |
|
Технический лист |
XP EMCO - FS (10W) | 8-DIP Module | Box | Active | High Voltage - Isolated Module | 2 | 0.7V | 15V | 100V | -100V | - | - | 50mA, 50mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
|
FS20-12DC DC CONVERTER 2000V 10W |
19 | - |
|
Технический лист |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 2000V | - | - | - | 5mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
|
C05DC DC CONVERTER 500V 1W |
3 | - |
|
Технический лист |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | 500V | - | - | - | 2mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | 1.40" L x 1.11" W x 0.50" H (35.6mm x 28.2mm x 12.7mm) | - | - | - | 62368-1 |
|
RDH30072WS24DC DC CONVERTER 24V 300W |
6 | - |
|
Технический лист |
RDH300 (300W) | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 12.5A | 300 W | 3 kV | Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | - | - |
