DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ROL-0505S/PDC DC CONVERTER 5V 500MW |
50 | - |
|
Технический лист |
ECONOLINE ROL (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
3S7A_1212S1.5UPISOLATED MODULE DC DC CONVERTERS |
79 | - |
|
Технический лист |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
3S7B_2405S3UPISOLATED MODULE DC DC CONVERTERS |
50 | - |
|
Технический лист |
3S7B_3UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
R05P22005D/PDC DC CONVERTER 20V -5V 2W |
34 | - |
|
Технический лист |
ECONOLINE RxxP22005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
R1S-2412DC DC CONVERTER 12V 1W |
51 | - |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
SRH05S15DC DC CONVERTER 15V |
40 | - |
|
Технический лист |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 21V | 72V | 15V | - | - | - | 400mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP Module | - | - | - |
|

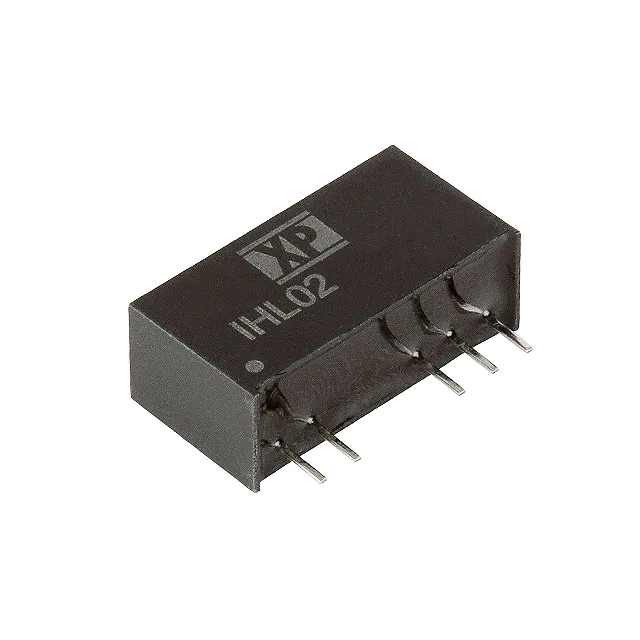

IHL0215D15DC DC CONVERTER +/-15V 2W |
39 | - |
|
Технический лист |
IHL02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 66.7mA, 66.7mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
|
R1S-2424DC DC CONVERTER 24V 1W |
36 | - |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SRH05S7V2DC DC CONVERTER 7.2V |
35 | - |
|
Технический лист |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 14V | 72V | 7.2V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP Module | - | - | - |
|
EC2SA03NHDC DC CONVERTER 15V 2W |
50 | - |
|
Технический лист |
EC2SANH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 134mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | CE | - |
|
EC2SA21NHDC DC CONVERTER 5V 2W |
49 | - |
|
Технический лист |
EC2SANH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | CE | - |
|
RK-2415S/HDC DC CONVERTER 15V 1W |
87 | - |
|
Технический лист |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RK-1505S/PDC DC CONVERTER 5V 1W |
38 | - |
|
Технический лист |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TSR 1-2425DC DC CONVERTER 2.5V 2.5W |
30 | - |
|
Технический лист |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.6V | 36V | 2.5V | - | - | - | 1A | 2.5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.1mm) | - | - | - | - |
|
RI-1205S/PDC DC CONVERTER 5V 2W |
32 | - |
|
Технический лист |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
RS3E-2412S/H3DC DC CONVERTER 12V 3W |
29 | - |
|
Технический лист |
ECONOLINE RS3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 70°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CB, cURus | 62368-1 |
|
|
R1S-1509/HPDC DC CONVERTER 9V 1W |
43 | - |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RK-123.3S/H6DC DC CONVERTER 3.3V 1W |
35 | - |
|
Технический лист |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 74% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
|
RK-0512S/H6DC DC CONVERTER 12V 1W |
76 | - |
|
Технический лист |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 79% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
RH-0512D/HDC DC CONVERTER +/-12V 1W |
85 | - |
|
Технический лист |
ECONOLINE RH (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 90°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
