DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

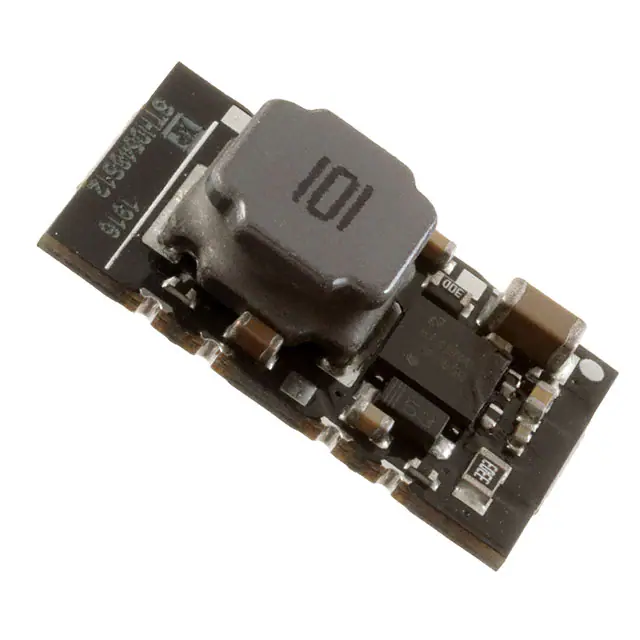

STH0548S05DC DC CONVERTER 5V |
81 | - |
|
Технический лист |
STH05 (5W) | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 86% | - | - | Surface Mount | 0.77" L x 0.46" W x 0.20" H (19.5mm x 11.8mm x 5.0mm) | - | - | - | - |
|
|
STH0548S12DC DC CONVERTER 12V |
53 | - |
|
Технический лист |
STH05 (5W) | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 72V | 12V | - | - | - | 500mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 0.77" L x 0.46" W x 0.20" H (19.5mm x 11.8mm x 5.0mm) | - | - | - | - |
|
RKZ-2415SDC DC CONVERTER 15V 2W |
94 | - |
|
Технический лист |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
PTH04000WASDC DC CONVERTER 0.9-3.6V |
98 | - |
|
Технический лист |
PTH04000W | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
EC3A16DC DC CONVERTER +/-15V 3W |
42 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
ITW2415SADC DC CONVERTER 15V 1W |
41 | - |
|
Технический лист |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
|
ITW2412SADC DC CONVERTER 12V 1W |
40 | - |
|
Технический лист |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
TSM 2405SDC DC CONVERTER 5V 1W |
29 | - |
|
Технический лист |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm) | - | - | - | - |
|
|
ITW2424SADC DC CONVERTER 24V 1W |
25 | - |
|
Технический лист |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
|
ITW0524SADC DC CONVERTER 24V 1W |
20 | - |
|
Технический лист |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
|
EC3A36DC DC CONVERTER +/-15V 3W |
16 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
ITW1224SADC DC CONVERTER 24V 1W |
15 | - |
|
Технический лист |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
|
EC3A12DC DC CONVERTER 12V 3W |
10 | - |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
1S7WB_2405S3RPISOLATED MODULE DC DC CONVERTERS |
78 | - |
|
Технический лист |
1S7WB (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
EC2SA-12D05NDC DC CONVERTER +/-5V 2W |
64 | - |
|
Технический лист |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|
TMV 2403SHIDC DC CONVERTER 3.3V 1W |
67 | - |
|
Технический лист |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 70% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RH-1512D/H6DC DC CONVERTER +/-12V 1W |
58 | - |
|
Технический лист |
ECONOLINE RH/H6 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
RH-2405D/H6DC DC CONVERTER +/-5V 1W |
50 | - |
|
Технический лист |
ECONOLINE RH/H6 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 77% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
TMV 1512SHIDC DC CONVERTER 12V 1W |
40 | - |
|
Технический лист |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 15V | 16.5V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TMV 2412SHIDC DC CONVERTER 12V 1W |
28 | - |
|
Технический лист |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 24V | 26.4V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
