DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIM 2-0910SMDC DC CONVERTER 3.3V 1.7W |
14 | - |
|
Технический лист |
TIM 2SM (2W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 3.3V | - | - | - | 500mA | 1.7 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 74% | - | - | Surface Mount | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TIM 2-1213SMDC DC CONVERTER 15V 2W |
10 | - |
|
Технический лист |
TIM 2SM (2W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 134mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
EC7A-12S12DC DC CONVERTER 12V 10W |
10 | - |
|
Технический лист |
EC7A (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 835mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC7A-24S12DC DC CONVERTER 12V 10W |
10 | - |
|
Технический лист |
EC7A (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 835mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC7A-24S33DC DC CONVERTER 3.3V 10W |
7 | - |
|
Технический лист |
EC7A (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
EC4BU-05S05DC DC CONVERTER 5V 10W |
57 | - |
|
Технический лист |
EC4BU (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.7V | 9V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
EC4BW11DC DC CONVERTER 5V 10W |
18 | - |
|
Технический лист |
EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
REC5-0505SRW/H6/A/SMDDC DC CONVERTER 5V 5W |
40 | - |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 72% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | - | - | - |
|

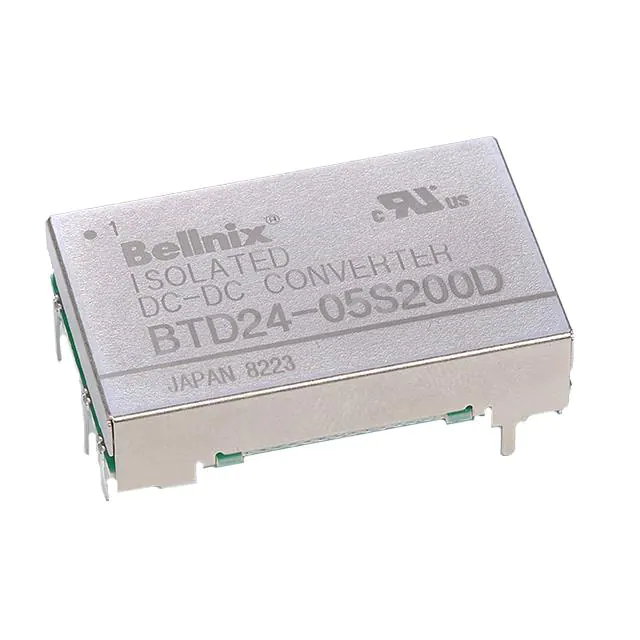

BTD24-05S200SDC DC CONVERTER 5V 10W |
30 | - |
|
Технический лист |
BTD (10W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 1.41" L x 0.89" W x 0.33" H (35.9mm x 22.6mm x 8.5mm) | - | - | - | - |
|
TMR 3-7223WIRDC DC CONVERTER +/-15V 3W |
14 | - |
|
Технический лист |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 43V | 160V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TMR 3-7221WIRDC DC CONVERTER +/-5V 3W |
8 | - |
|
Технический лист |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 43V | 160V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
THI 3-2413DC DC CONVERTER 15V 3W |
86 | - |
|
Технический лист |
THI 3 (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 200mA | 3 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 64% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
THD 10-2410WINDC DC CONVERTER 3.3V 8.9W |
42 | - |
|
Технический лист |
THD 10WIN (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.7A | 8.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
THD 10-2411WINDC DC CONVERTER 5.1V 10W |
35 | - |
|
Технический лист |
THD 10WIN (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THD 10-2412WINDC DC CONVERTER 12V 10W |
20 | - |
|
Технический лист |
THD 10WIN (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
REC7.5-1212SRW/H3/A/M/CTRLDC DC CONVERTER 12V 8W |
29 | - |
|
Технический лист |
ECONOLINE REC7.5 (7.5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 625mA | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.41" H (32.0mm x 20.3mm x 10.5mm) | - | Enable, Active Low | - | - |
|
TMR 6-2419WIDC DC CONVERTER 9V 6W |
14 | - |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 666mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
EC8AW-24S15DC DC CONVERTER 15V 15W |
22 | - |
|
Технический лист |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC8AW-48S15DC DC CONVERTER 15V 15W |
10 | - |
|
Технический лист |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC8AW-24S12DC DC CONVERTER 12V 15W |
9 | - |
|
Технический лист |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | 60950-1 |
