DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEL 12-242312 WATT DC/DC CONVERTER, INDUSTR |
23 | - |
|
Технический лист |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
|
TEL 12-242212 WATT DC/DC CONVERTER, INDUSTR |
11 | - |
|
Технический лист |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
TEL 12-4815WI12 WATT DC/DC CONVERTER, INDUSTR |
10 | - |
|
Технический лист |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 500mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
|
TEL 12-4811WI12 WATT DC/DC CONVERTER, INDUSTR |
9 | - |
|
Технический лист |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 2.4A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
|
TEL 12-4812WI12 WATT DC/DC CONVERTER, INDUSTR |
6 | - |
|
Технический лист |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
EC7A-24D15DC DC CONVERTER +/-15V 10W |
43 | - |
|
Технический лист |
EC7A (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
REC8-2415SRW/H2/A/MDC DC CONVERTER 15V 8W |
24 | - |
|
Технический лист |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 533mA | 8 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
EC2SB-12D12DC DC CONVERTER +/-12V 10W |
6 | - |
|
Технический лист |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|

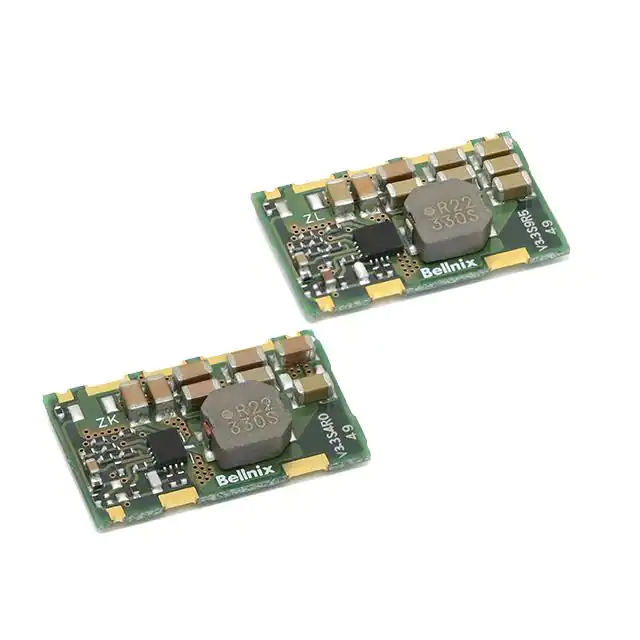

BSV-3.3S9R5MDC DC CONVERTER 3.3V 31W |
66 | - |
|
Технический лист |
BSV-M | 8-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 3.3V | - | - | - | 9.5A | 31 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.16" H (24.0mm x 15.0mm x 4.0mm) | - | Enable, Active High | - | - |
|
THI 2-2423MDC DC CONVERTER +/-15V 2W |
16 | - |
|
Технический лист |
THI 2M (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | 0.94" L x 0.54" W x 0.34" H (23.8mm x 13.7mm x 8.6mm) | - | - | - | - |
|
SUCW100515CDC DC CONVERTER +/-15V |
29 | - |
|
Технический лист |
SUCW (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 350mA, 350mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
|
SUCW101215CDC DC CONVERTER +/-15V |
22 | - |
|
Технический лист |
SUCW (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 350mA, 350mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
|
SUCW101212CDC DC CONVERTER +/-12V |
9 | - |
|
Технический лист |
SUCW (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 450mA, 450mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
SUCS100515CDC DC CONVERTER 15V |
8 | - |
|
Технический лист |
SUCS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 700mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
SUCW100515BDC DC CONVERTER +/-15V 11W |
8 | - |
|
Технический лист |
SUCW (10W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
|
SUCS102415CDC DC CONVERTER 15V |
6 | - |
|
Технический лист |
SUCS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 800mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
TDR 2-2422WISMDC DC CONVERTER +/-12V 2W |
16 | - |
|
Технический лист |
TDR 2WISM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
EC5BU-24S05DC DC CONVERTER 5V 15W |
27 | - |
|
Технический лист |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC5BU-24S12DC DC CONVERTER 12V 15W |
13 | - |
|
Технический лист |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
REC7.5-4812SRW/H3/A/MDC DC CONVERTER 12V 8W |
45 | - |
|
Технический лист |
ECONOLINE REC7.5 (7.5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 625mA | 8 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.41" H (32.0mm x 20.3mm x 10.5mm) | - | - | - | - |
