DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THL 10-2423WIDC DC CONVERTER +/-15V 9.9W |
21 | - |
|
Технический лист |
THL 10WI (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 330mA, 330mA | 9.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
REM5E-1205S/R8/ADC DC CONVERTER 5V 5W |
42 | - |
|
Технический лист |
MEDLINE REM5E (5W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 8 kV | Medical | OCP, OVP, SCP | -40°C ~ 80°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
|
TEL 15-2423WIN-HSULTRA COMPACT 15 WATT CONVERTER |
17 | - |
|
Технический лист |
TEL 15WIN-HS (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 70°C | 87% | - | - | Through Hole | 0.96" L x 0.56" W x 0.96" H (24.4mm x 14.3mm x 24.4mm) | - | - | CB, cURus | 62368-1 |
|
TVN 3-2421DC DC CONVERTER +/-5V 3W |
26 | - |
|
Технический лист |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
THN 10-7212WIRDC DC CONVERTER 12V 10W |
18 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 830mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 10-7213WIRDC DC CONVERTER 15V 10W |
9 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 15V | - | - | - | 670mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
MDS20A-05DC DC CONVERTER 5V 20W |
17 | - |
|
Технический лист |
MDS20 (20W) | 5-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 4 kV | Medical | - | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, EAC | - |
|
EC4BW06DC DC CONVERTER +/-5V 10W |
26 | - |
|
Технический лист |
EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
JHM0624D15DC DC CONVERTER +/-15V 6W |
53 | - |
|
Технический лист |
JHM (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 20V | 30V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 3 kV | Medical | OCP, OVP, SCP, UVLO | -20°C ~ 100°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | - |
|
|
JHM0612D12DC DC CONVERTER +/-12V 6W |
18 | - |
|
Технический лист |
JHM (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 10V | 17V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 3 kV | Medical | OCP, OVP, SCP, UVLO | -20°C ~ 100°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | - |
|
|
JHM0624D12DC DC CONVERTER +/-12V 6W |
16 | - |
|
Технический лист |
JHM (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 20V | 30V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 3 kV | Medical | OCP, OVP, SCP, UVLO | -20°C ~ 100°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | - |
|
|
JHM0612D15DC DC CONVERTER +/-15V 6W |
10 | - |
|
Технический лист |
JHM (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 10V | 17V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 3 kV | Medical | OCP, OVP, SCP, UVLO | -20°C ~ 100°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | - |
|
THN 15-2415NDC DC CONVERTER 24V 15W |
53 | - |
|
Технический лист |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 625mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
THN 15-2413NDC DC CONVERTER 15V 15W |
39 | - |
|
Технический лист |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
BSI-3.3S3R0FADC DC CONVERTER 3.3V |
15 | - |
|
Технический лист |
BSI | 36-DIP Module, 12 Leads | Bulk | Active | Non-Isolated PoL Module | 1 | 4.75V | 13.6V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 70°C (With Derating) | 91% | - | - | Through Hole | 2.01" L x 0.85" W x 0.37" H (51.0mm x 21.5mm x 9.3mm) | - | - | - | - |
|
TEN 6-11015WIRH6 WATT DC/DC, 4000 VAC ISOLATION |
29 | - |
|
Технический лист |
TEN (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 250mA | 5.94 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 90°C | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CB, cURus | 62368-1 |
|
|
TEN 6-11012WIRH6 WATT DC/DC, 4000 VAC ISOLATION |
20 | - |
|
Технический лист |
TEN (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 500mA | 5.94 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 90°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CB, cURus | 62368-1 |
|
TVN 3-0923DC DC CONVERTER +/-15V 3W |
21 | - |
|
Технический лист |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TVN 3-1222DC DC CONVERTER +/-12V 3W |
15 | - |
|
Технический лист |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|

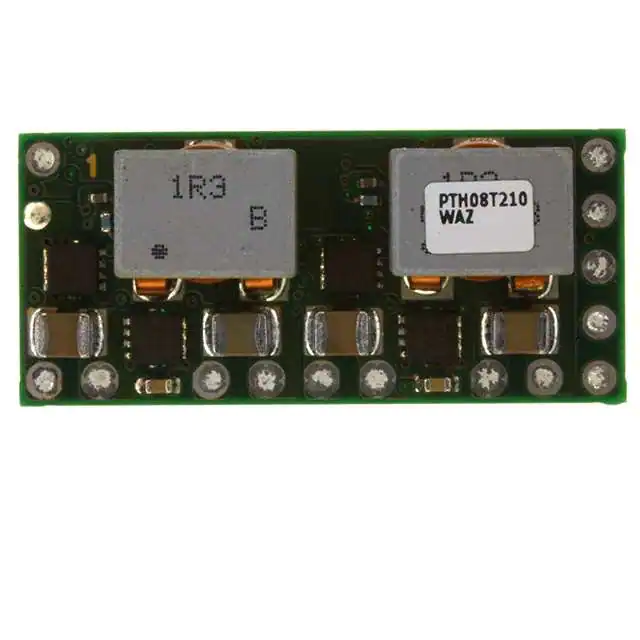

PTH08T210WAZDC DC CONVERTER 0.7-3.6V |
29 | - |
|
Технический лист |
PTH08T210W | 14-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 14V | 0.7 ~ 3.6V | - | - | - | 25A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 1.37" L x 0.62" W x 0.37" H (34.8mm x 15.8mm x 9.4mm) | - | - | - | - |
