DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
REC10-1205SRW/H2/A/MDC DC CONVERTER 5V 10W |
12 | - |
|
Технический лист |
ECONOLINE REC10 (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 2A | 10 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 75°C | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
TEL 12-2423WI12 WATT DC/DC CONVERTER, INDUSTR |
11 | - |
|
Технический лист |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
TEN 6-11011WIRH6 WATT DC/DC, 4000 VAC ISOLATION |
19 | - |
|
Технический лист |
TEN (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 5V | - | - | - | 1.2A | 5.94 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 90°C | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CB, cURus | 62368-1 |
|

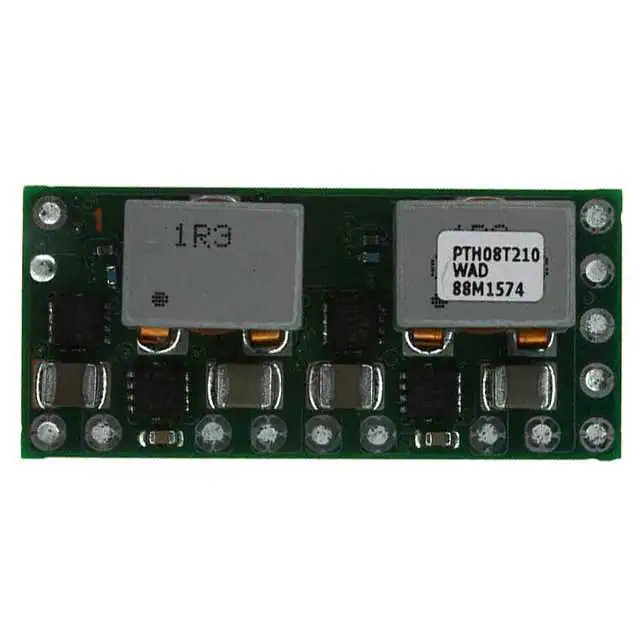

PTH08T210WADDC DC CONVERTER 0.7-3.6V |
45 | - |
|
Технический лист |
PTH08T210W | 14-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 14V | 0.7 ~ 3.6V | - | - | - | 25A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 1.37" L x 0.62" W x 0.34" H (34.8mm x 15.8mm x 8.5mm) | - | - | - | - |
|
THD 12-2410DC DC CONVERTER 3.3V 12W |
29 | - |
|
Технический лист |
THD 12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 3.5A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 10-2422WIRDC DC CONVERTER +/-12V 10W |
21 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 10-4825WIRDC DC CONVERTER +/-24V 10W |
13 | - |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 210mA, 210mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
THN 15-4811DC DC CONVERTER 5V 15W |
43 | - |
|
Технический лист |
THN 15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THN 15-4815NDC DC CONVERTER 24V 15W |
20 | - |
|
Технический лист |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 625mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
TEN 8-4821WIDC DC CONVERTER +/-5V 8W |
86 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 800mA, 800mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-4823WIDC DC CONVERTER +/-15V 8W |
8 | - |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 267mA, 267mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
JCA0605D03DC DC CONVERTER +/-15V 6W |
67 | - |
|
Технический лист |
JCA (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
|
JCA0624D01DC DC CONVERTER +/-5V 6W |
38 | - |
|
Технический лист |
JCA (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 500mA, 500mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
|
JCA0648D03DC DC CONVERTER +/-15V 6W |
22 | - |
|
Технический лист |
JCA (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
|
JCA0624D02DC DC CONVERTER +/-12V 6W |
11 | - |
|
Технический лист |
JCA (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
|
THN 15-1222NDC DC CONVERTER +/-12V 15W |
18 | - |
|
Технический лист |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
EC9BW-24D15DC DC CONVERTER +/-15V 30W |
57 | - |
|
Технический лист |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC9BW-48S33DC DC CONVERTER 3.3V 25W |
20 | - |
|
Технический лист |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 7.5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC9BW-48D15DC DC CONVERTER +/-15V 30W |
11 | - |
|
Технический лист |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
TIM 3.5-2423SMDC DC CONVERTER +/-15V 3.5W |
40 | - |
|
Технический лист |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 117mA, 117mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Surface Mount | 0.96" L x 0.57" W x 0.41" H (24.3mm x 14.4mm x 10.5mm) | - | - | - | - |
