DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URB2415ZP-10WR3DC DC CONVERTER 15V 10W |
35 | - |
|
Технический лист |
URB2415ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB2412ZP-10WR3DC DC CONVERTER 12V 10W |
29 | - |
|
Технический лист |
URB2412ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB2405ZP-10WR3DC DC CONVERTER 5V 10W |
23 | - |
|
Технический лист |
URB2405ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB2424ZP-10WR3DC DC CONVERTER 24V 10W |
15 | - |
|
Технический лист |
URB2424ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 416mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB4815ZP-10WR3DC DC CONVERTER 15V 10W |
12 | - |
|
Технический лист |
URB4815ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB4812ZP-10WR3DC DC CONVERTER 12V 10W |
11 | - |
|
Технический лист |
URB4812ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 833mA | 9.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
|
URB4803ZP-10WR3DC DC CONVERTER 3.3V 10W |
10 | - |
|
Технический лист |
URB4803ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
RV-0509DDC DC CONVERTER +/-9V 2W |
15 | - |
|
Технический лист |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
|
RV-053.3DDC DC CONVERTER +/-3.3V 2W |
15 | - |
|
Технический лист |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
|
RV-0915DDC DC CONVERTER +/-15V 2W |
15 | - |
|
Технический лист |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 8.1V | 9.9V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
|
RV-093.3DDC DC CONVERTER +/-3.3V 2W |
15 | - |
|
Технический лист |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 8.1V | 9.9V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
PT79SR112SDC DC CONVERTER -12V 1.5A |
0 | - |
|
- |
PT79SR100 | 3-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | -16V | -30V | -12V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm) | - | - | - | - |
|
|
PT79SR152STDC DC CONVERTER -5.2V 1.5A |
0 | - |
|
- |
PT79SR100 | 3-SIP Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | -9.2V | -30V | -5.2V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 60°C | 85% | - | - | Surface Mount | 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm) | - | - | - | - |
|
|
PT79SR152HDC DC CONVERTER -5.2V 1.5A |
0 | - |
|
- |
PT79SR100 | 3-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | -9.2V | -30V | -5.2V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole, Right Angle | 0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm) | - | - | - | - |
|
AM10CW-2405S-NZDC DC CONVERTER 5V 10W |
7 | - |
|
Технический лист |
AM10CW-NZ (10W) | - | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE, cURus, UL | - |
|
AMSR-7805ZDC DC CONVERTER 5V 2.5W |
40 | - |
|
Технический лист |
AMSR-78Z (7.5W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 6.5V | 34V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AMSR-781.8ZDC DC CONVERTER 1.8V 900MW |
10 | - |
|
Технический лист |
AMSR-78Z (7.5W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 34V | 1.8V | - | - | - | 500mA | 0.9 mW | - | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AMSR-786.5ZDC DC CONVERTER 6.5V 3.3W |
10 | - |
|
Технический лист |
AMSR-78Z (7.5W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 34V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AMSR-781.5ZDC DC CONVERTER 1.5V 750MW |
7 | - |
|
Технический лист |
AMSR-78Z (7.5W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 30V | 1.5V | - | - | - | 500mA | 0.75 mW | - | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|

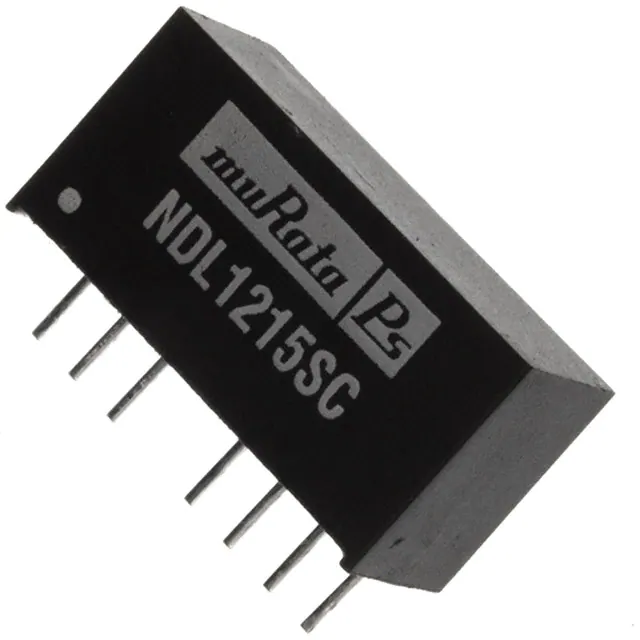

NDL1215SCDC DC CONVERTER 15V 2W |
19 | - |
|
Технический лист |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
