DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM3T-2405SH30-PNZDC DC CONVERTER 5V 3W |
15 | - |
|
Технический лист |
AM3T-PNZ (3W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PSR02-12S6P5DC DC CONVERTER 6.5V 13W |
35 | - |
|
Технический лист |
PSR02 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 6.5V | - | - | - | 2A | 13 W | - | ITE (Commercial) | Standby Output | -40°C ~ 100°C (With Derating) | 94% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | CE | - |
|
|
PSR02-12S1P2DC DC CONVERTER 1.2V 2.4W |
20 | - |
|
Технический лист |
PSR02 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.6V | 36V | 1.2V | - | - | - | 2A | 2.4 W | - | ITE (Commercial) | Standby Output | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | CE | - |
|
|
PSR02-24S09DC DC CONVERTER 9V 18W |
10 | - |
|
Технический лист |
PSR02 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 2A | 18 W | - | ITE (Commercial) | Standby Output | -40°C ~ 100°C (With Derating) | 95% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | CE | - |
|
|
PSR02-12S2P5DC DC CONVERTER 2.5V 5W |
8 | - |
|
Технический лист |
PSR02 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.6V | 36V | 2.5V | - | - | - | 2A | 5 W | - | ITE (Commercial) | Standby Output | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | CE | - |
|
|
PSR02-24S15DC DC CONVERTER 15V 30W |
7 | - |
|
Технический лист |
PSR02 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | - | ITE (Commercial) | Standby Output | -40°C ~ 100°C (With Derating) | 96% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | CE | - |
|
PYBJ3-D5-S5-DDC DC CONVERTER 5V 3W |
55 | - |
|
Технический лист |
PYBJ3 (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.98" L x 0.61" W x 0.27" H (25.0mm x 15.6mm x 6.8mm) | - | - | CE | - |
|
PYBJ3-D24-S12-ODDC DC CONVERTER 12V 3W |
35 | - |
|
Технический лист |
PYBJ3 (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm) | - | - | CE | - |
|
|
PYBJ3-D24-S3-ODDC DC CONVERTER 3.3V 2W |
20 | - |
|
Технический лист |
PYBJ3 (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 600mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm) | - | - | CE | - |
|
|
PYBJ3-D24-S15-ODDC DC CONVERTER 15V 3W |
15 | - |
|
Технический лист |
PYBJ3 (3W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm) | - | - | CE | - |
|
|
EDL03-24S05DC DC CONVERTER 5V 3W |
11 | - |
|
Технический лист |
EDL03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | CE | - |
|
|
EDL03-24S15DC DC CONVERTER 15V 3W |
10 | - |
|
Технический лист |
EDL03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | CE | - |
|
|
EDL03-12S05DC DC CONVERTER 5V 3W |
10 | - |
|
Технический лист |
EDL03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | CE | - |
|
|
EDL03-05S24DC DC CONVERTER 24V 3W |
7 | - |
|
Технический лист |
EDL03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | CE | - |
|

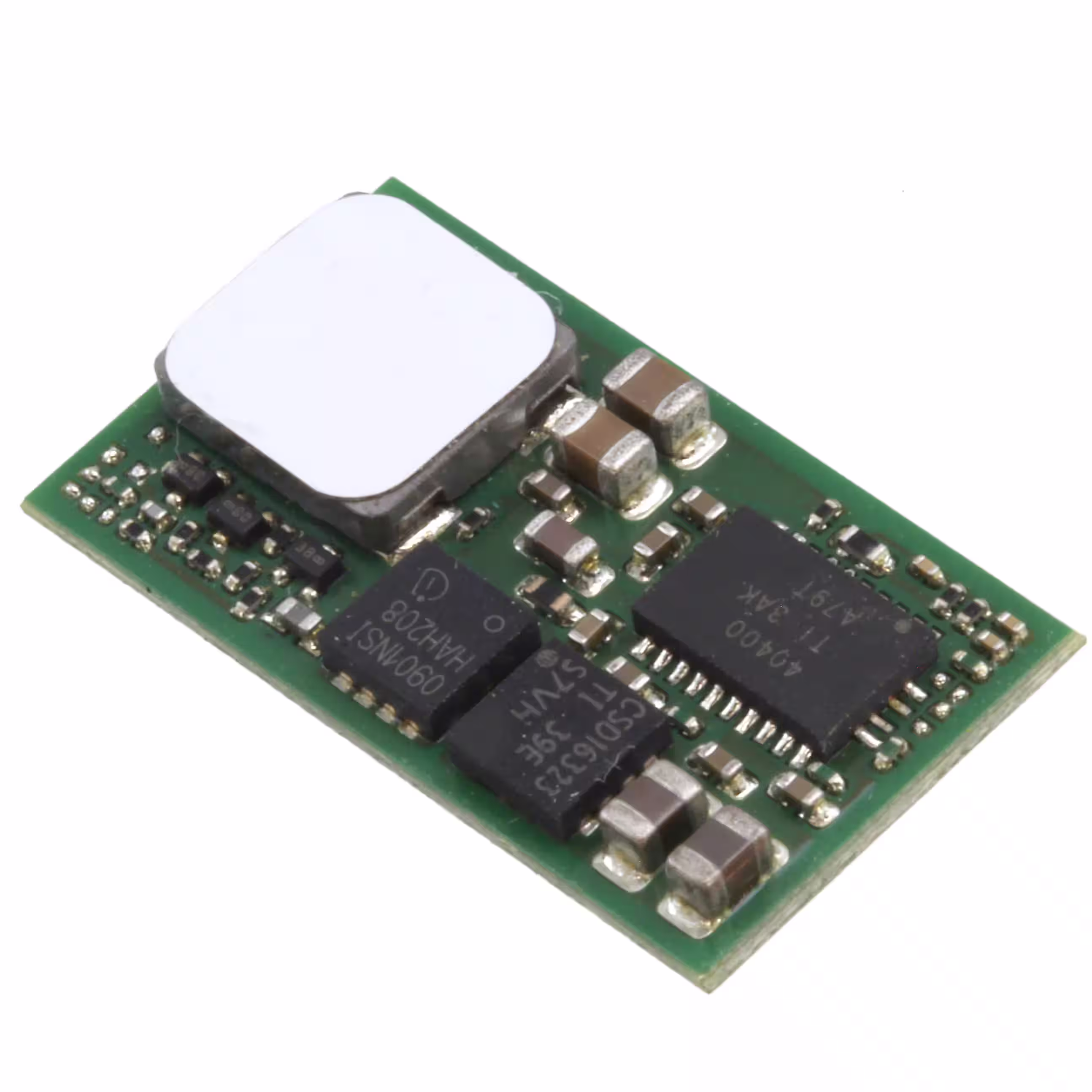

UNDT012A0X3-SRZDC DC CONVERTER 0.45-5.5V |
85 | - |
|
Технический лист |
SlimLynx™ | 16-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module, Digital | 1 | 3V | 14.4V | 0.45 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.12" H (20.3mm x 11.4mm x 3.0mm) | - | Enable, Active Low | - | - |
|
|
AM2DS-2415DH52ZDC DC CONVERTER +/-15V 2W |
20 | - |
|
Технический лист |
AM2DS-Z (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.76" L x 0.28" W x 0.37" H (19.5mm x 7.2mm x 9.5mm) | 7-SIP | - | CE | - |
|
|
AM2DS-051509DH52ZDC DC CONVERTER 15V -9V 2W |
8 | - |
|
Технический лист |
AM2DS-Z (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -9V | - | - | 67mA, 111mA | 2 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 83% | - | - | Through Hole | 0.76" L x 0.28" W x 0.37" H (19.5mm x 7.2mm x 9.5mm) | 7-SIP | - | CE | - |
|
|
VRB1224S-10WR3DC DC CONVERTER 24V 10W |
32 | - |
|
Технический лист |
VRB_S-10WR3 (10W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 417mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.43" L x 1.58" W x 1.09" H (61.8mm x 40.2mm x 27.7mm) | - | - | CE, UKCA | - |
|
|
EC4SAW-48S15HNDC/DC CONVERTER |
75 | - |
|
Технический лист |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Floating | CE | - |
|
PQB3-D12-S12-DDC DC CONVERTER 12V 3W |
14 | - |
|
Технический лист |
PQB3-D (3W) | 24-DIP Module, 10 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
