DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

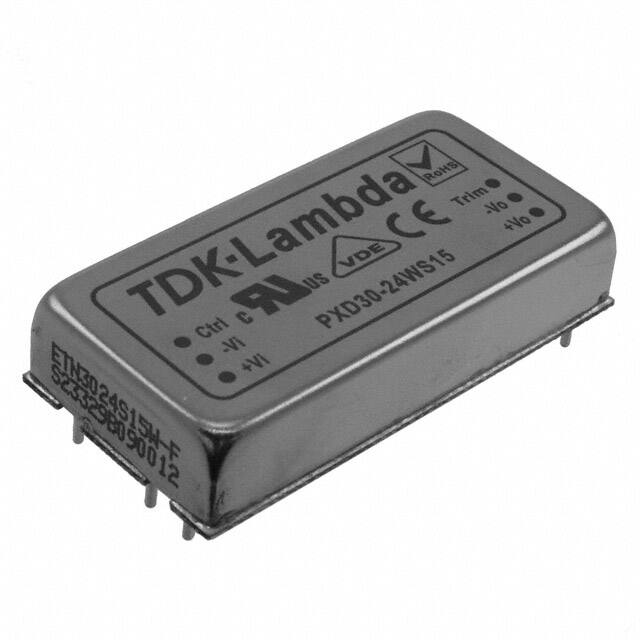

PXD30-24WS15DC DC CONVERTER 15V 30W |
13 | - |
|
Технический лист |
PXD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
CQB75-300S3V3-FDC/DC CONVERTER |
8 | - |
|
Технический лист |
CQB75-300S (75W) | Half Brick | Box | Active | Isolated Module | 1 | 180V | 450V | 3.3V | - | - | - | 15A | 50 W | 3 kV | ITE (Commercial) | Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 81.5% | - | - | Through Hole | 2.28" L x 2.20" W x 0.50" H (57.9mm x 55.9mm x 12.7mm) | Half Brick | Enable, Active High | CE | 62368-1 |
|
PXD30-24WS3P3DC DC CONVERTER 3.3V 30W |
2 | - |
|
Технический лист |
PXD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 60-1215NDC DC CONVERTER 24V 60W |
10 | - |
|
Технический лист |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
PXE30-24WS05DC DC CONVERTER 5V 30W |
8 | - |
|
Технический лист |
PXE (30W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 10V | 40V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|
JCK6024S15DC DC CONVERTER 15V 60W |
5 | - |
|
Технический лист |
JCK (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 4A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 91% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
AH01N-12DC DC CONVERTER -100V 1.5W |
3 | - |
|
Технический лист |
XP EMCO - AH (1.5W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -100V | - | - | - | 15mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
|
AH02N-12DC DC CONVERTER -200V 1.5W |
2 | - |
|
Технический лист |
XP EMCO - AH (1.5W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -200V | - | - | - | 7.5mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
|
AH02P-5DC DC CONVERTER 200V 1.5W |
2 | - |
|
Технический лист |
XP EMCO - AH (1.5W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 200V | - | - | - | 7.5mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
CHS4002415DC DC CONVERTER 15V 398W |
10 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 26.5A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
CHS4004815DC DC CONVERTER 15V 398W |
6 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 15V | - | - | - | 26.5A | 398 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|

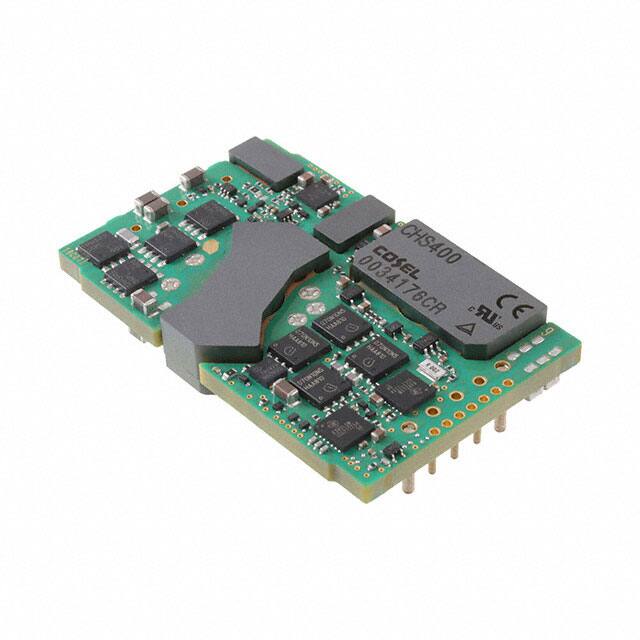

CHS4004848DC DC CONVERTER 48V 403W |
4 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 48V | - | - | - | 8.4A | 403 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
TEN 40-2423WIDC DC CONVERTER +/-15V 41W |
15 | - |
|
Технический лист |
TEN 40WI (40W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1.35A, 1.35A | 41 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.10" W x 0.40" H (50.8mm x 27.9mm x 10.2mm) | Module | - | - | - |
|
AG05P-5DC DC CONVERTER 500V 1W |
14 | - |
|
Технический лист |
XP EMCO - AG (1W) | 5-SMD Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 2mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Surface Mount | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | - | 62368-1 |
|
RP40-240512TGDC DC CONVERTER 5V +/-12V 40W |
11 | - |
|
Технический лист |
POWERLINE RP40-G (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 18V | 36V | 5V | 12V | -12V | - | 6A, 400mA, 400mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RP40-240515TGDC DC CONVERTER 5V +/-15V 40W |
4 | - |
|
Технический лист |
POWERLINE RP40-G (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 18V | 36V | 5V | 15V | -15V | - | 6A, 300mA, 300mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
TEN 40-2422WIRDC DC CONVERTER +/-12V 40W |
22 | - |
|
Технический лист |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.666A, 1.666A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TEN 40-7213WIRDC DC CONVERTER 15V 40W |
18 | - |
|
Технический лист |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 2.666A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TEN 40-2423WIRDC DC CONVERTER +/-15V 40W |
18 | - |
|
Технический лист |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1.333A, 1.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
MGDDI-20-R-EDC DC CONVERTER 12V 12V 20W |
7 | - |
|
Технический лист |
MGDDI-20 | 16-DIP Module | Bulk | Active | Isolated Module | 2 | 12V | 160V | 12V | 12V | - | - | 825mA, 825mA | 20 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 100°C | 90% | - | - | Through Hole | 1.58" L x 1.03" W x 0.50" H (40.1mm x 26.1mm x 12.7mm) | - | - | - | - |
