DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

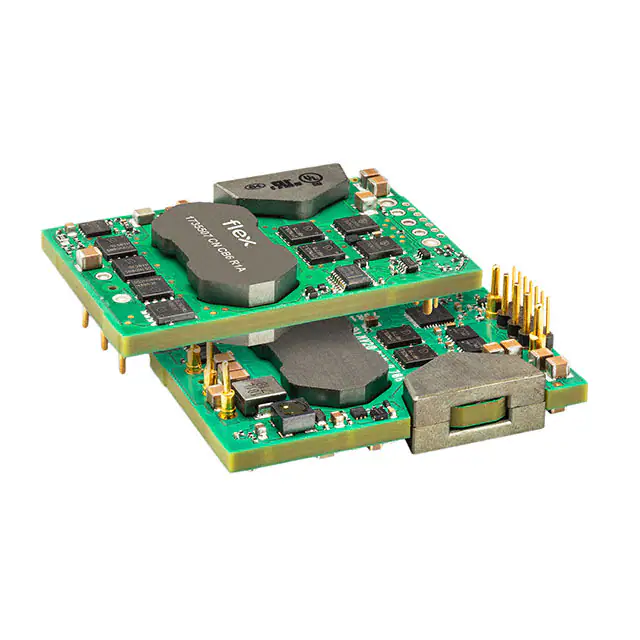

BMR4580111/002DC DC CONVERTER 12V 650W |
20 | - |
|
Технический лист |
BMR458 (650W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 40V | 60V | 12V | - | - | - | 54.2A | 650 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | - | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TEN 60-2418WIRDC DC CONVERTER 48V 60W |
10 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
RDF5072WS48DC DC CONVERTER 48V 50W |
4 | - |
|
Технический лист |
RDF50 (50W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 1.05A | 50 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | - | - |
|
PRQE50W-E12-S12-DDC-DC ISOLATED, 50 W, 9~75 VDC I |
25 | - |
|
Технический лист |
PRQE50W-D (50W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 4.17A | 50 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CE, cURus, UKCA | 62368-1 |
|
RDC40110S15DC DC CONVERTER 15V 40W |
10 | - |
|
Технический лист |
RDC (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 55V | 176V | 15V | - | - | - | 2.65A | 40 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.42" H (50.8mm x 40.6mm x 10.7mm) | - | Enable, Active High | - | 62368-1 |
|
RP40-2424DFR/PDC DC CONVERTER +/-24V 40W |
11 | - |
|
Технический лист |
POWERLINE RP40-FR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 833mA, 833mA | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | 6-DIP Module | Enable, Active High | - | - |
|
TEP 40-7212UIRDC DC CONVERTER 12V 40W |
6 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 3.33A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
|
TEP 40-3612UIRDC DC CONVERTER 12V 40W |
3 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 3.33A | 40 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
AH05P-5DC DC CONVERTER 500V 1.5W |
7 | - |
|
Технический лист |
XP EMCO - AH (1.5W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 3mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
REM30-4812SWDC DC CONVERTER 12V 30W |
9 | - |
|
Технический лист |
MEDLINE REM30-W (30W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
REM30-2415SWDC DC CONVERTER 15V 30W |
6 | - |
|
Технический лист |
MEDLINE REM30-W (30W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
REM30-4824SWDC DC CONVERTER 24V 30W |
3 | - |
|
Технический лист |
MEDLINE REM30-W (30W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
CQB200-24S28NBRICK DC-DC CQB200-24S28N |
7 | - |
|
Технический лист |
CQB200 (200W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 7.14A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | 62368-1 |
|
TEP 75-4818WIDC DC CONVERTER 48V 77W |
11 | - |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 1.6A | 77 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
|
TEP 75-4812WIDC DC CONVERTER 12V 76W |
6 | - |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.3A | 76 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
TEP 75-2411WIDC DC CONVERTER 5V 75W |
2 | - |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
ICH5024WS05DC DC CONVERTER 5V 50W |
8 | - |
|
Технический лист |
ICH (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | - | 62368-1 |
|
Q03-12DC DC CONVERTER 300V 500MW |
16 | - |
|
Технический лист |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 300V | - | - | - | 1.667mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
RP60-2412SGDC DC CONVERTER 12V 60W |
6 | - |
|
Технический лист |
POWERLINE RP60-G (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 40°C | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
AEE02H18-LDC DC CONVERTER 24V 50W |
10 | - |
|
Технический лист |
AEE (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm) | - | - | - | - |
