DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 60-2411NDC DC CONVERTER 5V 60W |
18 | - |
|
Технический лист |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
CHS4004810DC DC CONVERTER 10V 400W |
6 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 10V | - | - | - | 40A | 400 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
A05N-12DC DC CONVERTER -500V 1W |
2 | - |
|
Технический лист |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -500V | - | - | - | 2mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
TEN 60-4811DC DC CONVERTER 5V 60W |
10 | - |
|
Технический лист |
TEN 60 (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | Module | - | - | - |
|

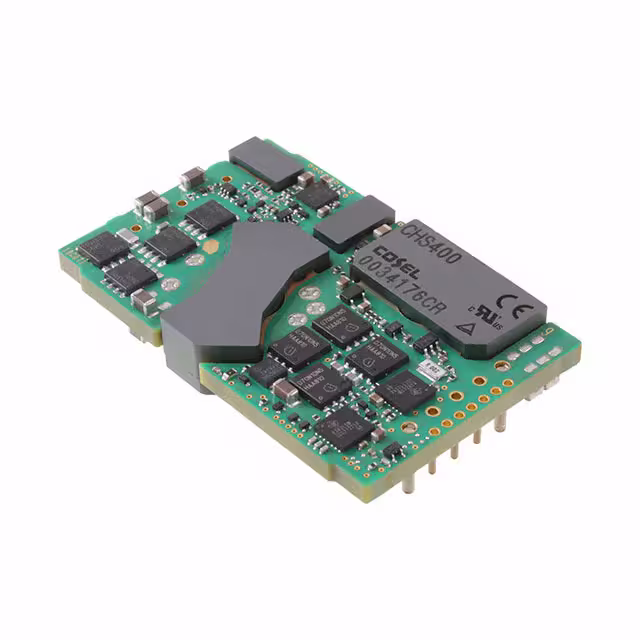

CHS4004824DC DC CONVERTER 24V 396W |
5 | - |
|
Технический лист |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
MGDSK25HCDC DC CONVERTER |
4 | - |
|
Технический лист |
MGDK25 (25W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.50" H (50.8mm x 50.8mm x 12.7mm) | - | - | - | - |
|
RP40-2412SFR/PDC DC CONVERTER 12V 40W |
12 | - |
|
Технический лист |
POWERLINE RP40-FR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
PXD60-48WS24DC DC CONVERTER 24V 60W |
4 | - |
|
Технический лист |
PXD60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
PXD30-48WD12DC DC CONVERTER +/-12V 30W |
15 | - |
|
Технический лист |
PXD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

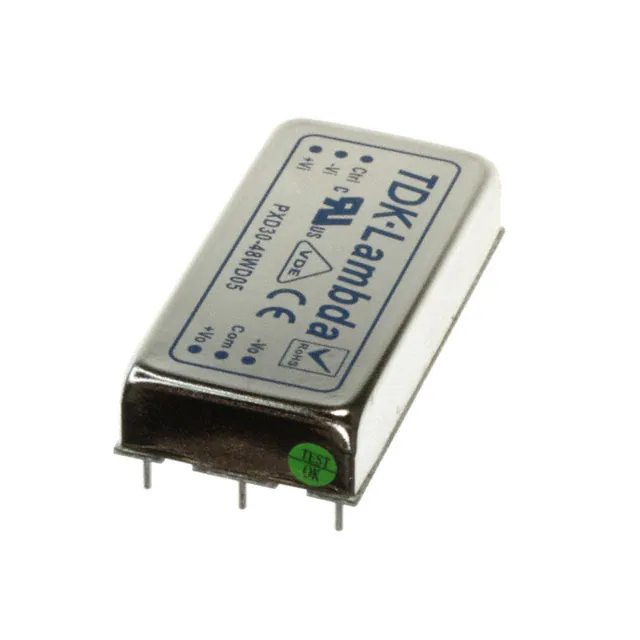

PXD30-48WD05DC DC CONVERTER +/-5V 30W |
7 | - |
|
Технический лист |
PXD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

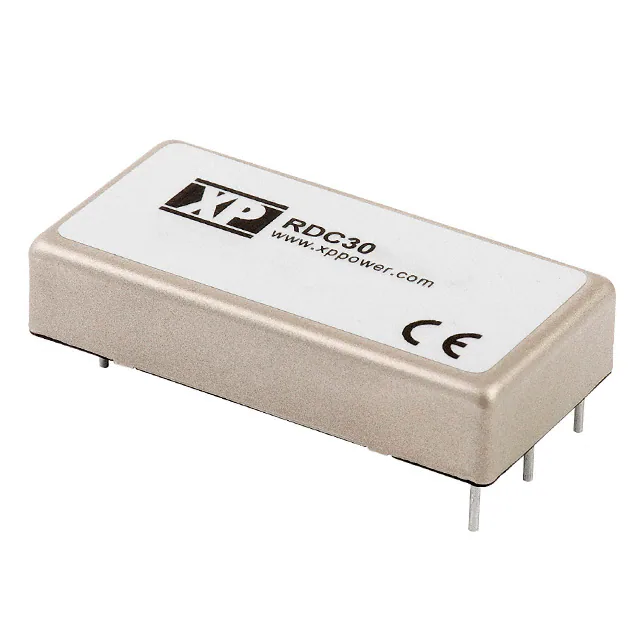

RDC3072S15DC DC CONVERTER 15V 30W |
16 | - |
|
Технический лист |
RDC (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 140V | 15V | - | - | - | 2A | 30 W | 1.5 kV | Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
TEN 60-2422NDC DC CONVERTER +/-12V 60W |
19 | - |
|
Технический лист |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
RP40-2412DGWDC DC CONVERTER +/-12V 40W |
4 | - |
|
Технический лист |
POWERLINE RP40-GW (40W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.67A, 1.67A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 55°C | 86% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
DHS50A15DC DC CONVERTER 15V 51W |
19 | - |
|
Технический лист |
DHS (50W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 60V | 160V | 15V | - | - | - | 3.4A | 51 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|
DHS50A24DC DC CONVERTER 24V 50W |
2 | - |
|
Технический лист |
DHS (50W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 60V | 160V | 24V | - | - | - | 2.1A | 50 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|
GQA2W005A240V-007-RDC DC CONVERTER 24V 120W |
15 | - |
|
Технический лист |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 5A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 87% | - | - | Through Hole | 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | - |
|
|
GQA2W008A150V-007-RDC DC CONVERTER 15V 120W |
13 | - |
|
Технический лист |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 8A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | - |
|
TEP 40-3615UIRDC DC CONVERTER 24V 40W |
21 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 1.67A | 40 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
|
TEP 40-7215UIRDC DC CONVERTER 24V 40W |
2 | - |
|
Технический лист |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 1.67A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, cURus | - |
|
CQB100W-48S24DC DC CONVERTER 24V 100W |
9 | - |
|
Технический лист |
CQB100 (100W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 4.17A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | - | 60950-1 |
