DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Цена | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 60-2425WIRDC DC CONVERTER +/-24V 60W |
19 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
DHS100A12DC DC CONVERTER 12V 101W |
3 | - |
|
Технический лист |
DHS (100W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 60V | 160V | 12V | - | - | - | 8.4A | 101 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|
|
DHS100B05DC DC CONVERTER 5V |
2 | - |
|
Технический лист |
DHS (100W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 200V | 400V | 5V | - | - | - | 20A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 82% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|
MGDSK35HBDC DC CONVERTER |
5 | - |
|
Технический лист |
MGDK35 (35W) | 17-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7A | 23 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 83% | - | - | Through Hole | 2.88" L x 1.90" W x 0.49" H (73.3mm x 48.3mm x 12.8mm) | - | - | - | - |
|
|
MGDSK35HCDC DC CONVERTER |
4 | - |
|
Технический лист |
MGDK35 (35W) | 17-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 7A | 35 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 83% | - | - | Through Hole | 2.88" L x 1.90" W x 0.49" H (73.3mm x 48.3mm x 12.8mm) | - | - | - | - |
|
|
TEN 60-2422WIRDC DC CONVERTER +/-12V 60W |
8 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
|
TEN 60-2411WIRDC DC CONVERTER 5V 60W |
6 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
|
TEN 60-4811WIRDC DC CONVERTER 5V 60W |
9 | - |
|
Технический лист |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) | - | - | - | - |
|
CQB75-300S12-FDC/DC CONVERTER |
3 | - |
|
Технический лист |
CQB75-300S (75W) | Half Brick | Box | Active | Isolated Module | 1 | 180V | 450V | 12V | - | - | - | 6.25A | 75 W | 3 kV | ITE (Commercial) | Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 2.20" W x 0.50" H (57.9mm x 55.9mm x 12.7mm) | Half Brick | Enable, Active High | CE | 62368-1 |
|

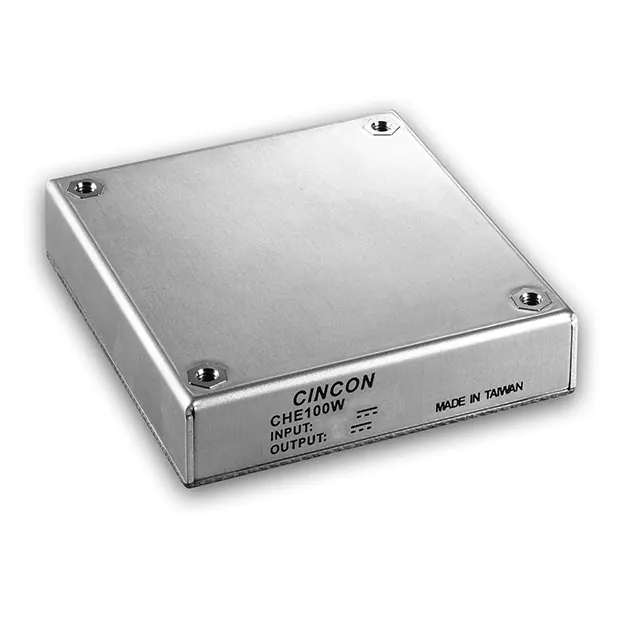

CHE100W-48S24DC DC CONVERTER 24V 101W |
22 | - |
|
Технический лист |
CHE100W (100W) | Half Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 4.2A | 101 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE | 60950-1 |
|
|
CHE100W-48S05DC DC CONVERTER 5V 100W |
12 | - |
|
Технический лист |
CHE100W (100W) | Half Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE | 60950-1 |
|
Q05-5CDC DC CONVERTER 500V 500MW |
12 | - |
|
Технический лист |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 1mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output, Remote On/Off | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
GQA2W008A150V-0P7-RDC DC CONVERTER 15V 120W |
10 | - |
|
Технический лист |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 8A | 120 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | - |
|
A10P-12DC DC CONVERTER 1000V 1W |
4 | - |
|
Технический лист |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 1000V | - | - | - | 1mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
PRM48JF480T500A00DC DC CONVERTER 48V 500W |
23 | - |
|
Технический лист |
VI Chip® PRM® (500W) | Module | Tray | Active | Pre-Regulator Module | 1 | 45V | 55V | 48V | - | - | - | 10.42A | 500 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.8% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
CHB150W-24S12NDC DC CONVERTER 12V 150W |
11 | - |
|
Технический лист |
CHB150W (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 12.5A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
|
CHB150W-24S15DC DC CONVERTER 15V 150W |
9 | - |
|
Технический лист |
CHB150W (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 10A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB150W-48S15DC DC CONVERTER 15V 150W |
8 | - |
|
Технический лист |
CHB150W (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 10A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB150W-24S05NDC DC CONVERTER 5V 150W |
8 | - |
|
Технический лист |
CHB150W (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 30A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
CHB150W8-36S48DC DC CONVERTER 48V 150W |
8 | - |
|
Технический лист |
CHB150W8 (150W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 3.13A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
